![](1atn.jpg)

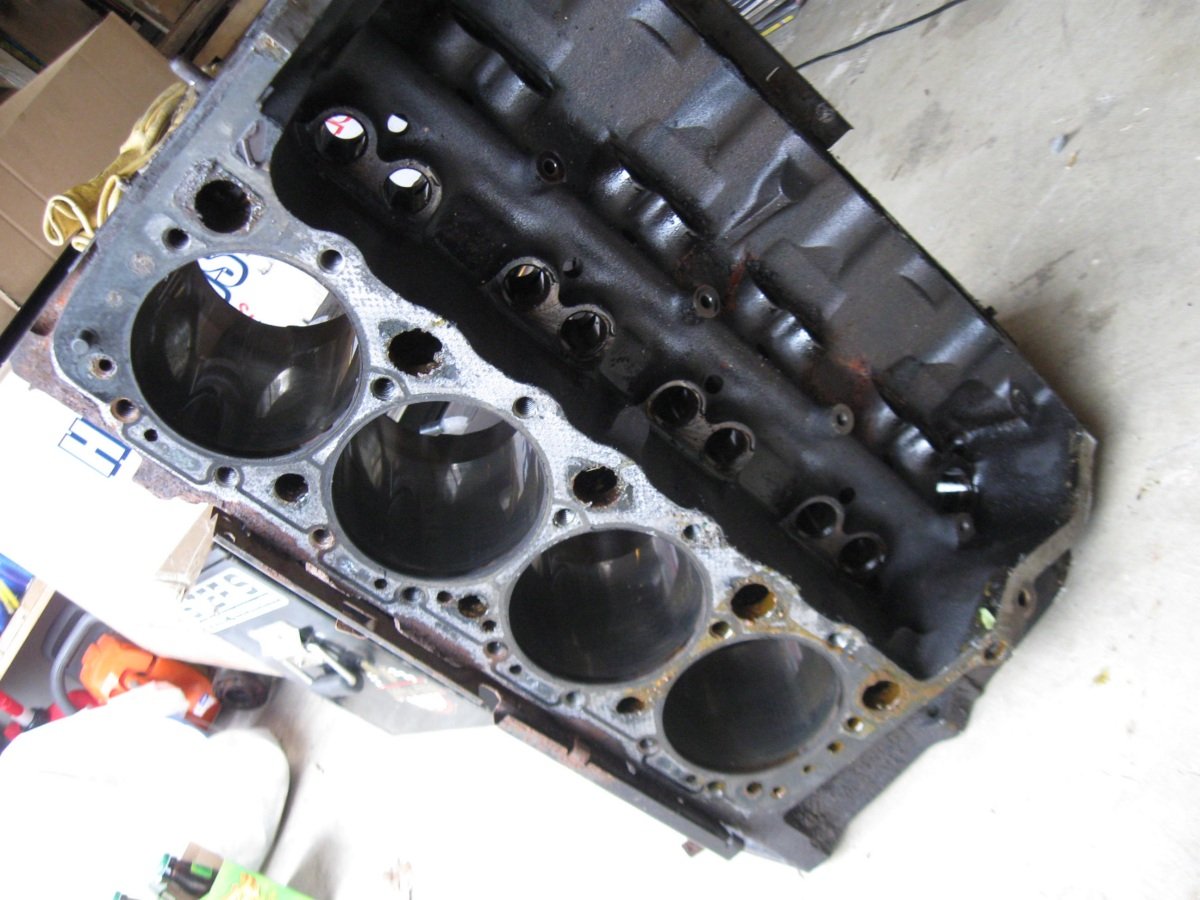

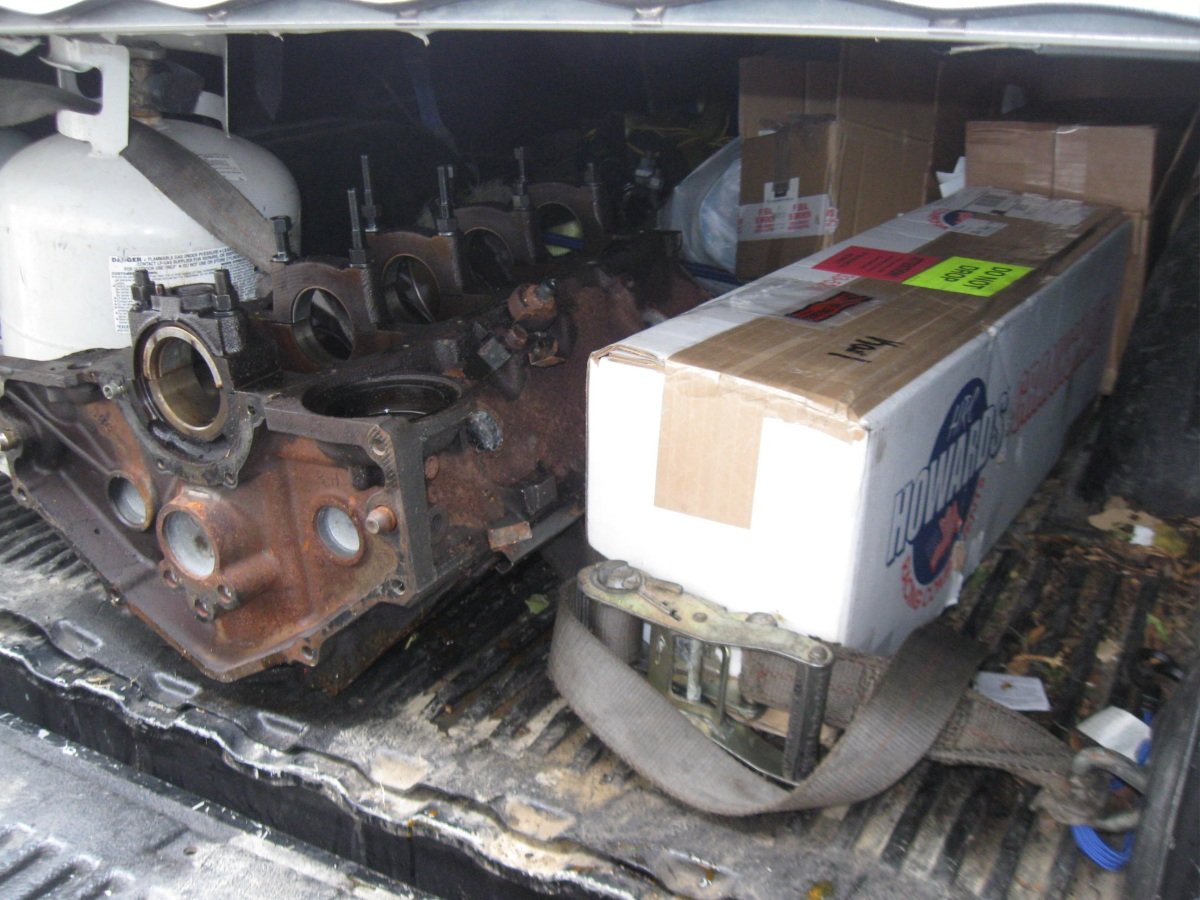

The core is from Crazy Ray's junk yard. It was only yesterday
that it was a full LT1 engine. Today it is a bare block.
|

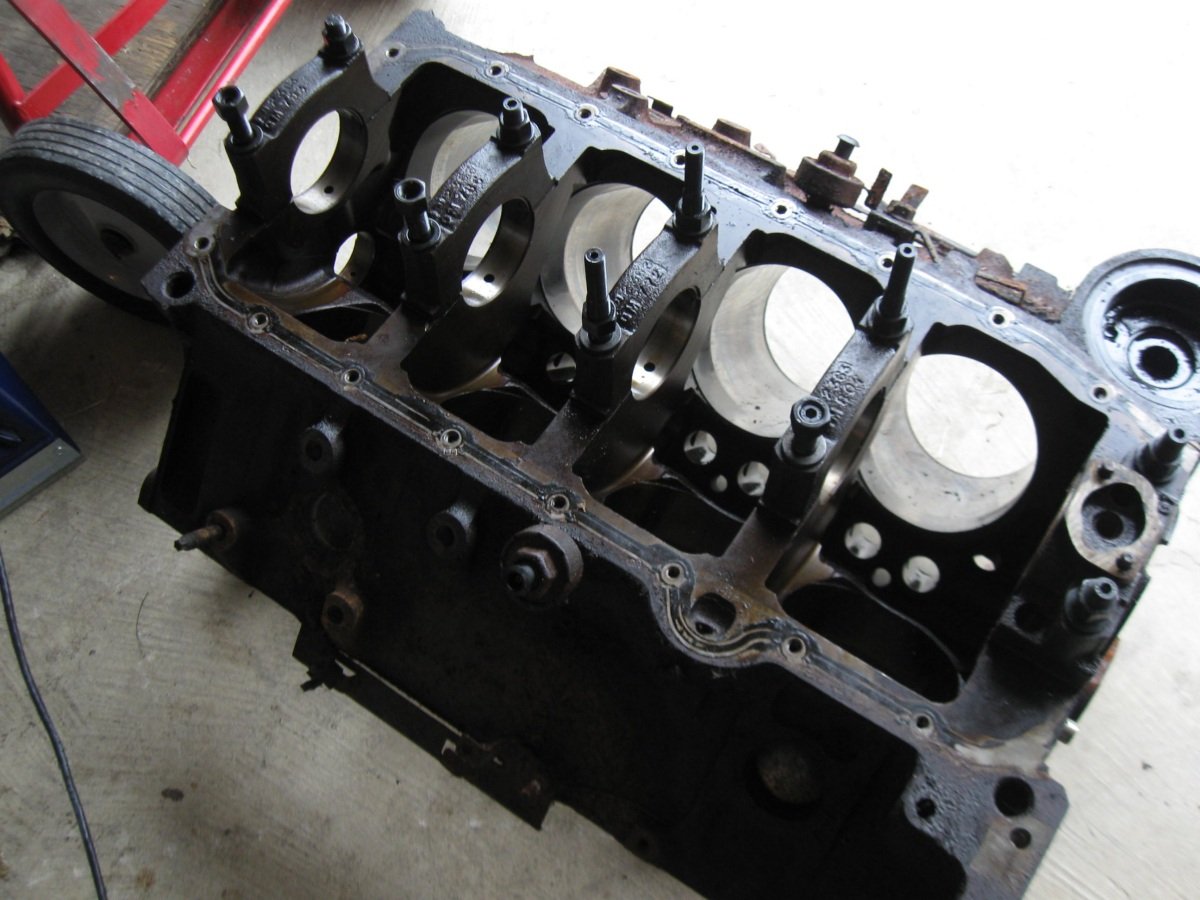

![](1btn.jpg)
ARP and Milodon main studs and stock main caps.
|
![](1etn.jpg)

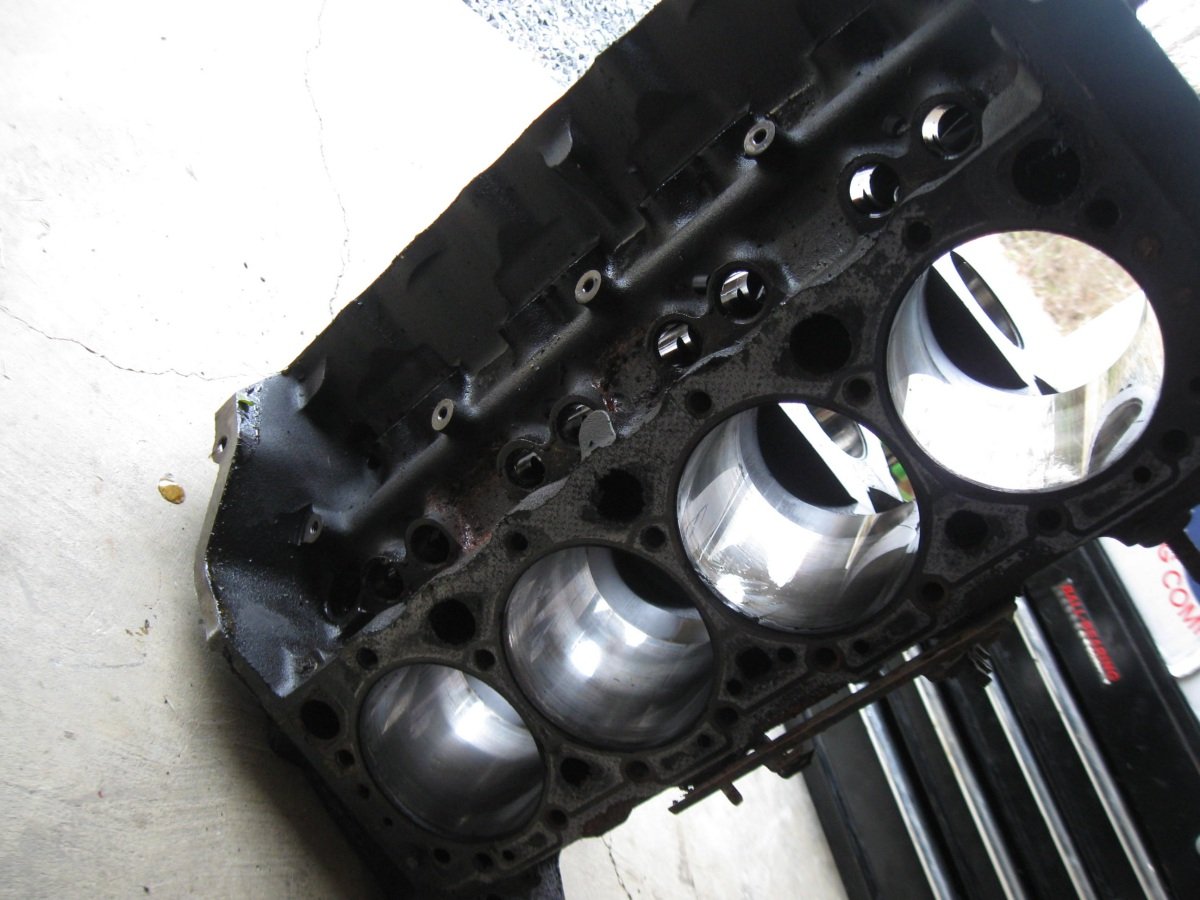

Another view of the block
|

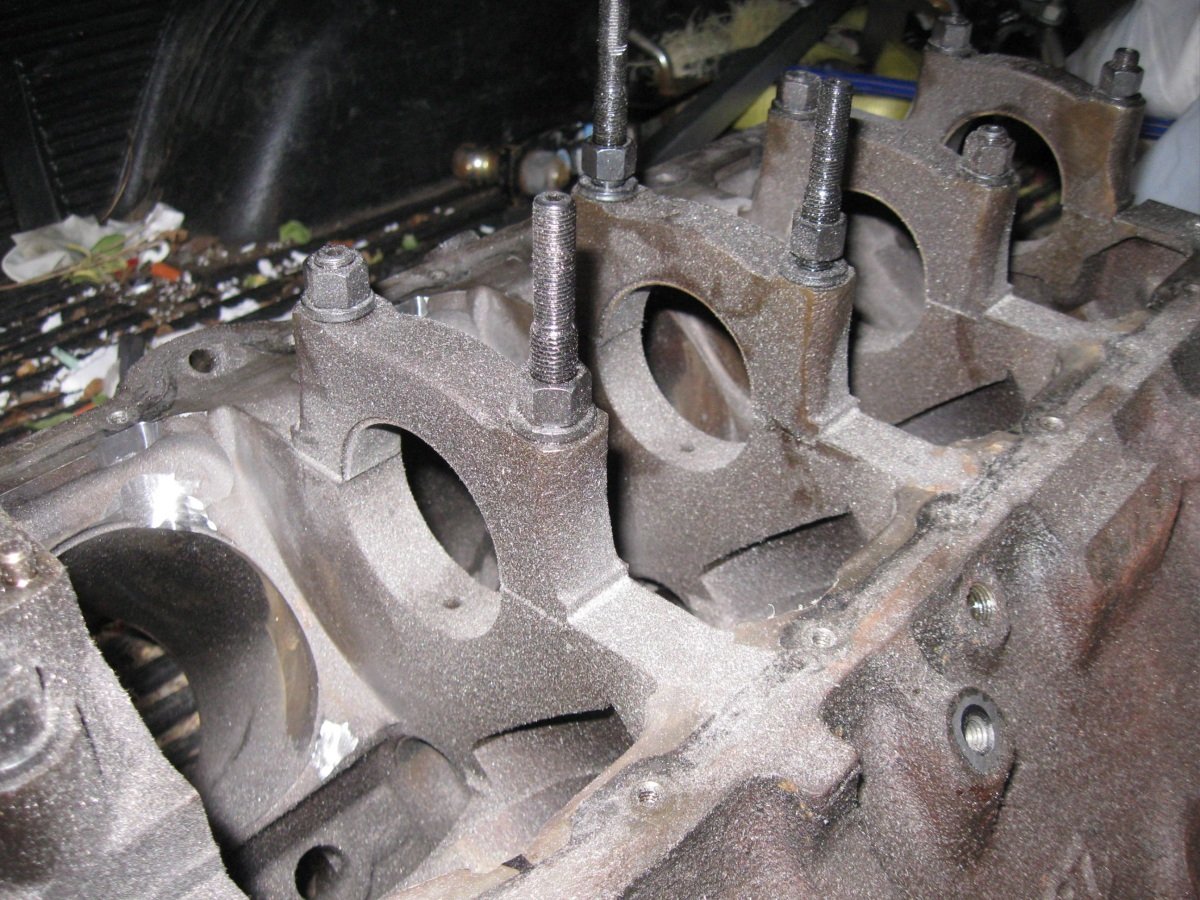

![](clearancetn.jpg)
Grinding dust everywhere. I clearanced the block in areas
where the rods may hit.
|
![](cranktn.jpg)
Directly out of the box..here is the 3.875" stroke crankshaft
from Howard's Cams.
|
![](crank1tn.jpg)
Wiped up a little bit with brakeclean and oil.
|
![](crank2tn.jpg)

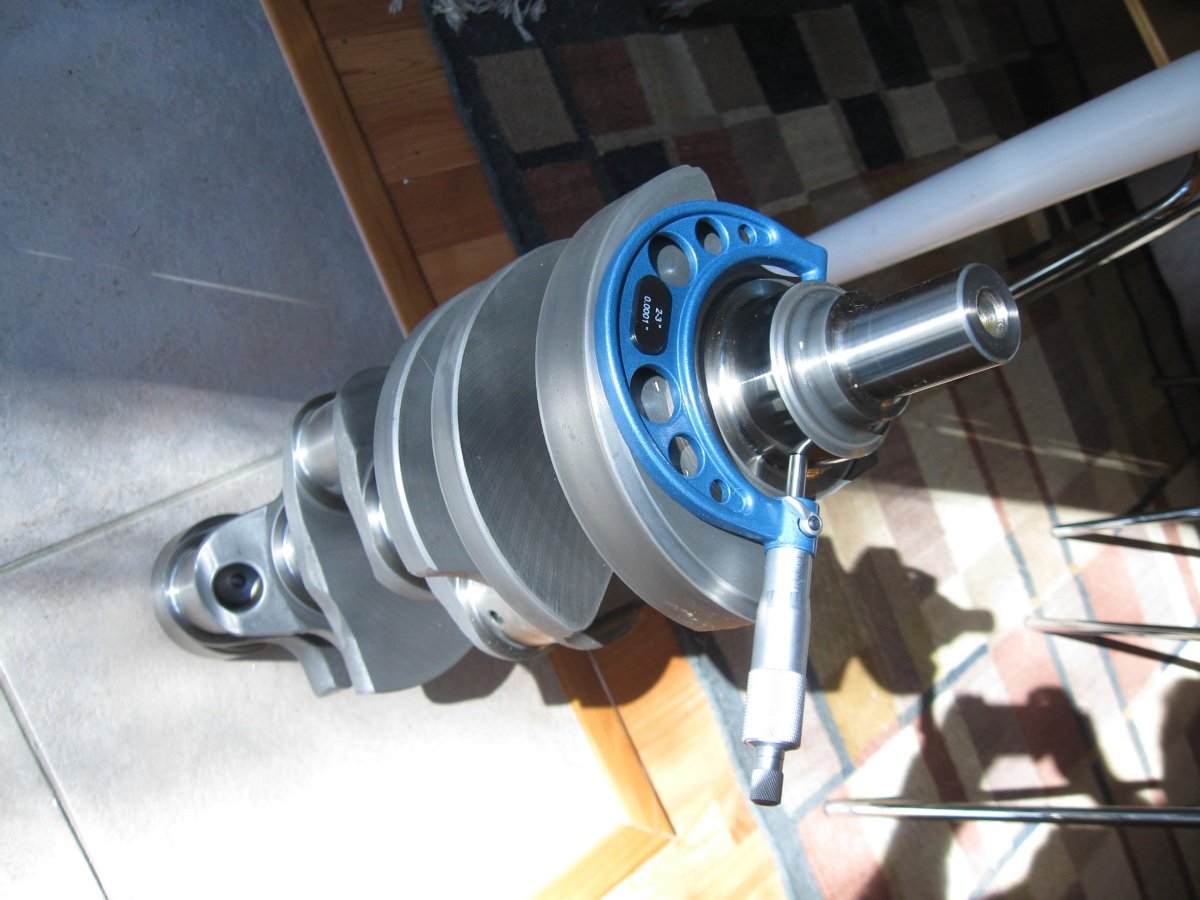

I measured all the mains and rods prior to sending to the balance
shop.
|
![](balance1tn.jpg)

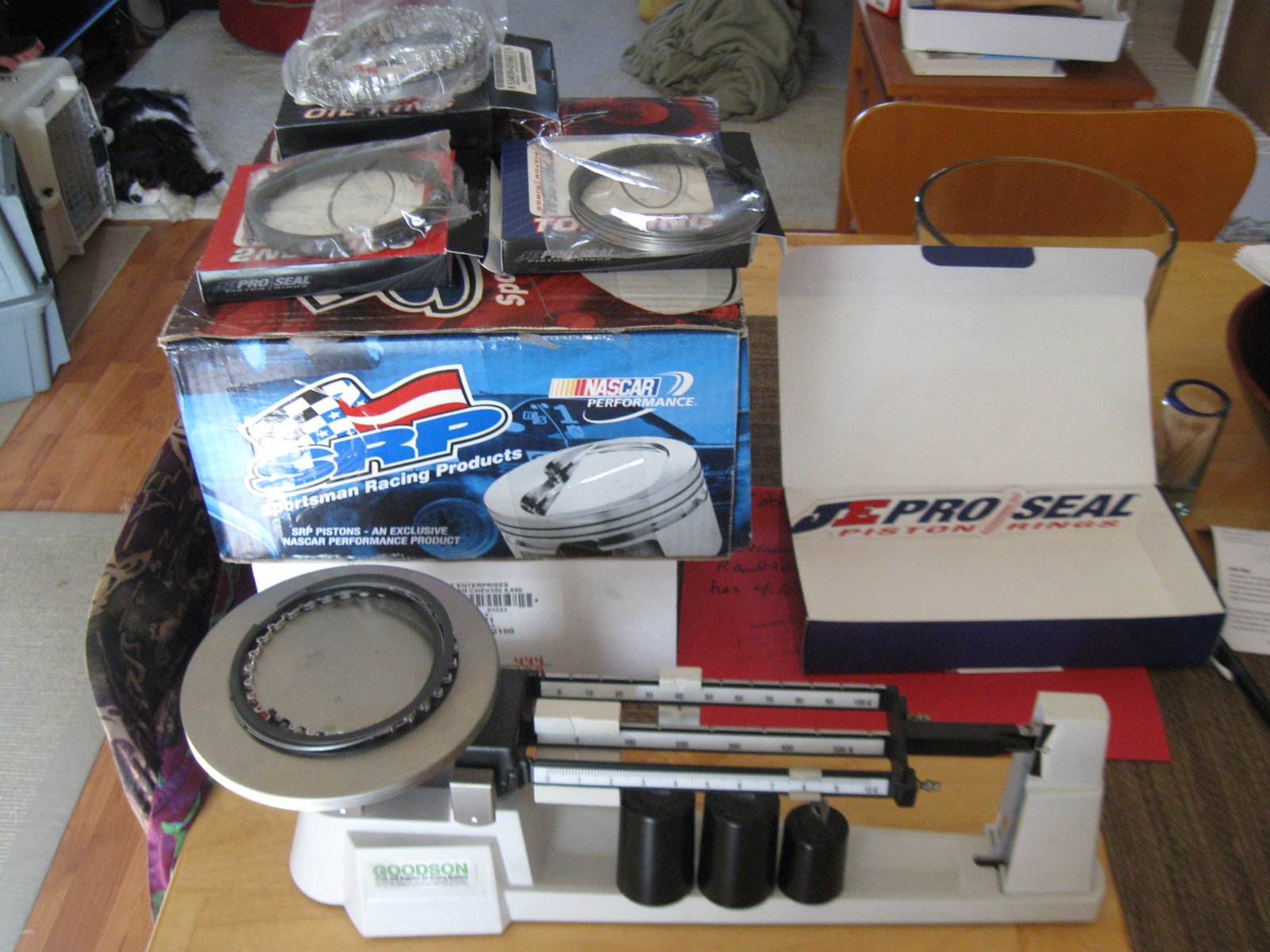

5.85" H-beam rods arrived. Here we weigh things to call
to the balance shop.
|
![](balance2tn.jpg)

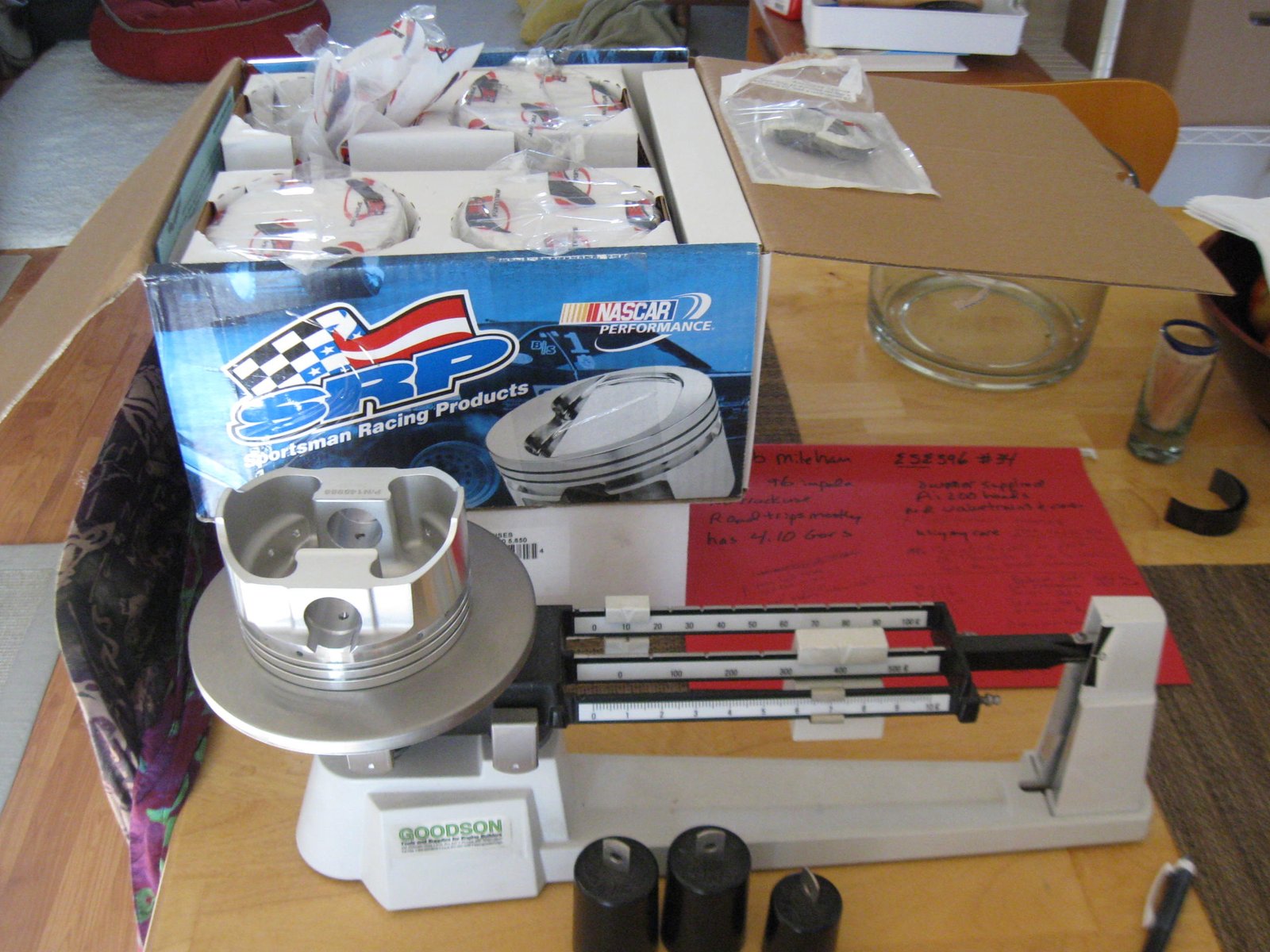

All pistons are within 1 gram. (But the rods are from 631 to
633 grams and so I'll buff off some weight on the rods to make them
all 631).
|

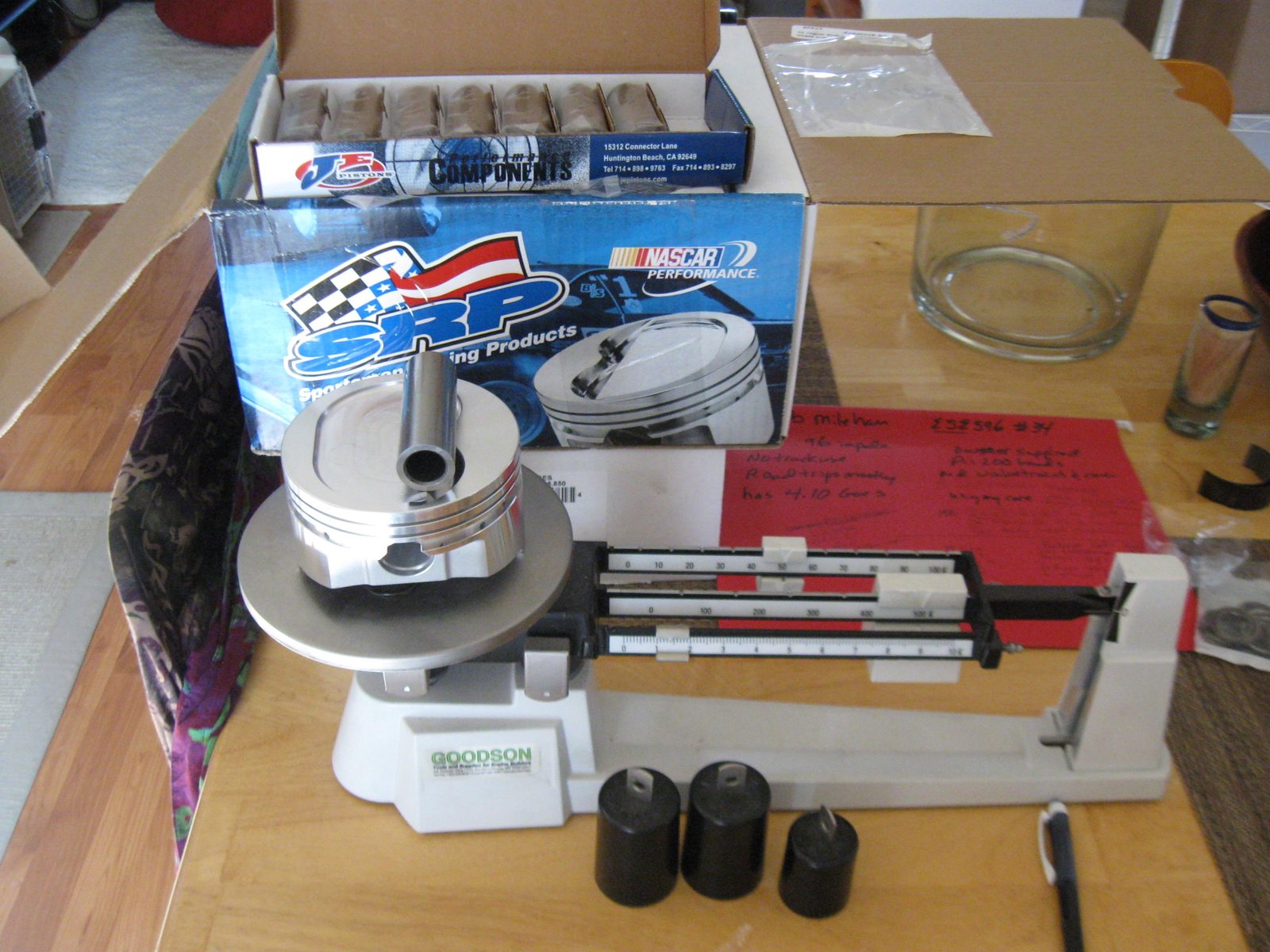

![](balance3tn.jpg)
I weigh things individually and also as a group just as a double
check.
|
![](2btn.jpg)

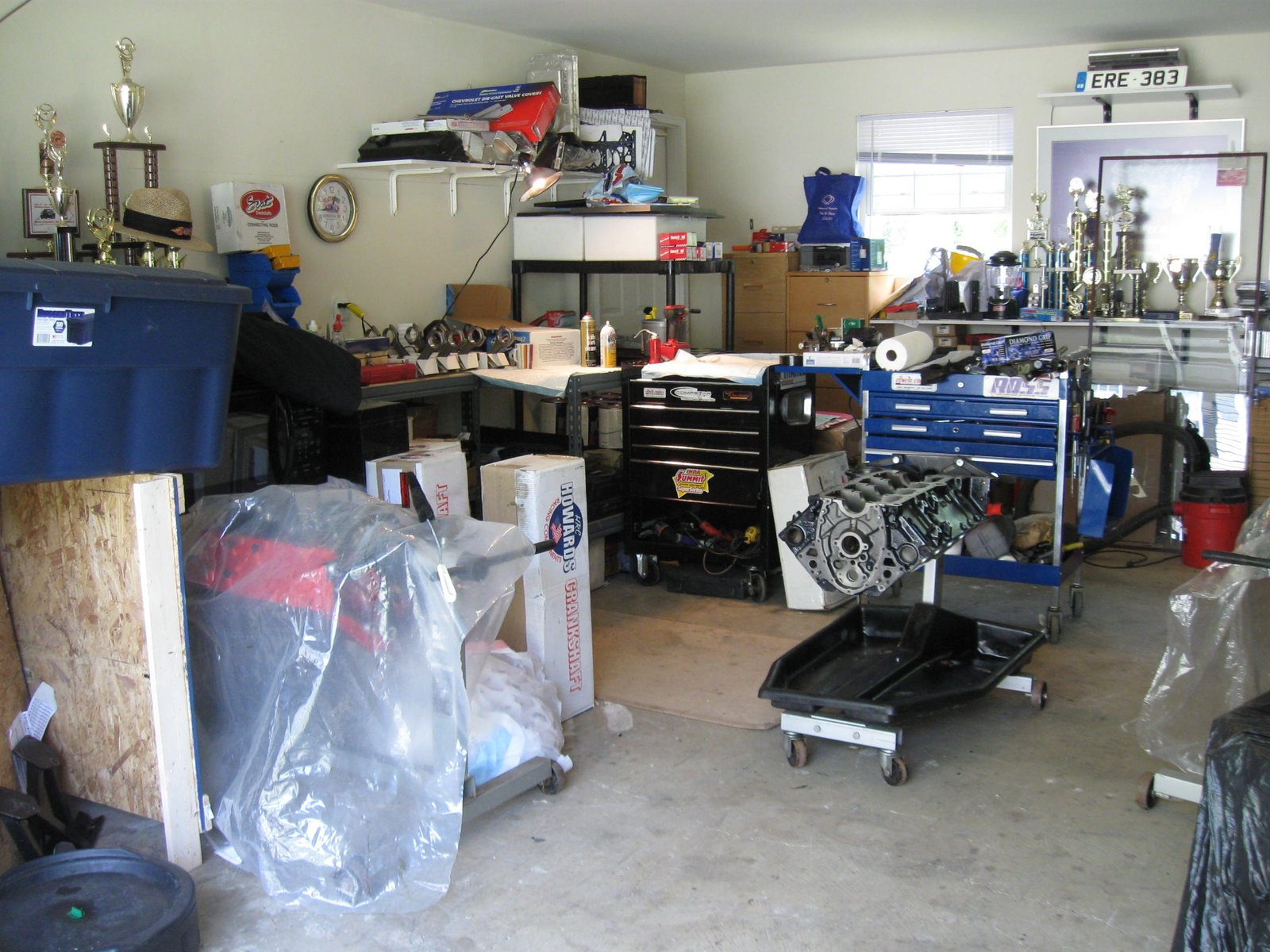

More work on the motor...here is a broad view of the 399 Race Shop.
|
![](2ctn.jpg)

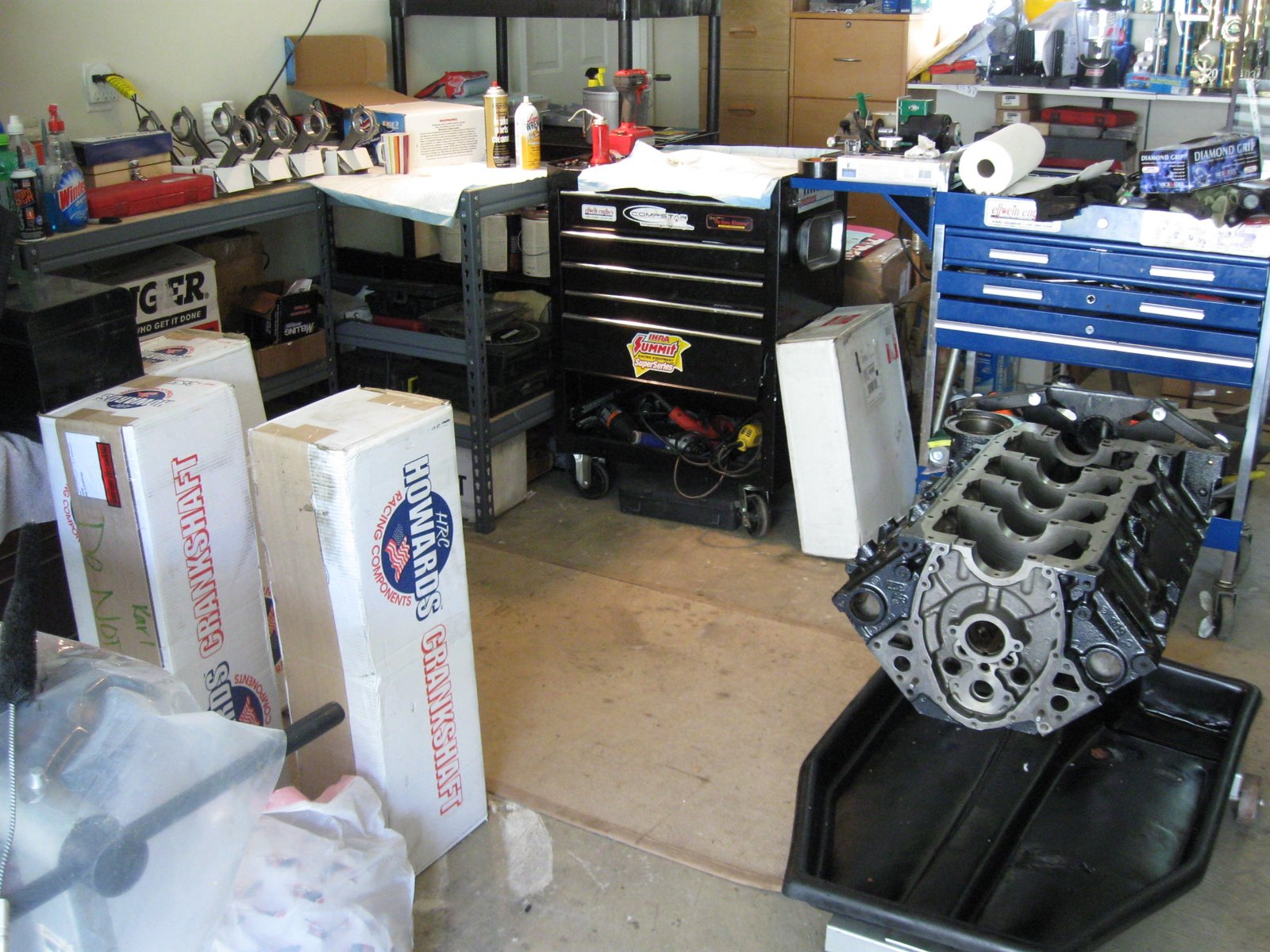

Block is now painted black with POR15
|

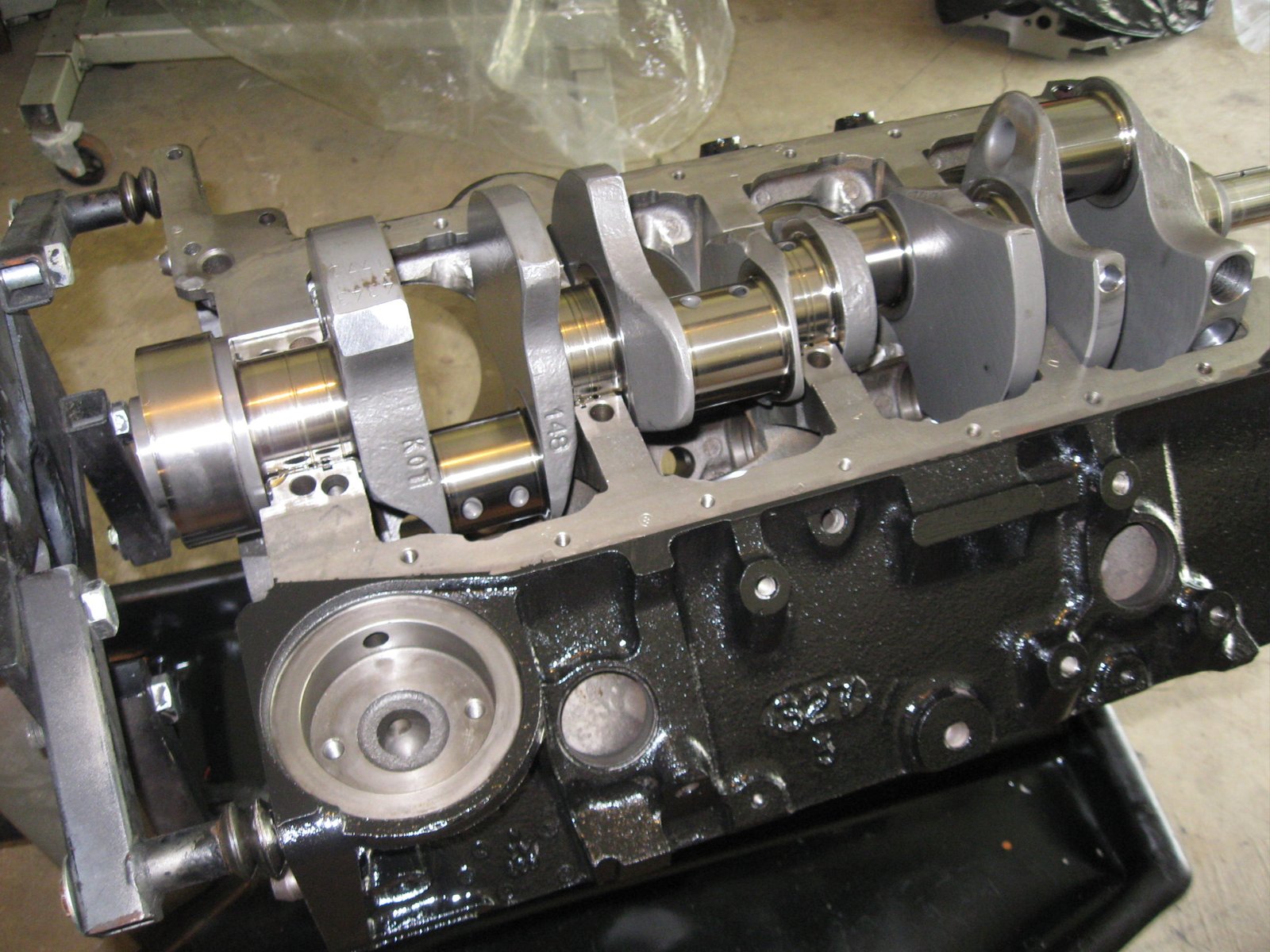

![](2atn.jpg)
Crankshaft set in place.
|
![](2ftn.jpg)

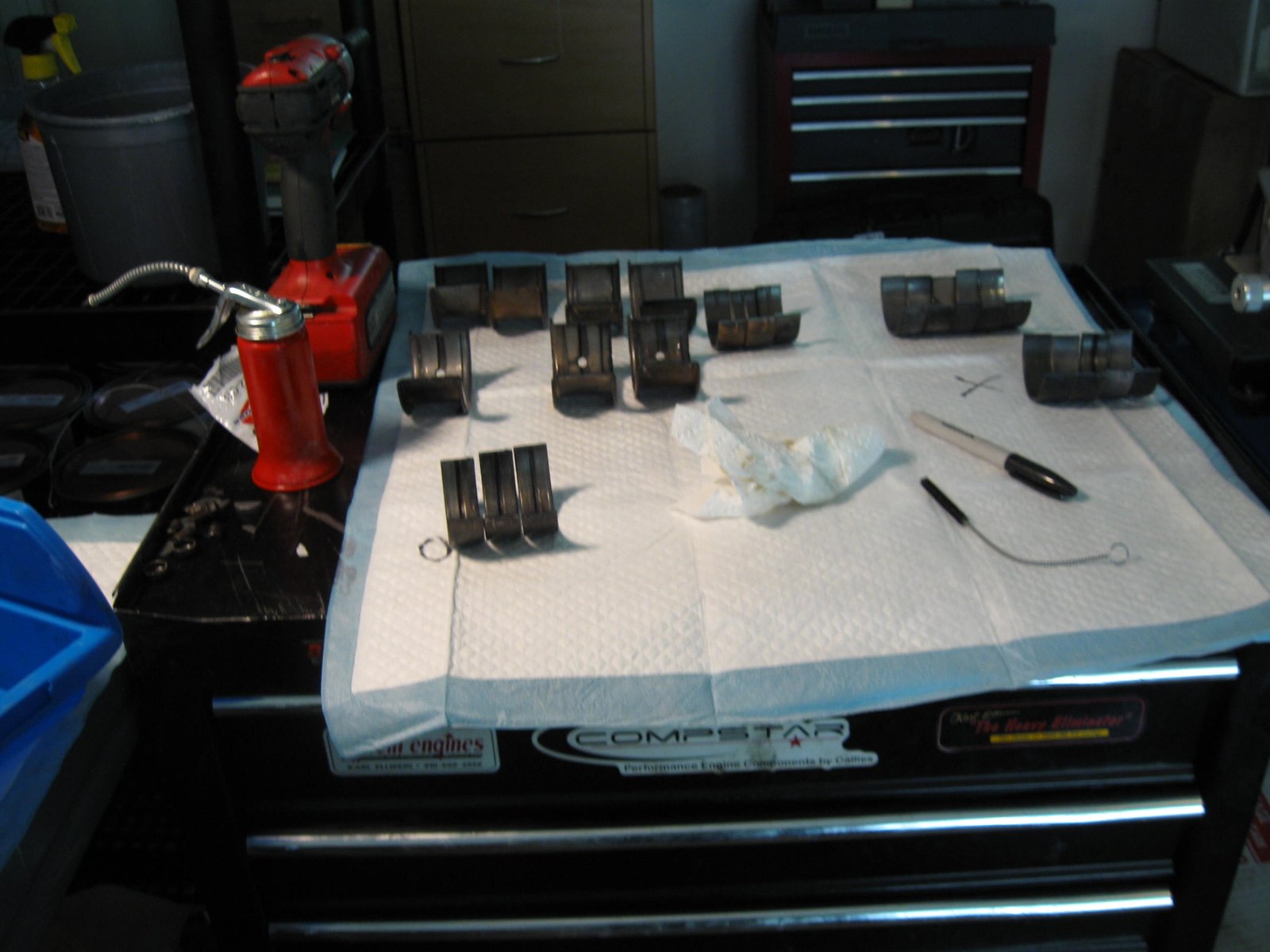

Various size bearings.
|
![](2etn.jpg)

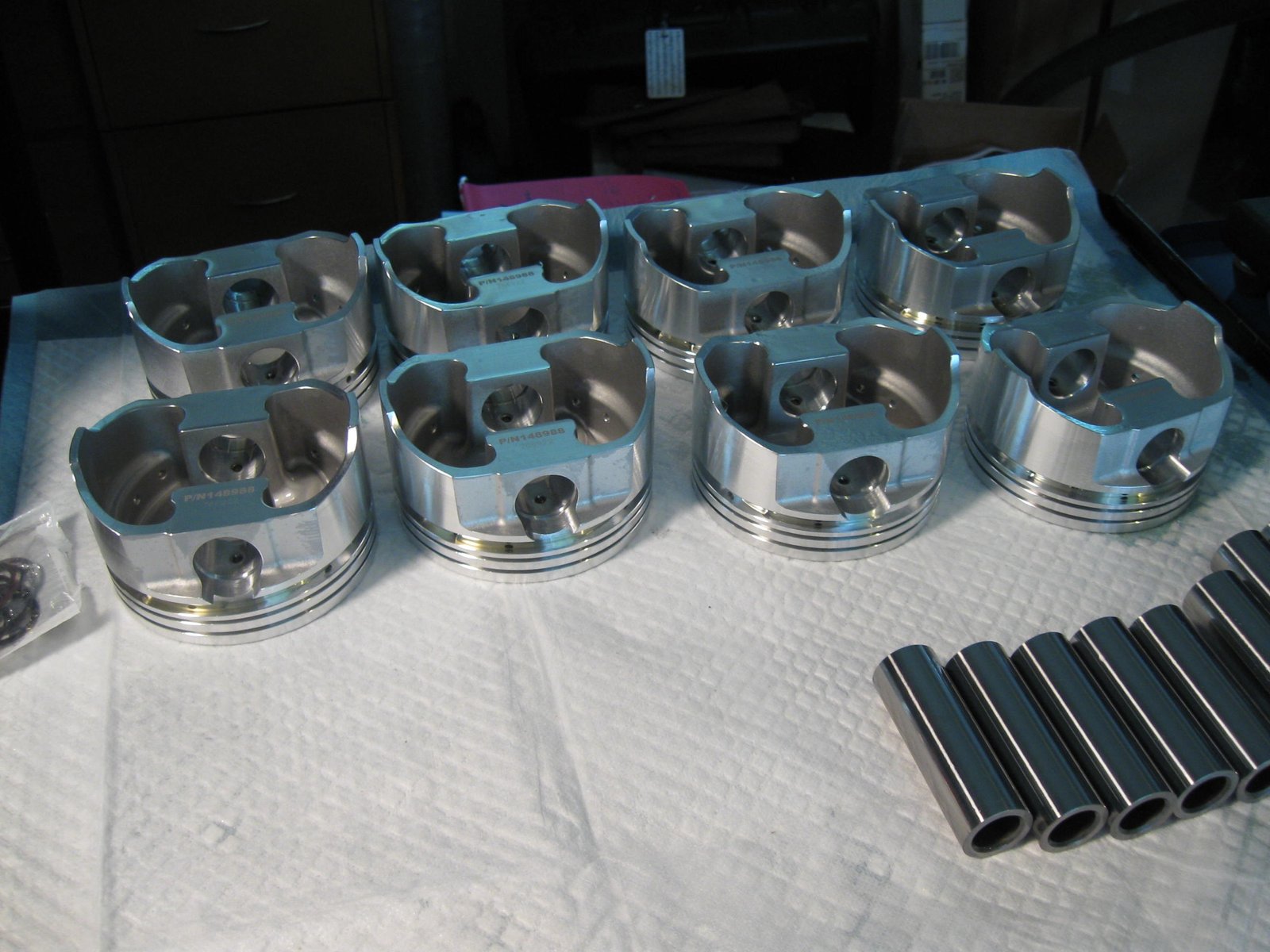

JE-SRP pistons.
|
![](2gtn.jpg)

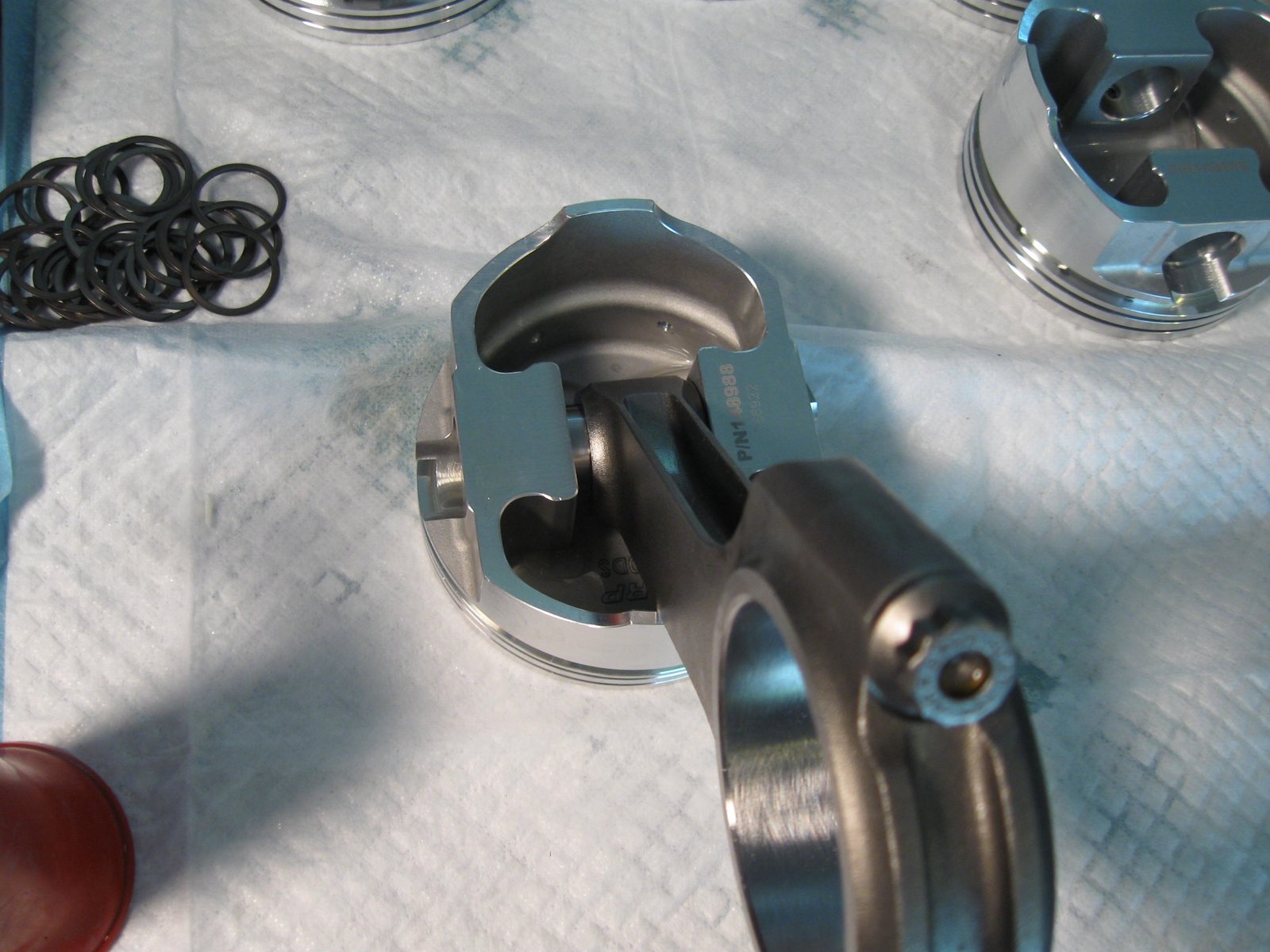

5.85" SCAT H-beam rod and SRP piston.
|
![](2htn.jpg)

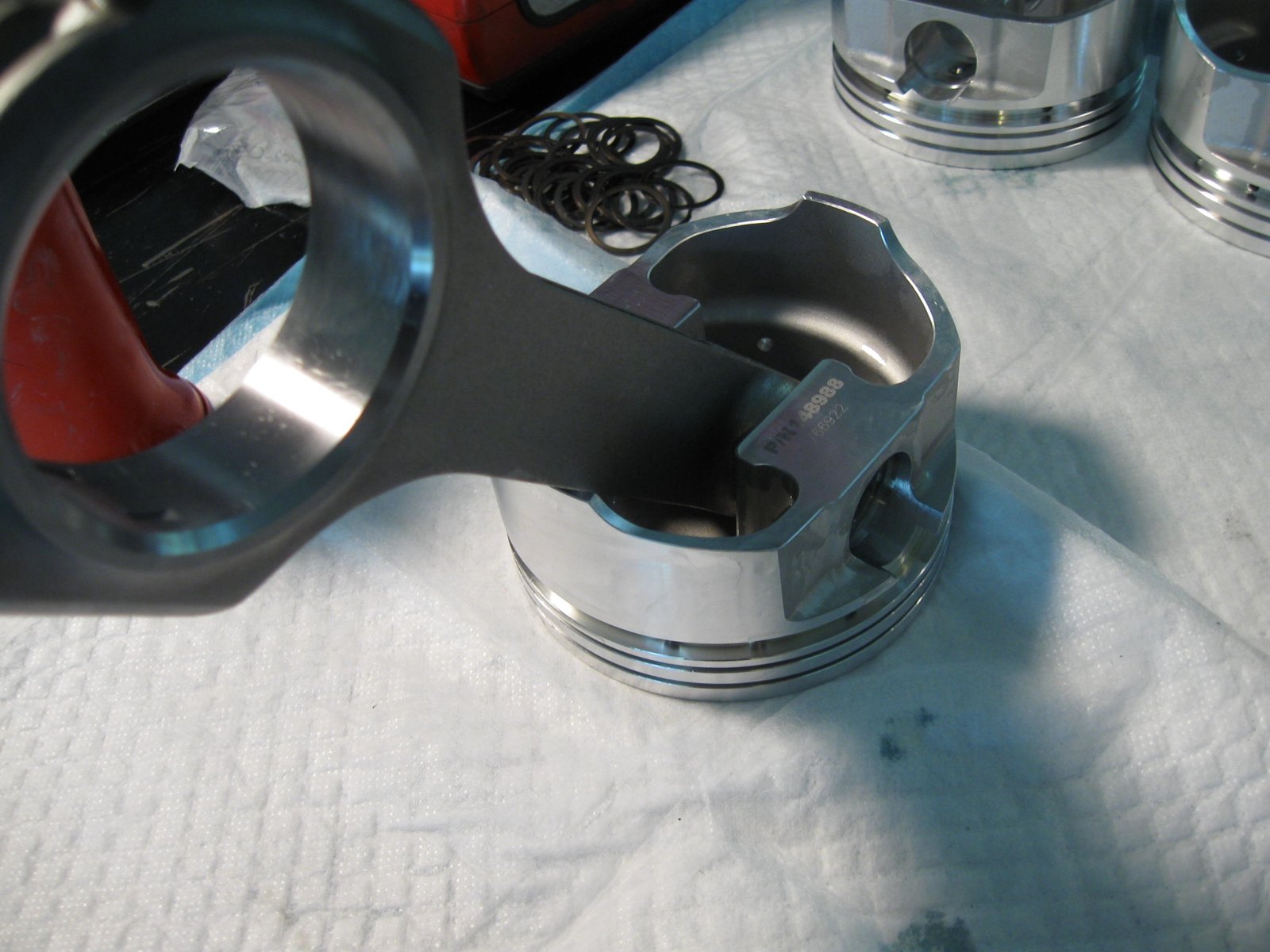

Spiro-locks
|

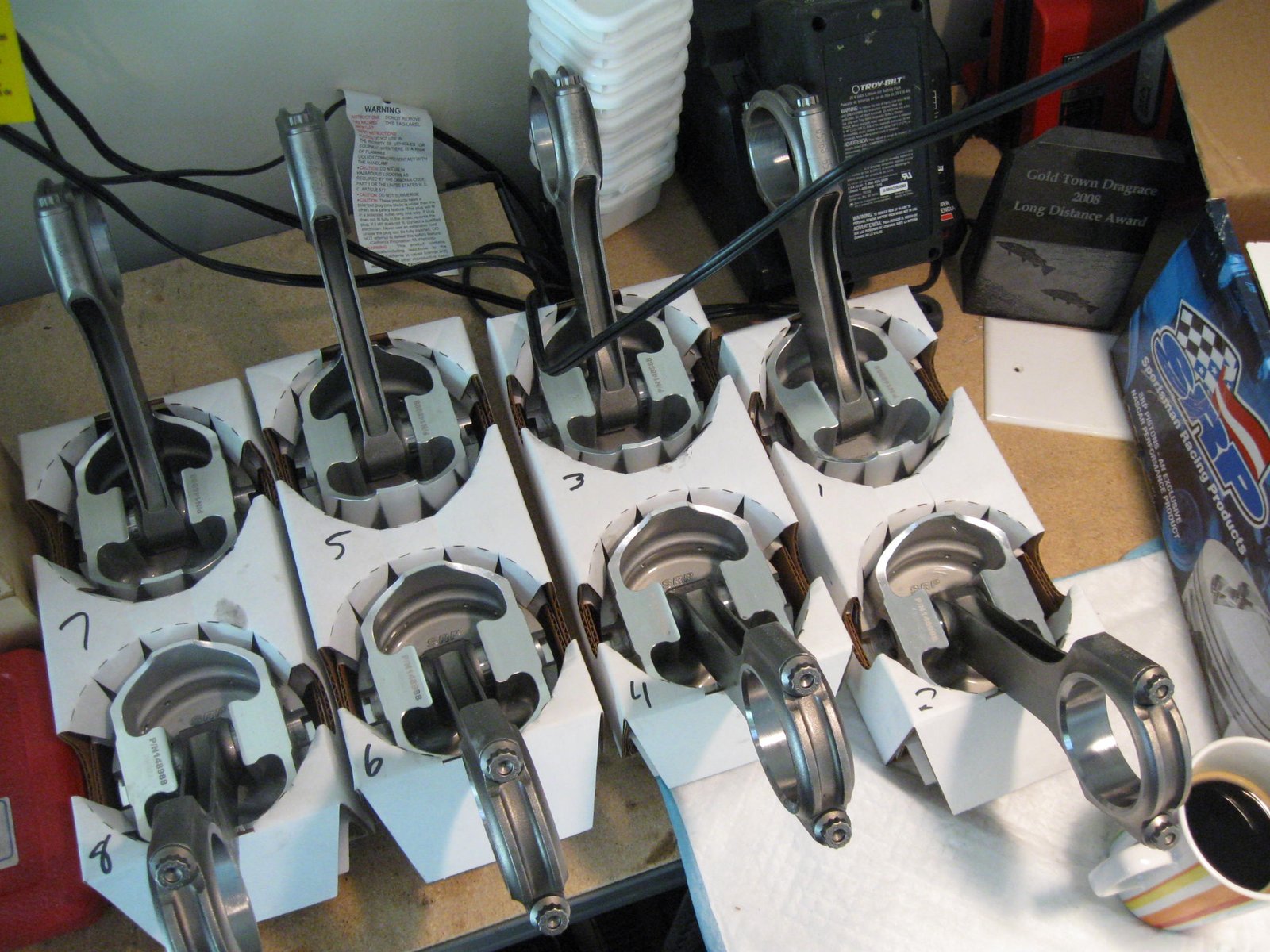

![](2dtn.jpg)
All rod-pistons assembled.
|

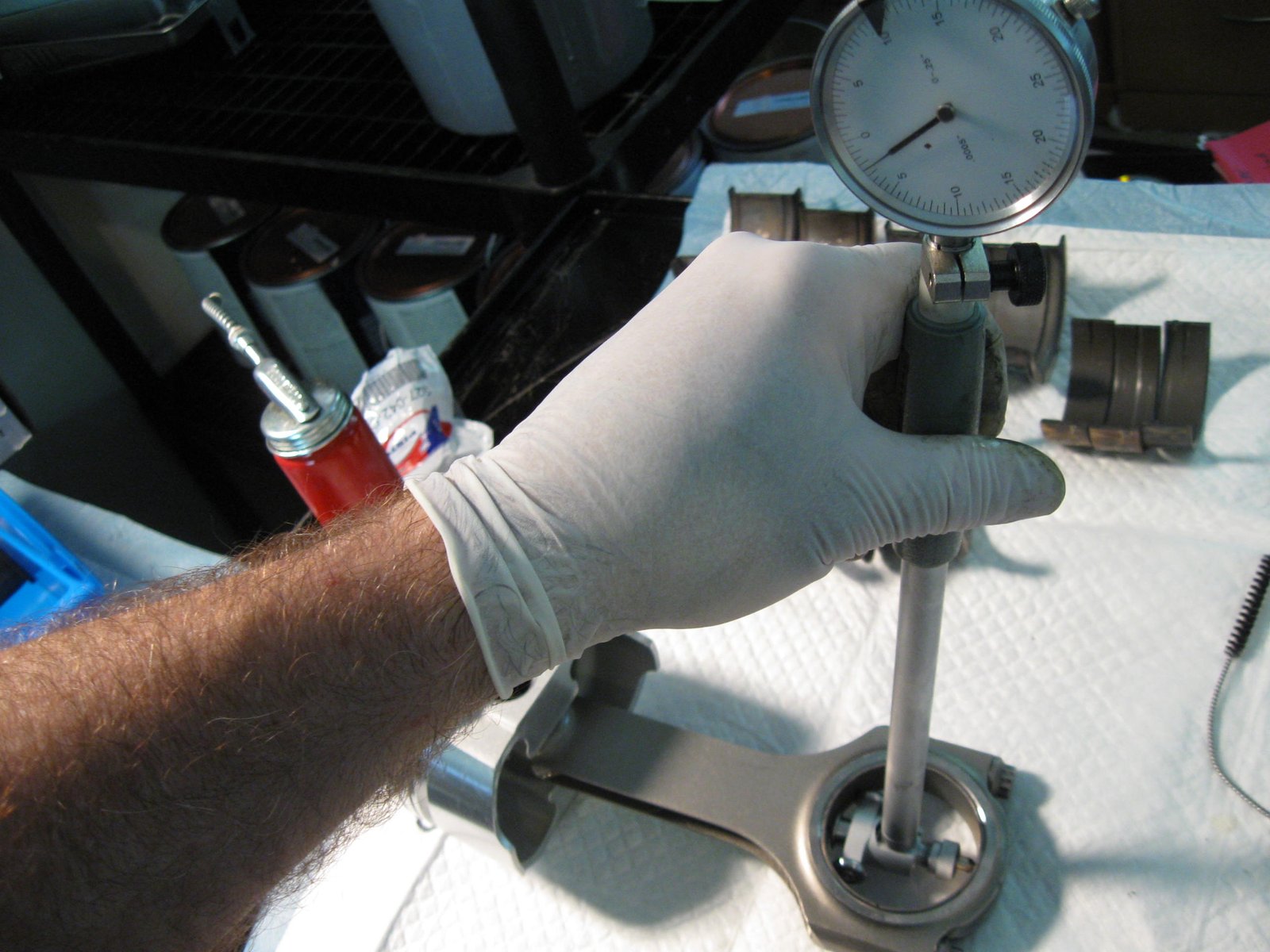

![](2tn.jpg)
Rod bearing clearance...(0.0025")
|

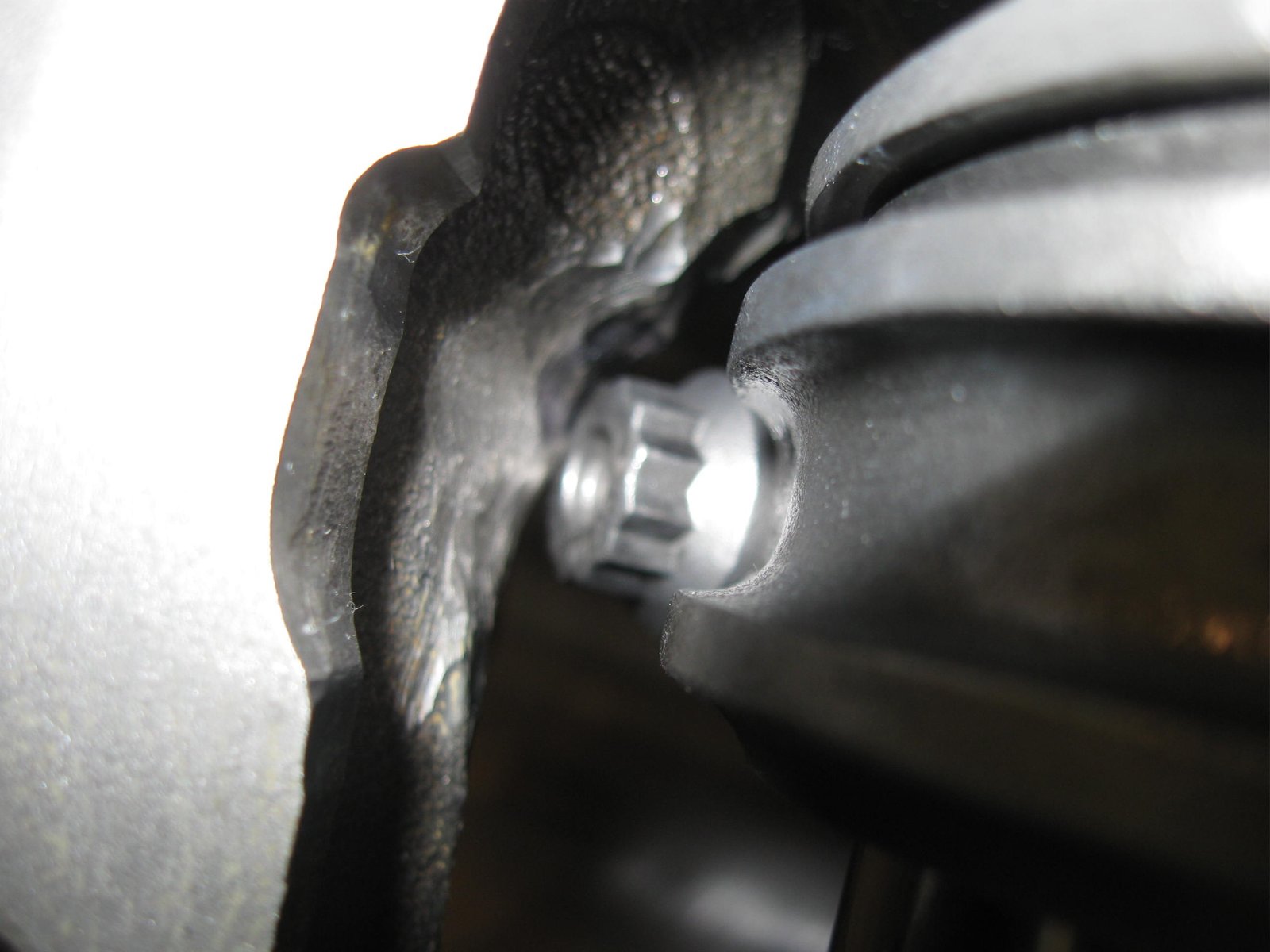

![](clearance2tn.jpg)
Crank/rod/piston in place in order to see if my block clearancing
was good enough...it was not. I checked every cylinder and I
have to clearance more in all of them. But that is the process
with a 396 stroker...lots of clearancing.
|

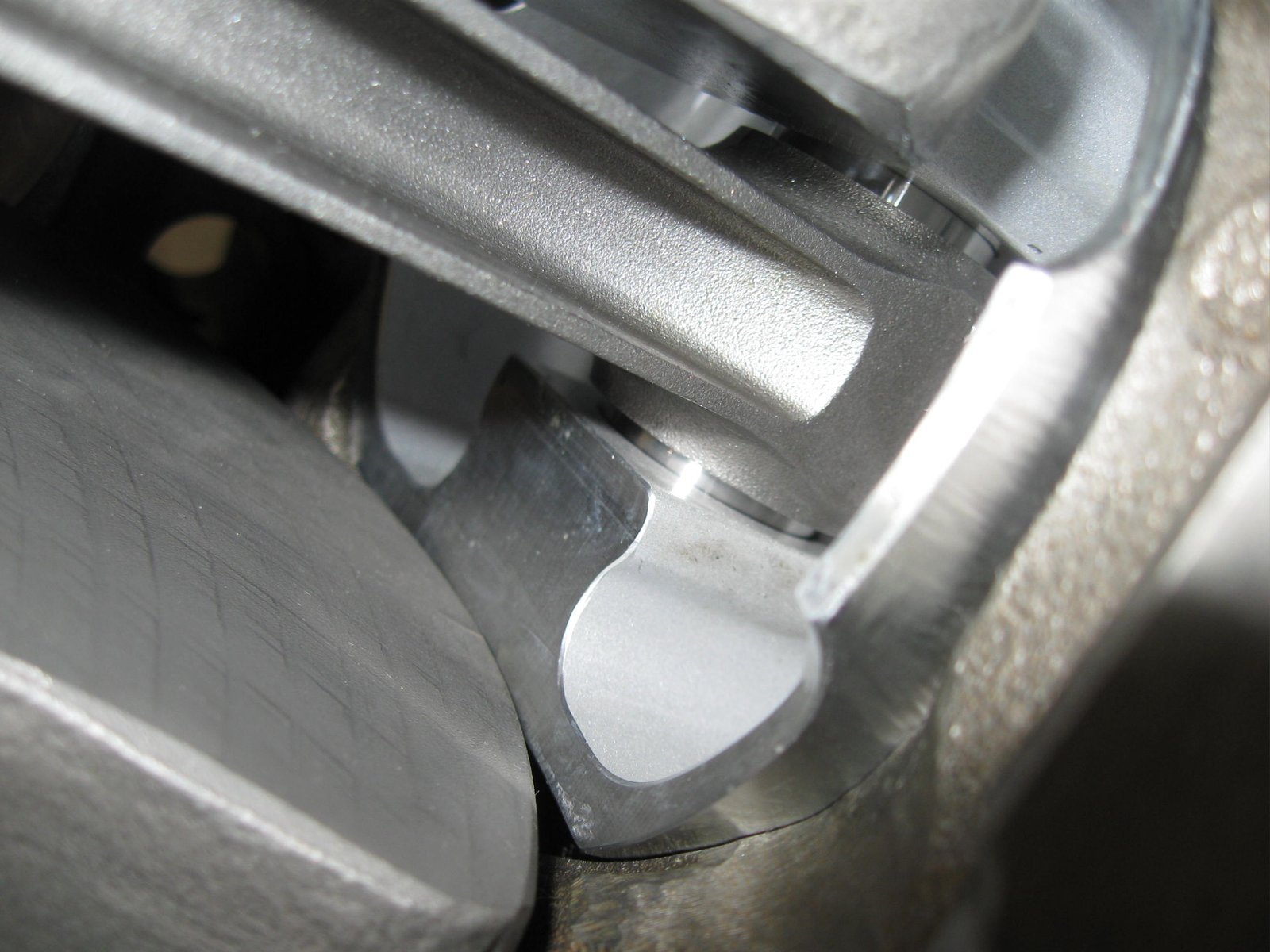

![](clearance3tn.jpg)
And a major snafu...the crankshaft counterweight hits the bottom of
the piston.
|
![](callies1tn.jpg)

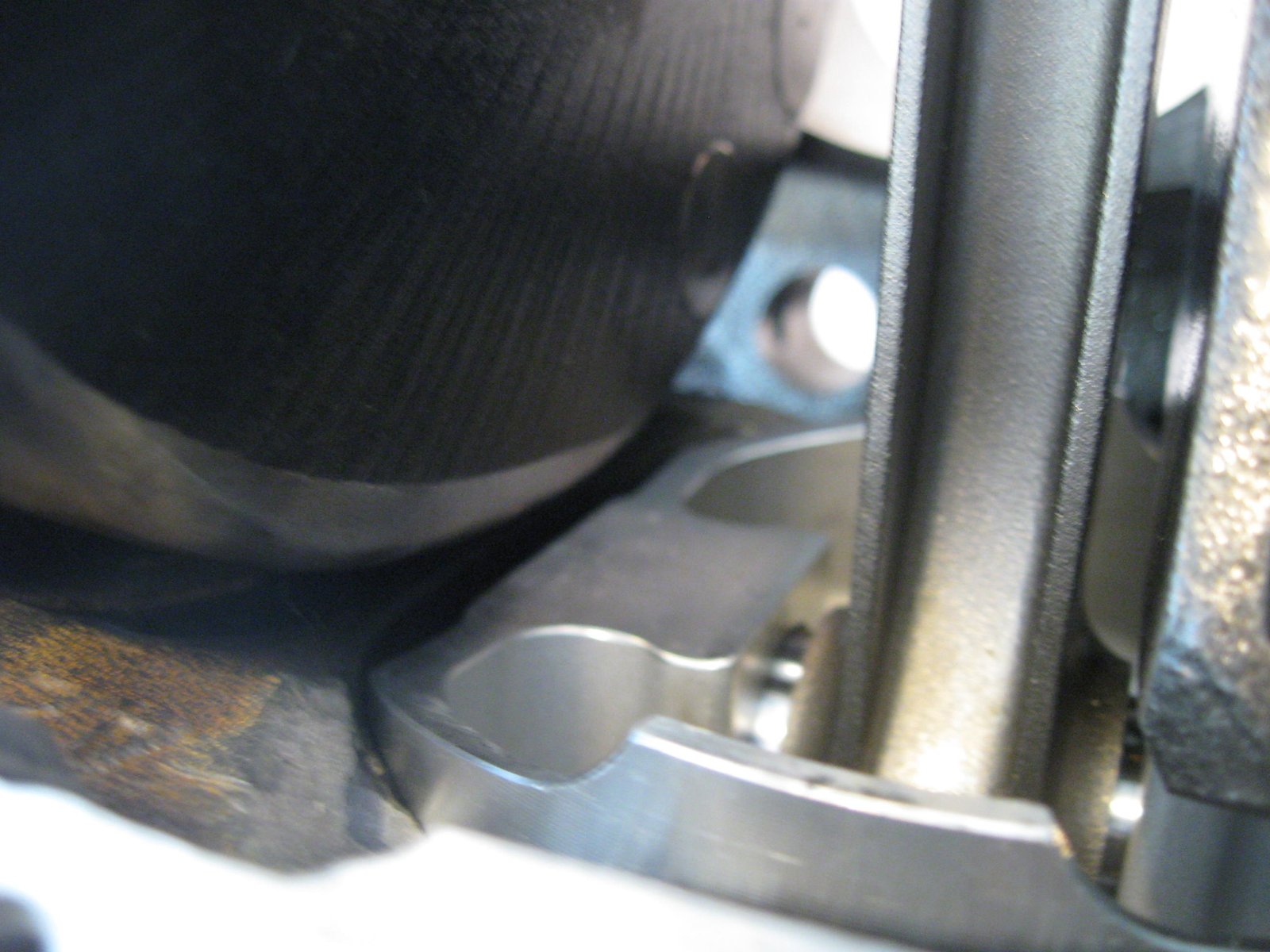

I replaced the Howard's crankshaft with a Callies Magnum crankshaft
and the counterweights clear. This is because the
counterweights were shaved. You can see that in this photo.
|

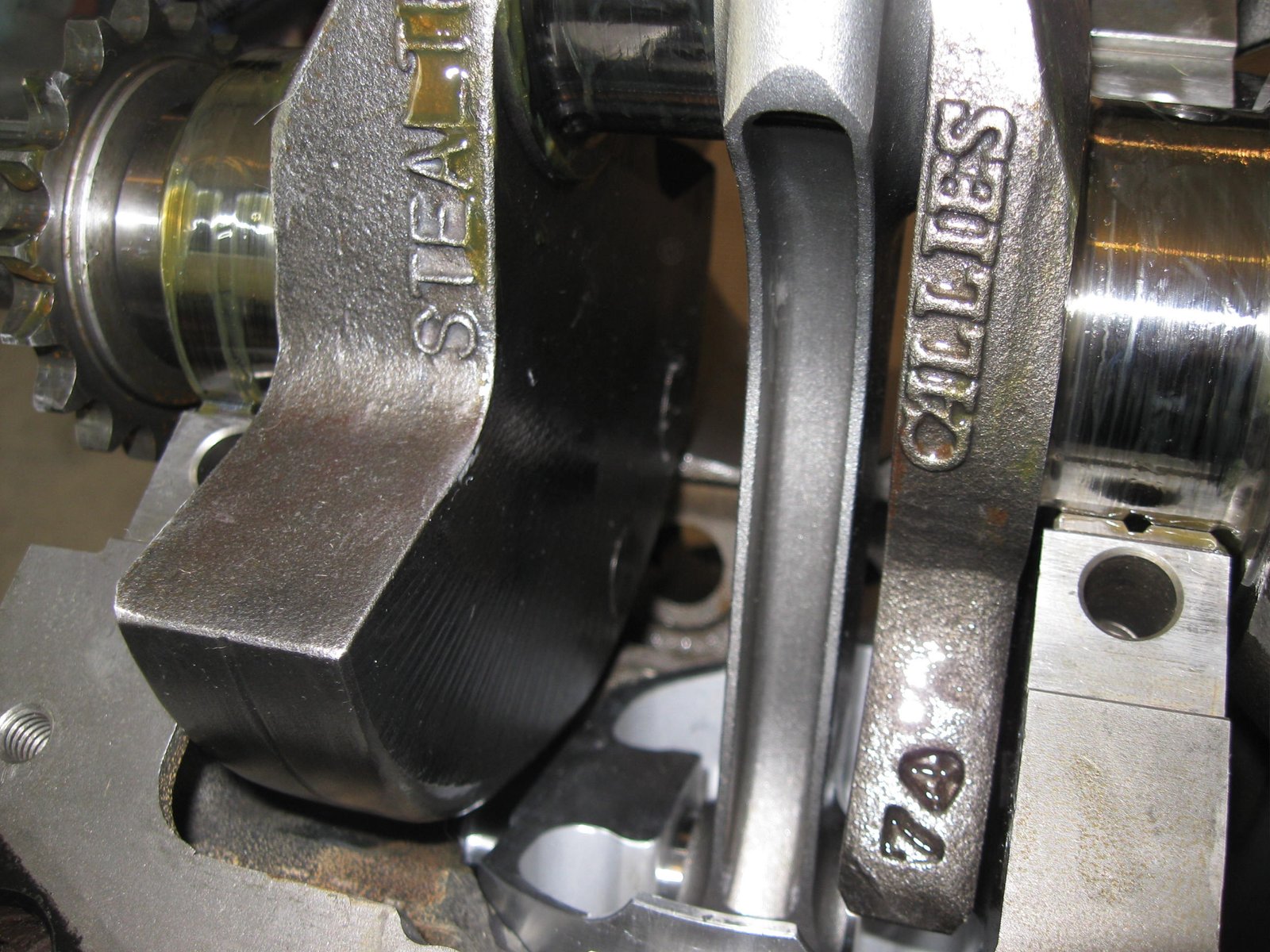

![](callies2tn.jpg)
There is a mile of clearance here with
the Callies crank. No wonder the Callies cost so much....they
are always perfect....perfect journals, perfect crank cam
counterweight profile.
|

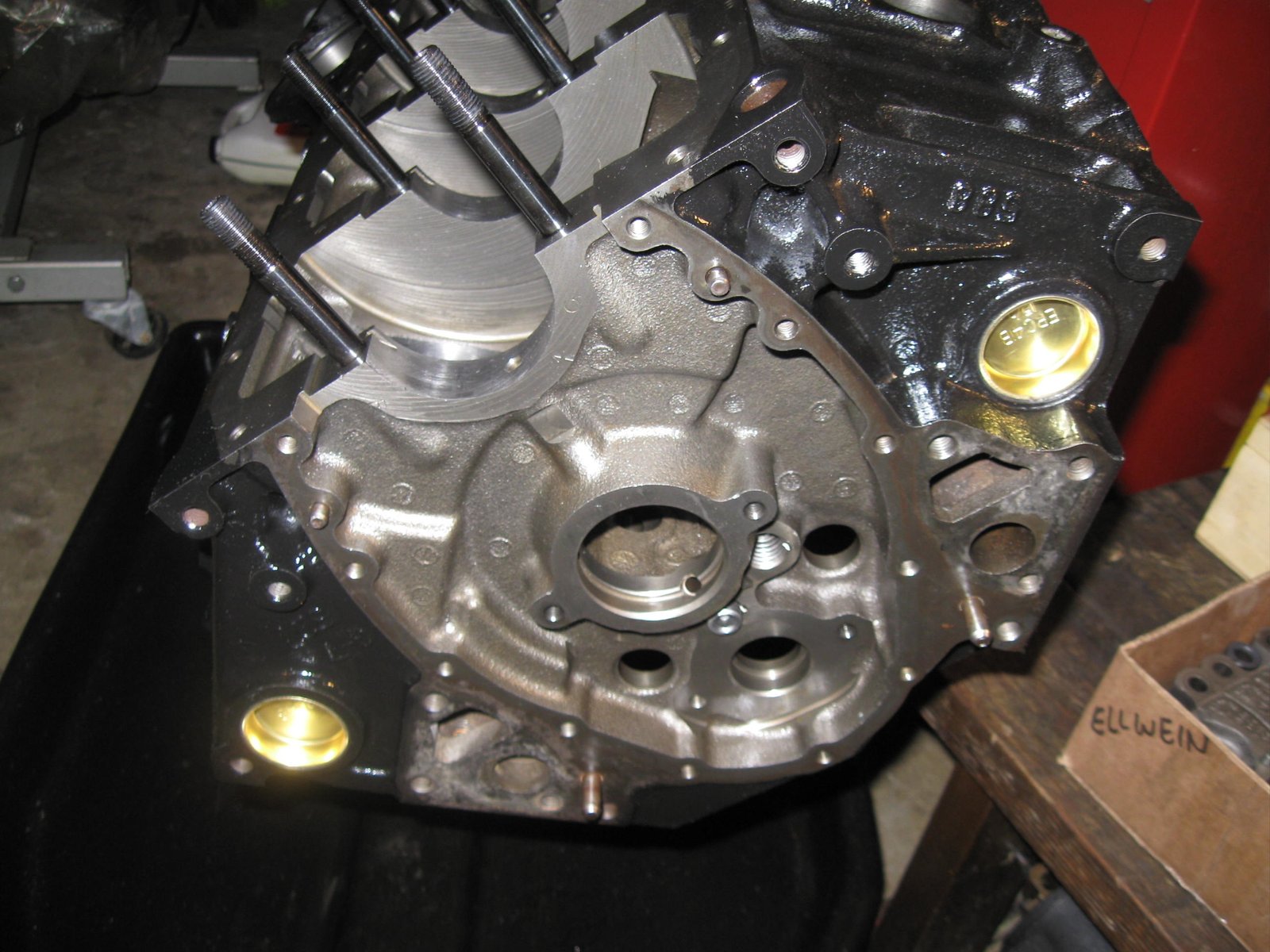

![](blocktn.jpg)
Crankshaft is almost ready for pickup but in the meantime I finish
up on the block. Here is the thread tapping of the front oil
holes.
|
![](block1tn.jpg)
More block clearancing.
|
![](block2tn.jpg)

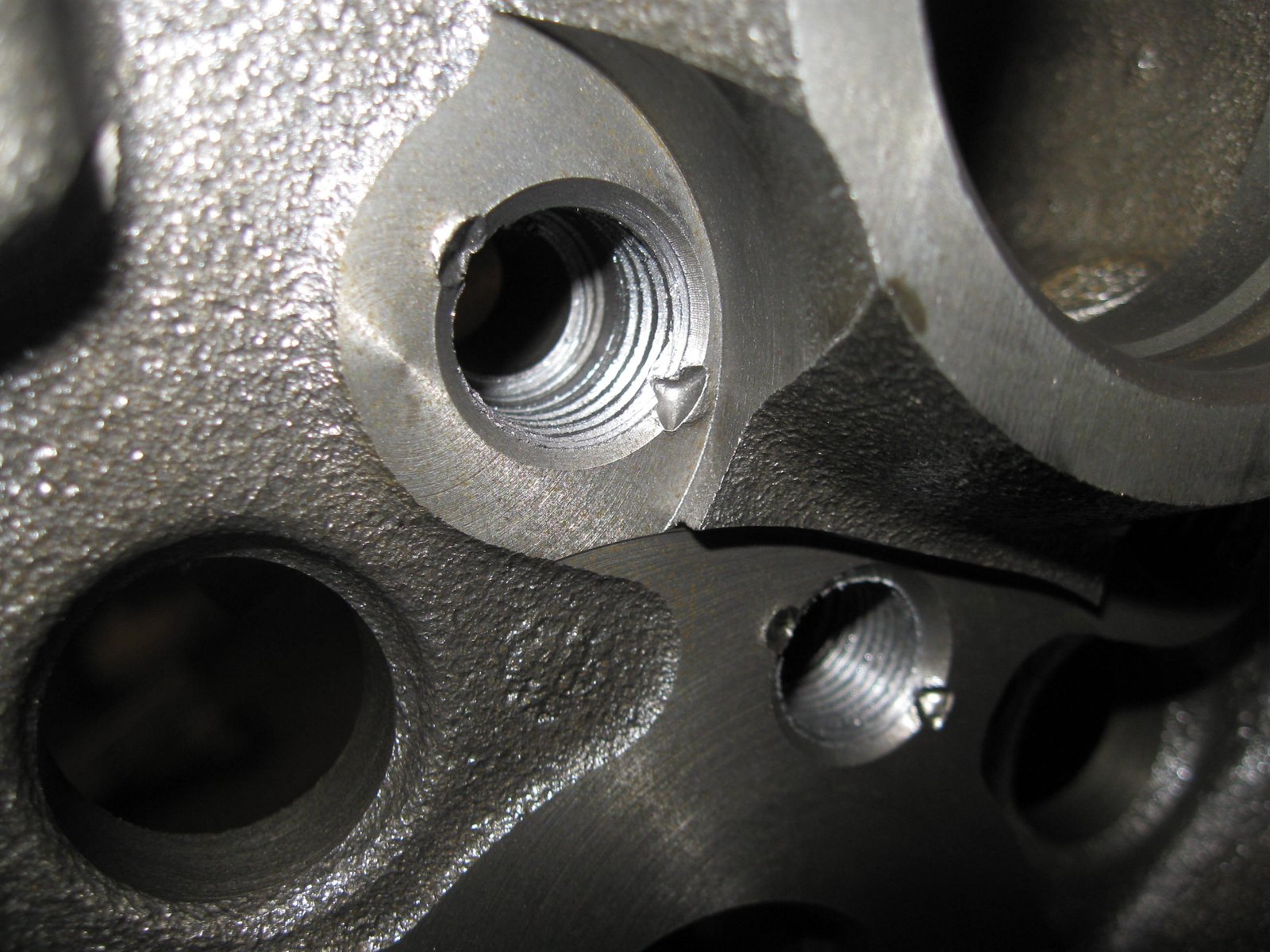

Oil galleries.
|
![](3z1tn.jpg)
Ready to file the piston rings.
|

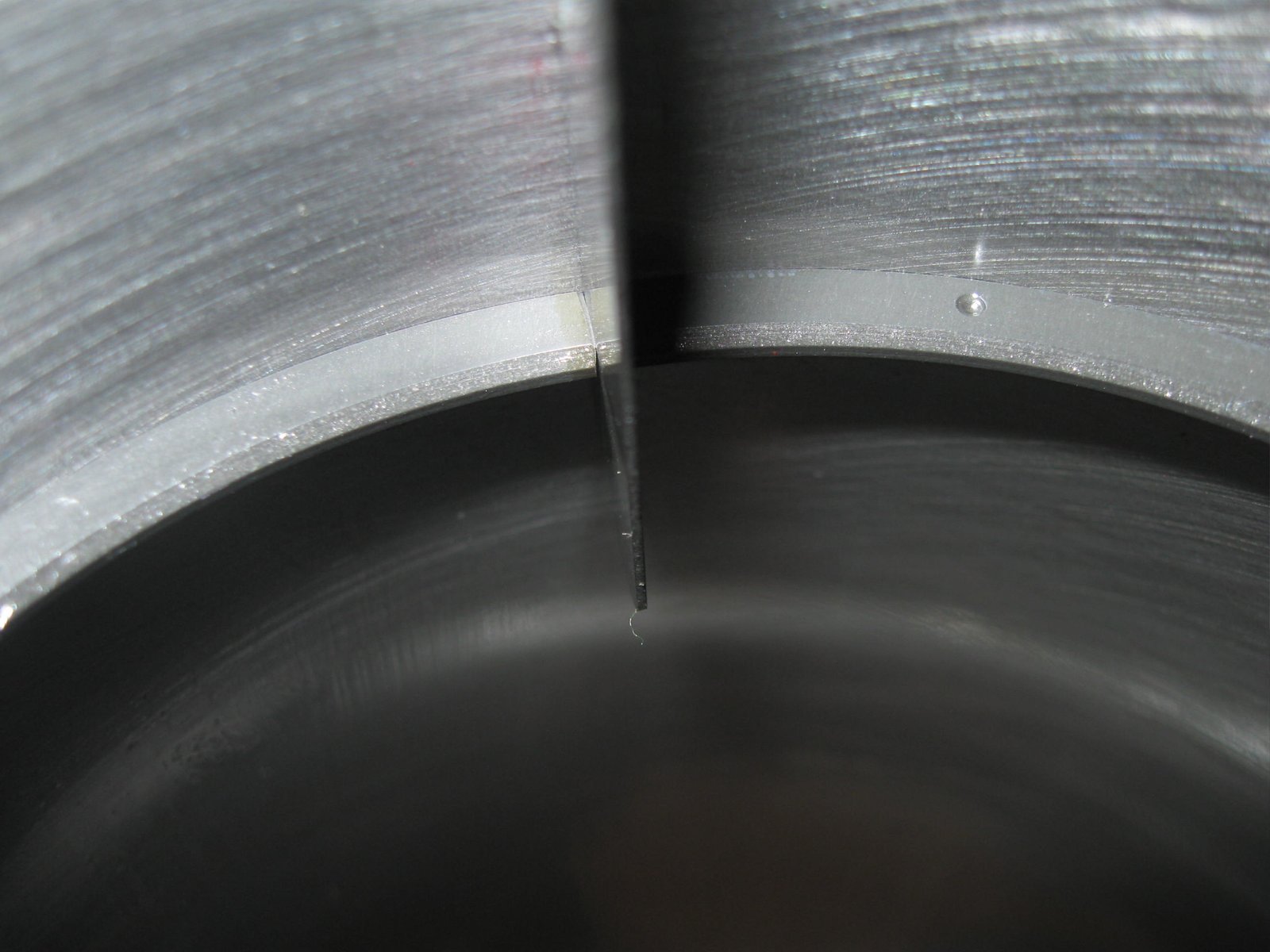

![](3atn.jpg)
Top, (1st), ring at .022"
|

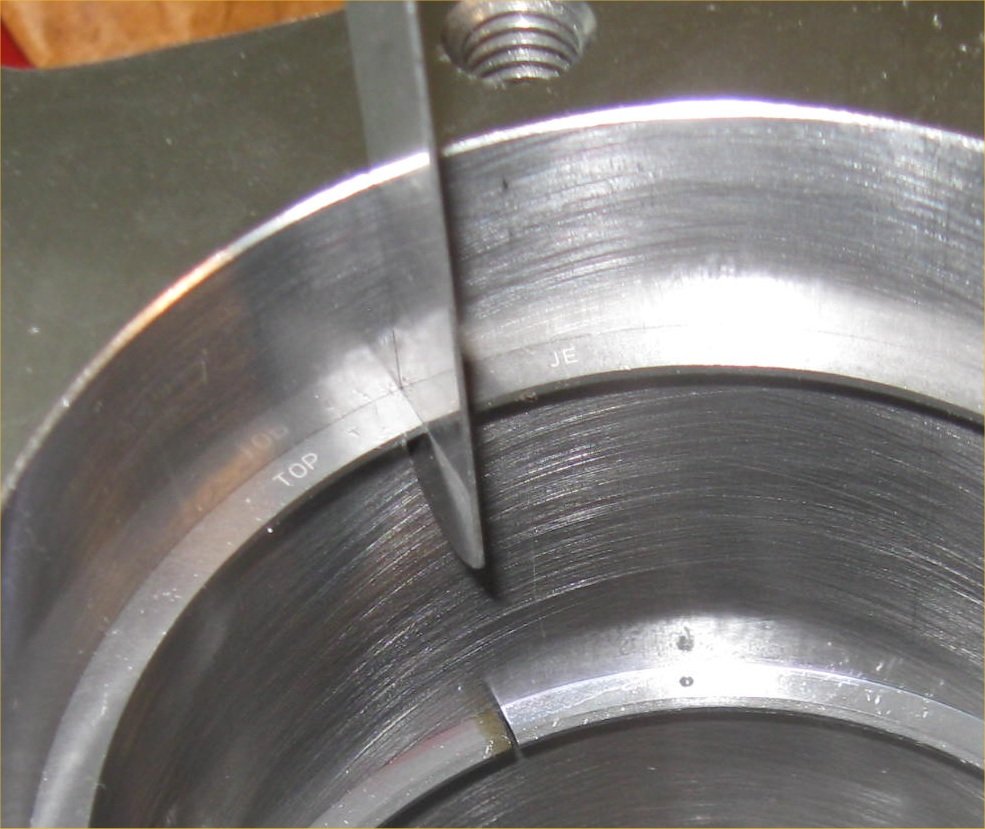

![](3aatn.jpg)
2nd ring at .025"
|
![](3btn.jpg)

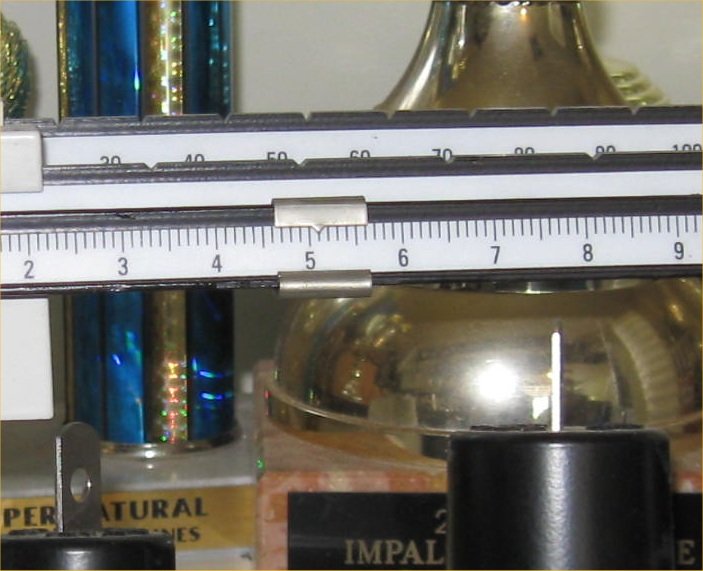

I have always been curious as to how many grams are shaved off a
ring. Here is a freshly filed ring = 15.1 gram
|
![](3bbtn.jpg)

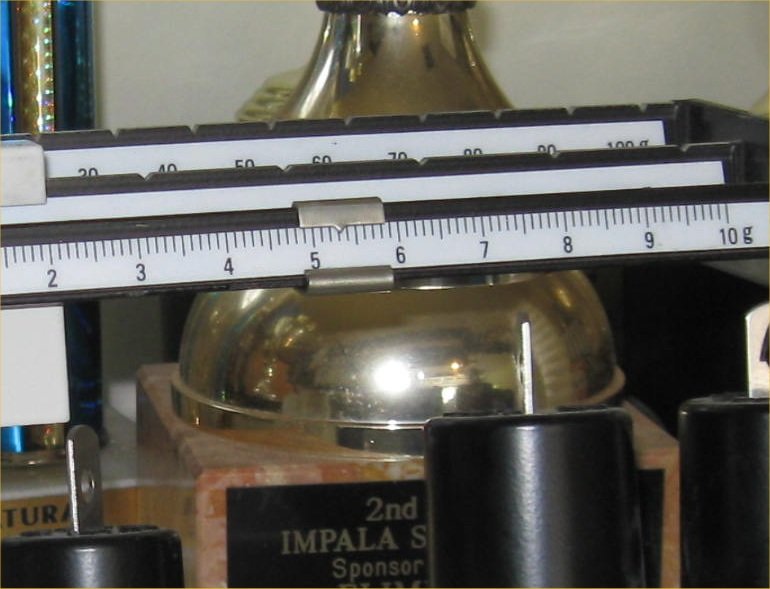

And a non-filed ring = 15.3 gram, (0.2 gram difference).
|
![](3tn.jpg)

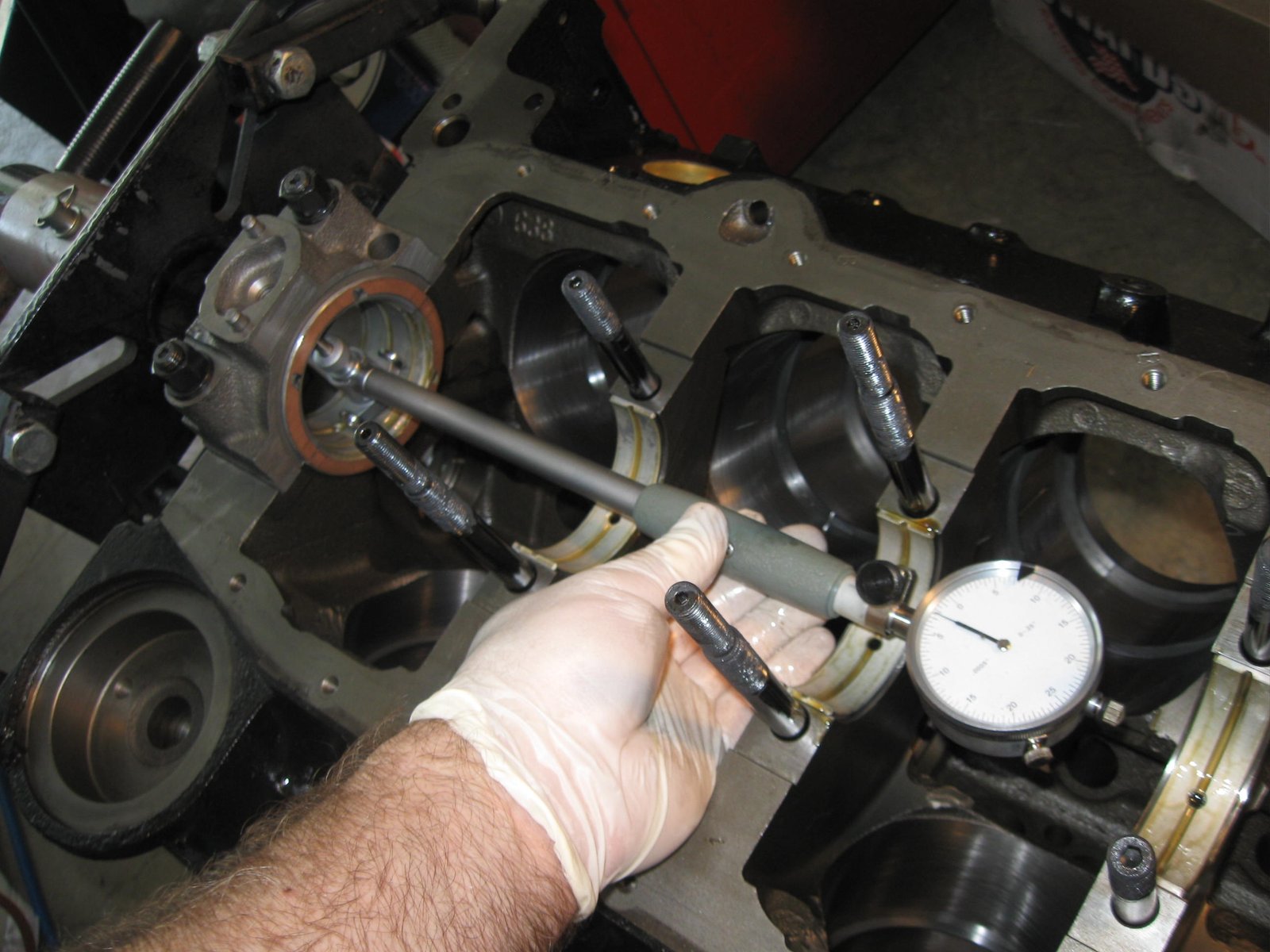

Rings are all filed and stored in the bores. Main clearance
now being checked.
|
![](3ztn.jpg)

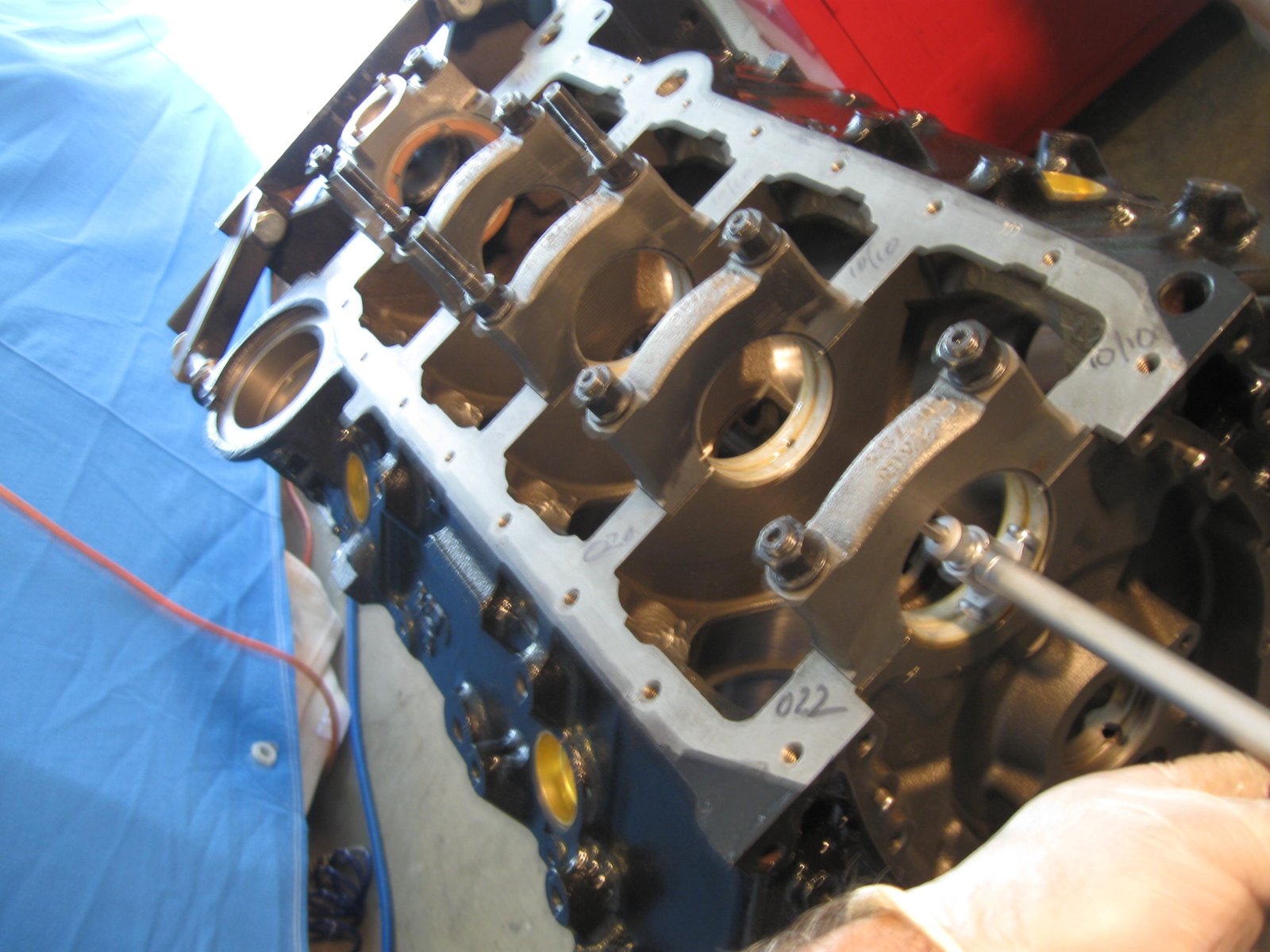

.0022, .0020, .0020, .0022, .0025" from #1 to #5
|

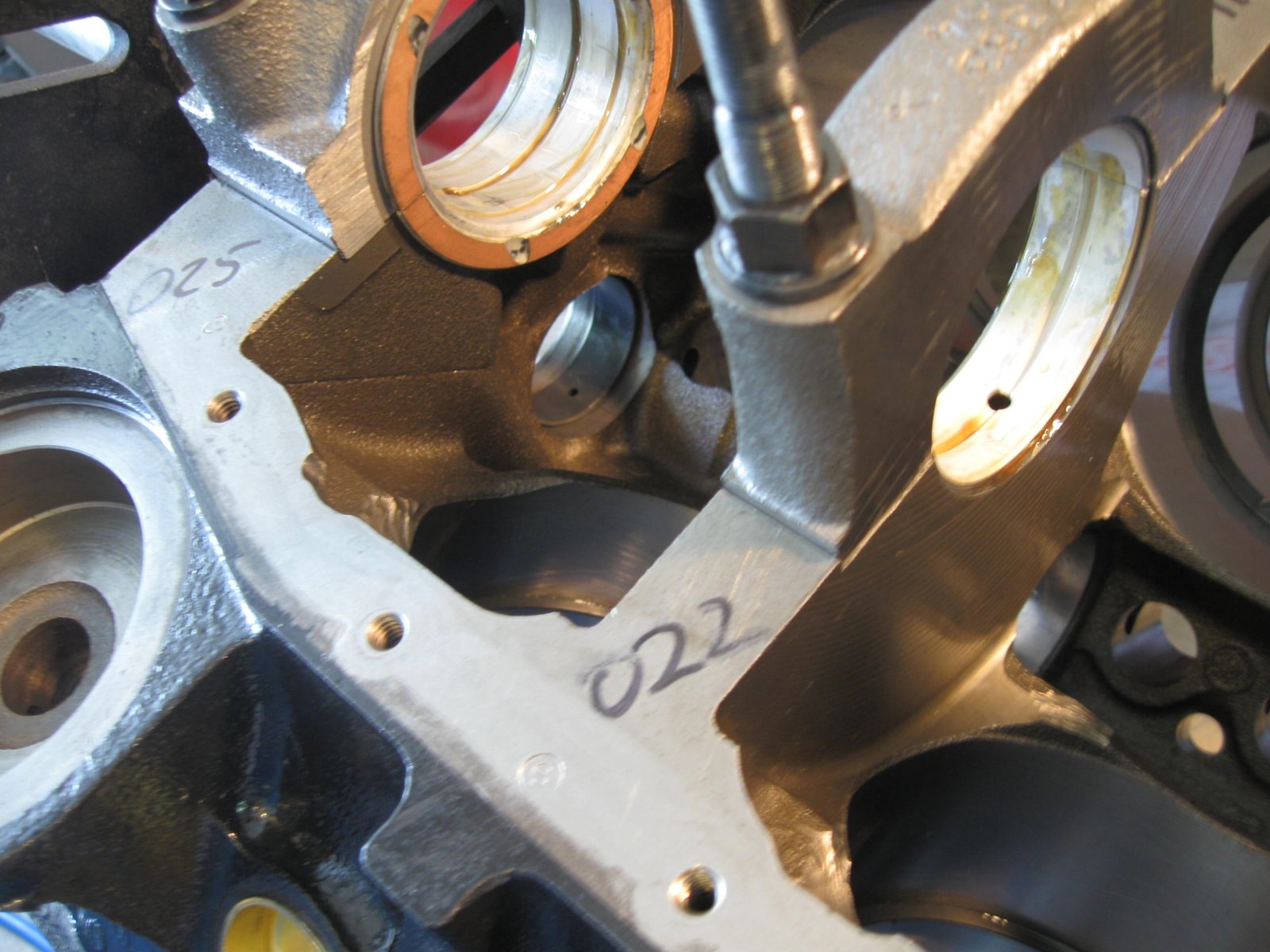

![](3camtn.jpg)
Now the cam bearings in.
|

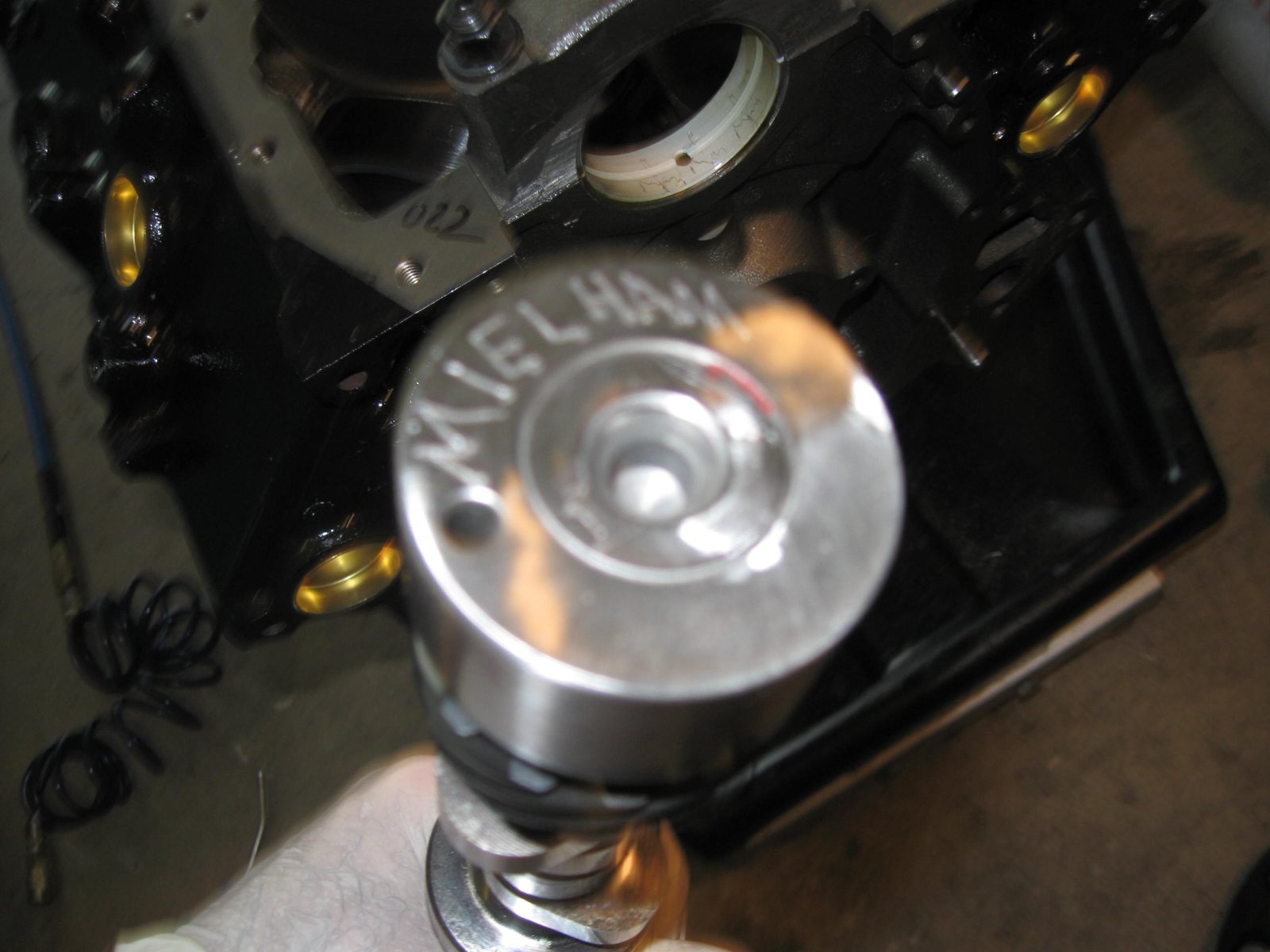

![](3cam2tn.jpg)
The cam grind #MIELHAM
|
![](3cam3tn.jpg)

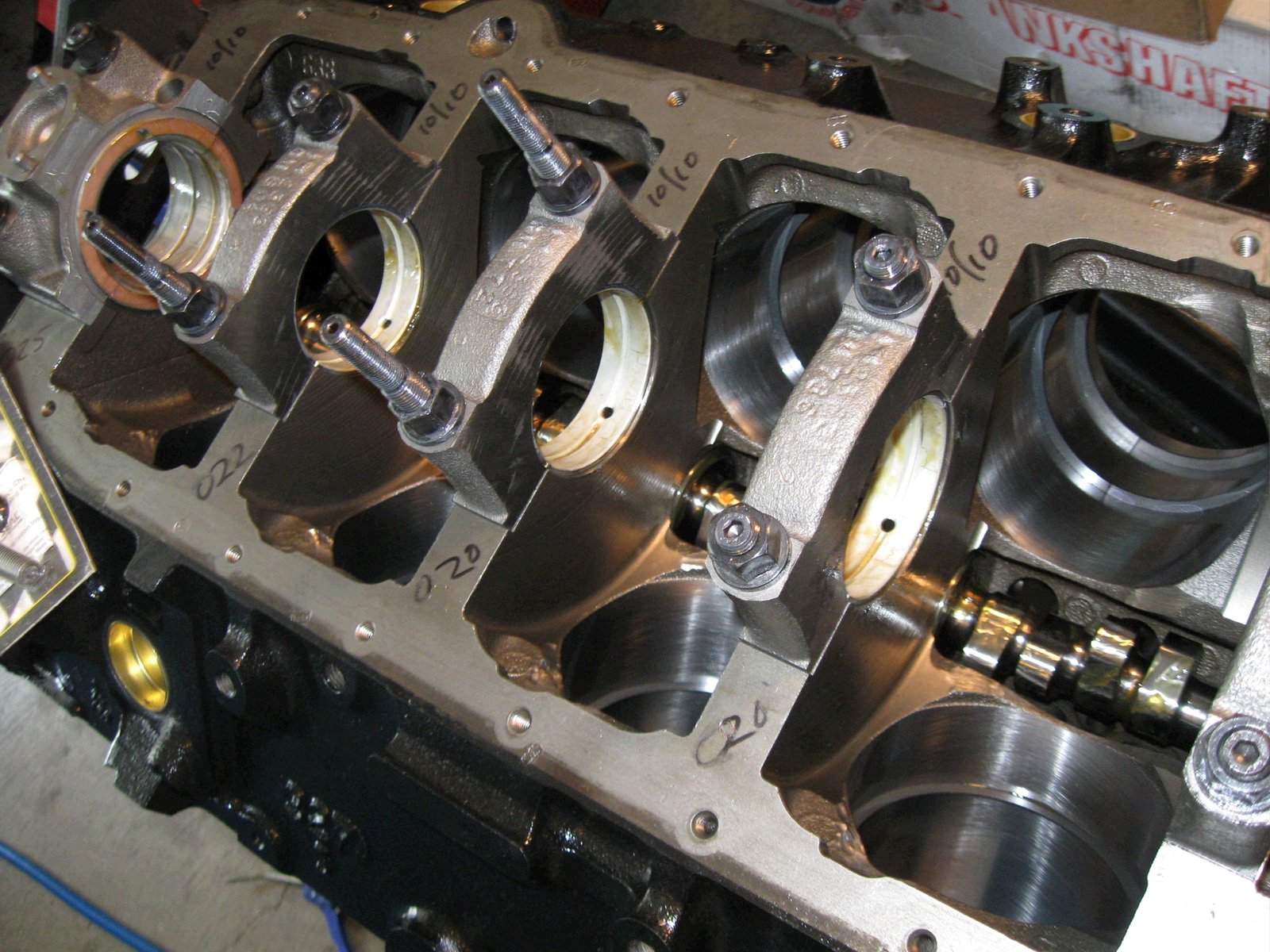

Photo with cam installed.
|

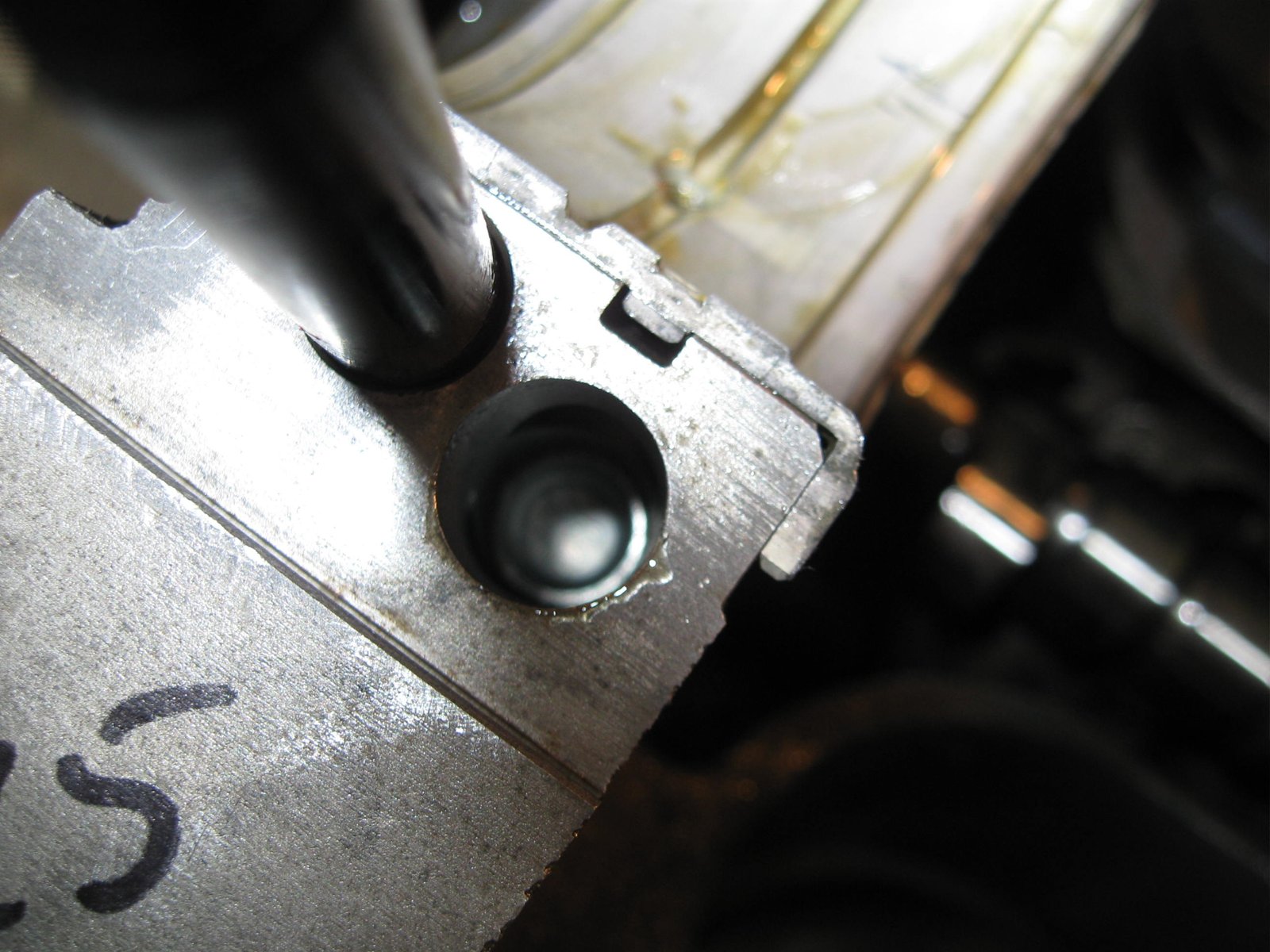

![](3dtn.jpg)
Photo to prove the oil gallery plug is installed.
|
![](3etn.jpg)

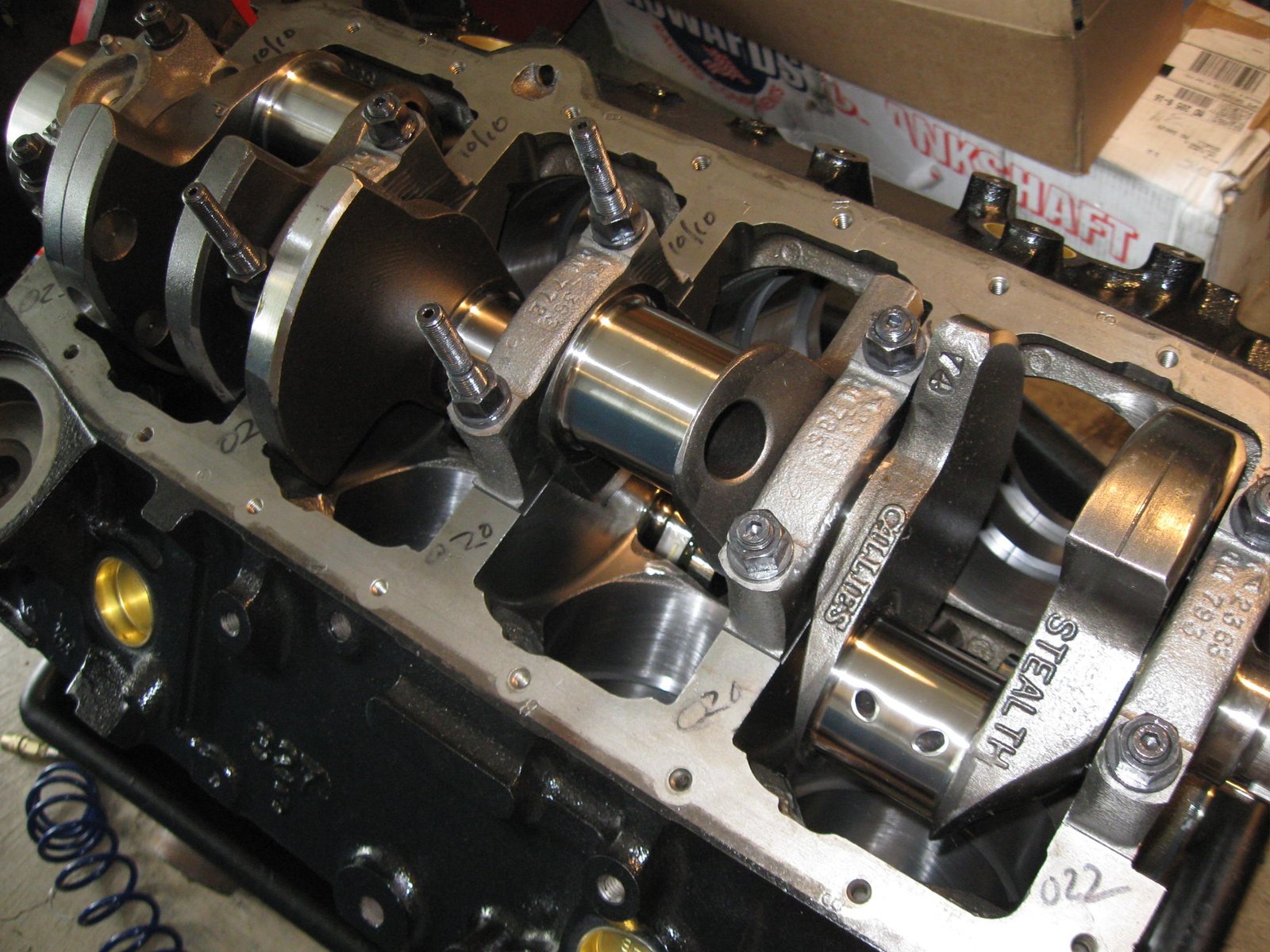

Callies magnum crankshaft installed. 3.875" stroke.
|
![](3ftn.jpg)

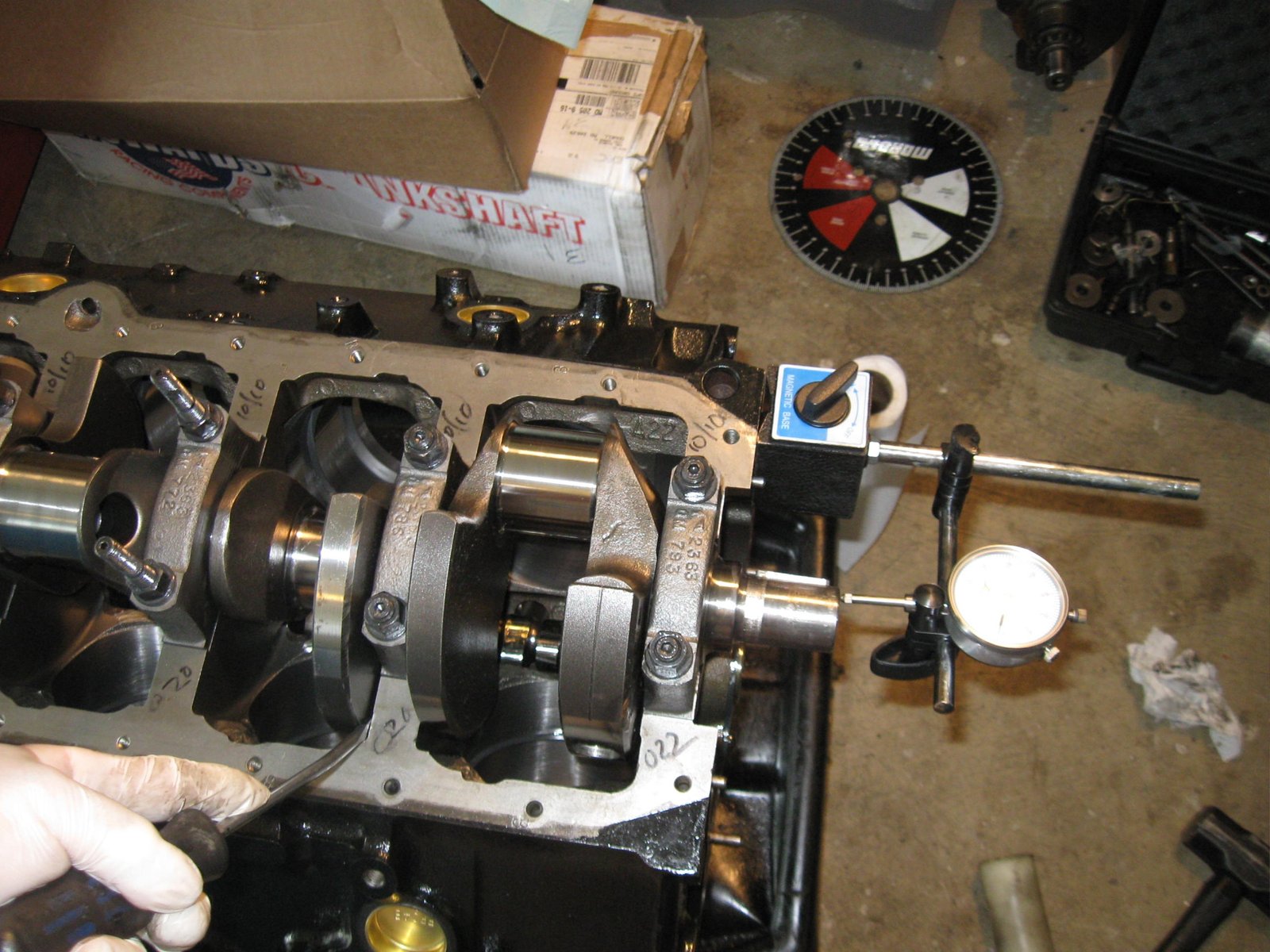

Rear main torqued and end-play checked to be .008"
|

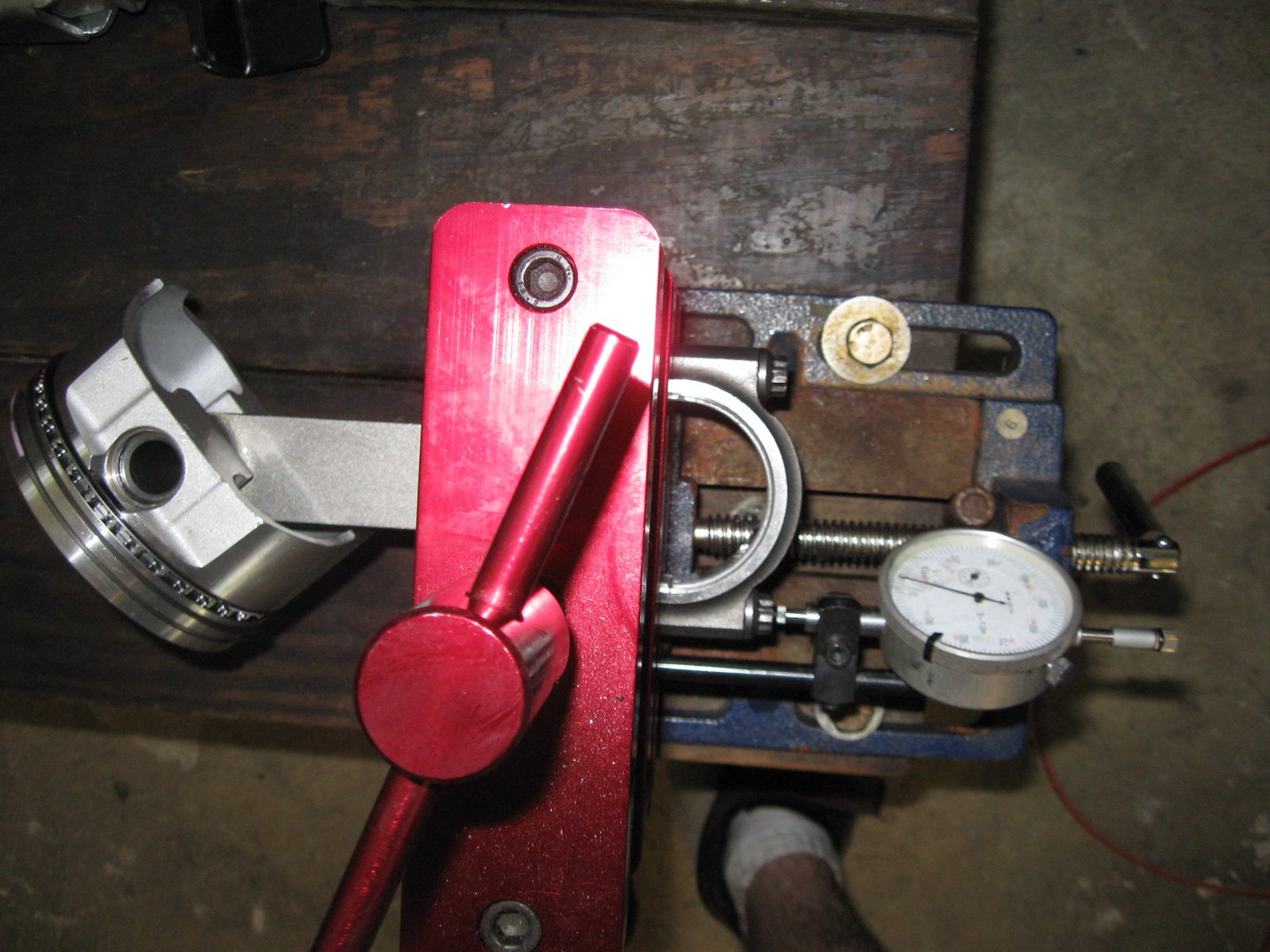

![](3gtn.jpg)
Rod bearing clearance checked. (torqued to .005" stretch)
|

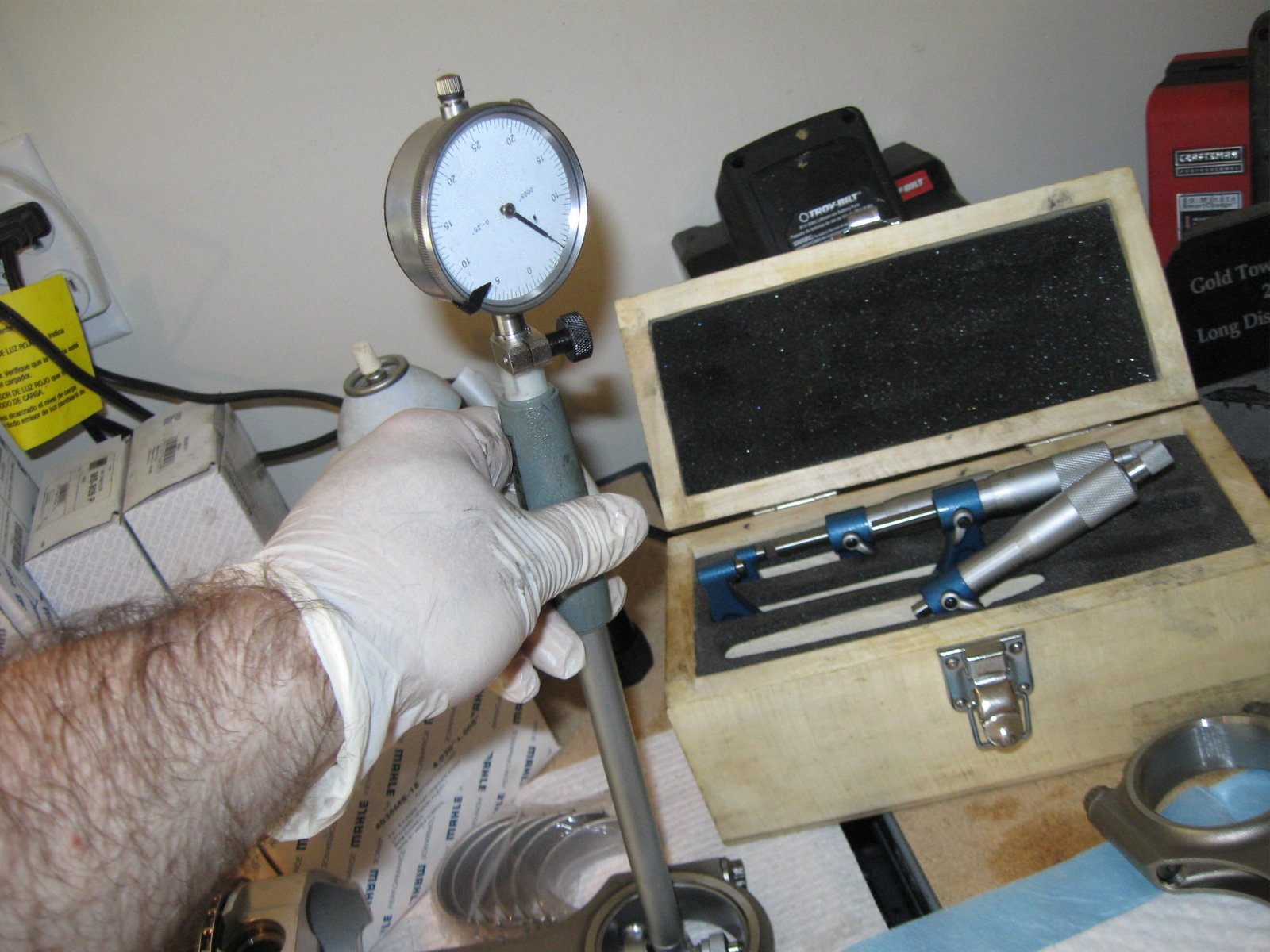

![](3htn.jpg)
All rods at .0025" clearance.
|

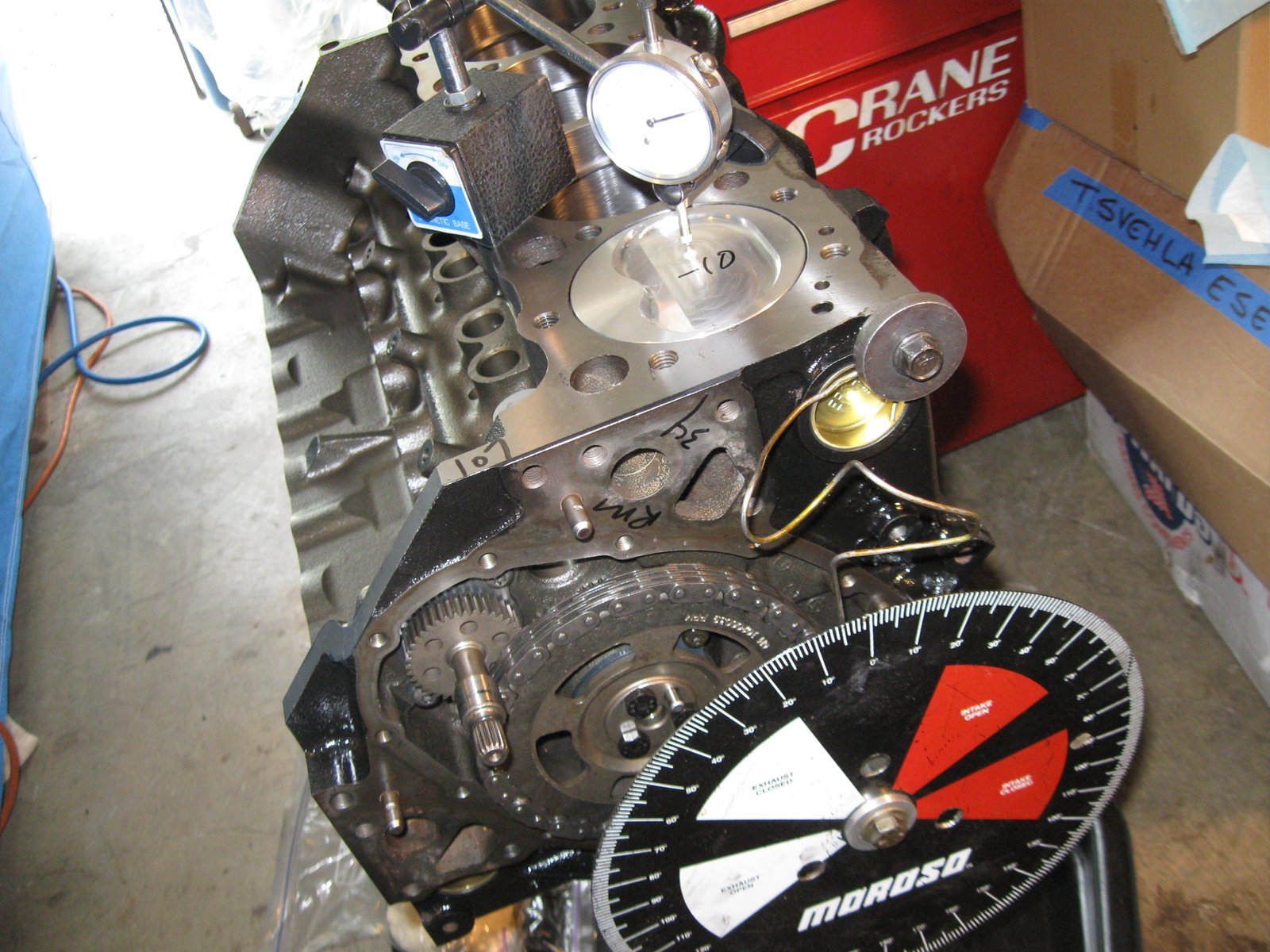

![](3itn.jpg)
Degree check of camshaft. Piston is at -.010"
deck-height.
|
![](3i1tn.jpg)

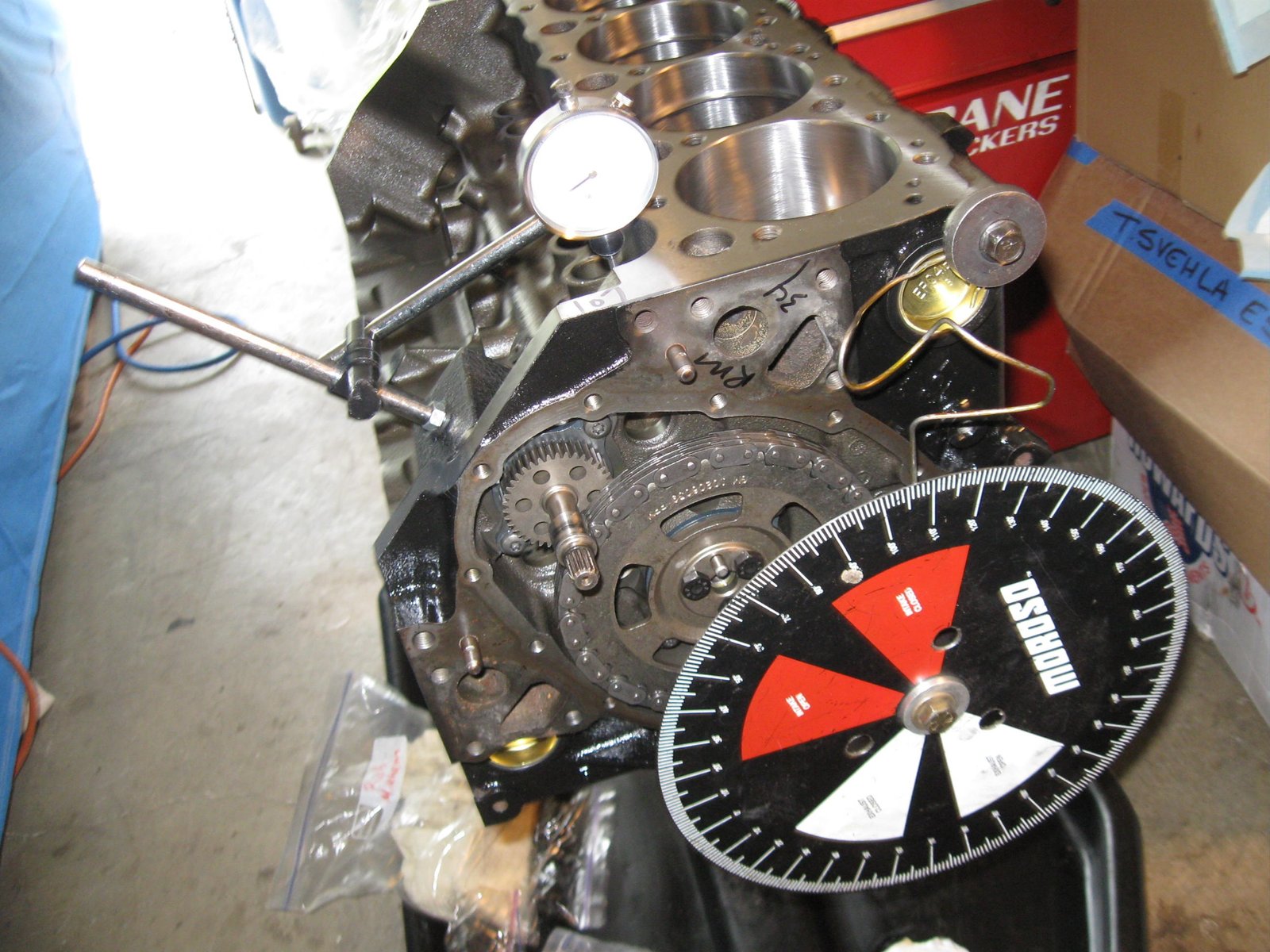

Intake CL = 105, Exh CL = 113, (cam card spec 106/114)
|
![](3jtn.jpg)

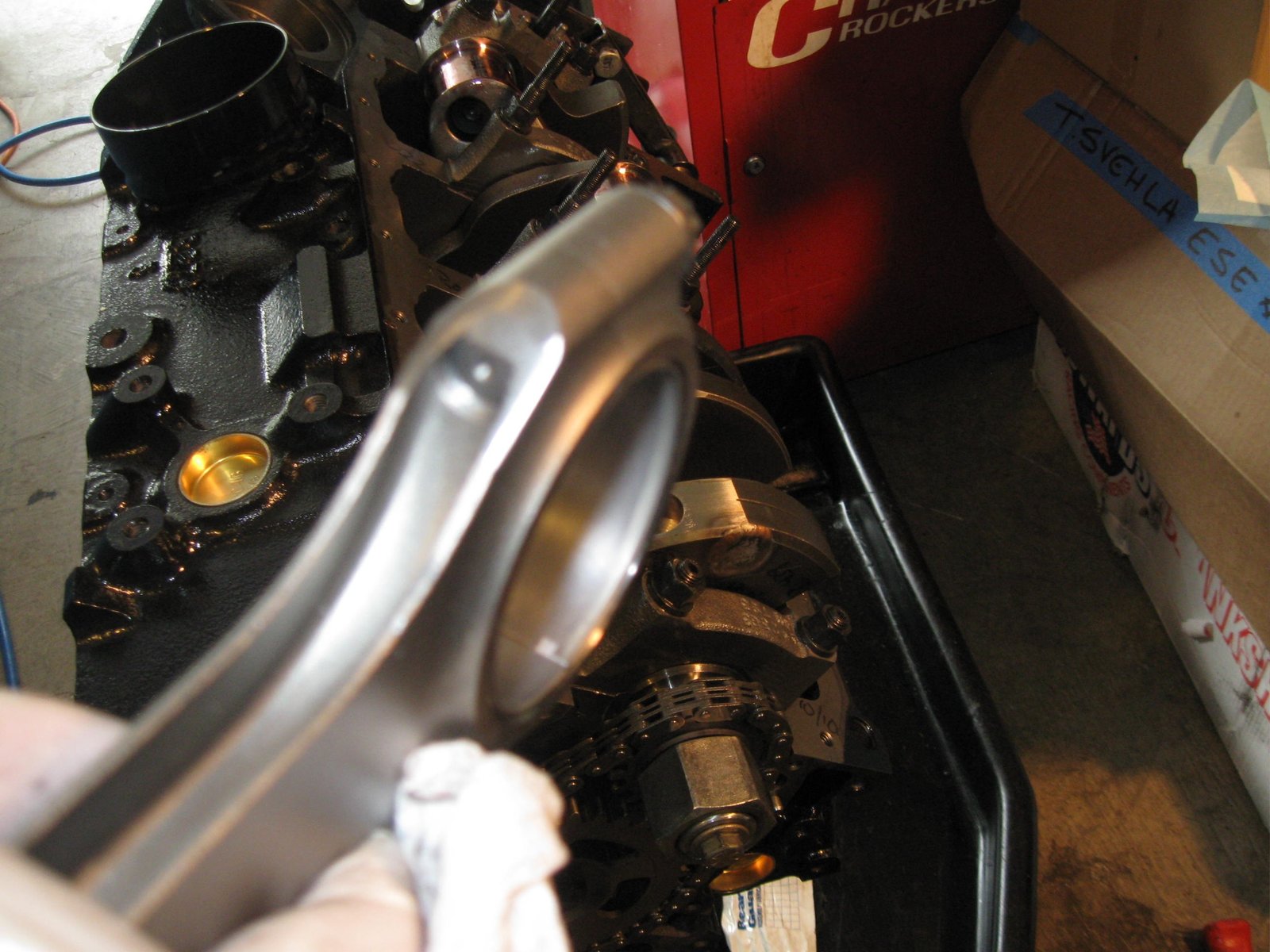

Installing piston/rod combos. #1 and #5 bump the camshaft.
This blurry photo shows where I clearance on the rod so that it does
not bump the cam.
|

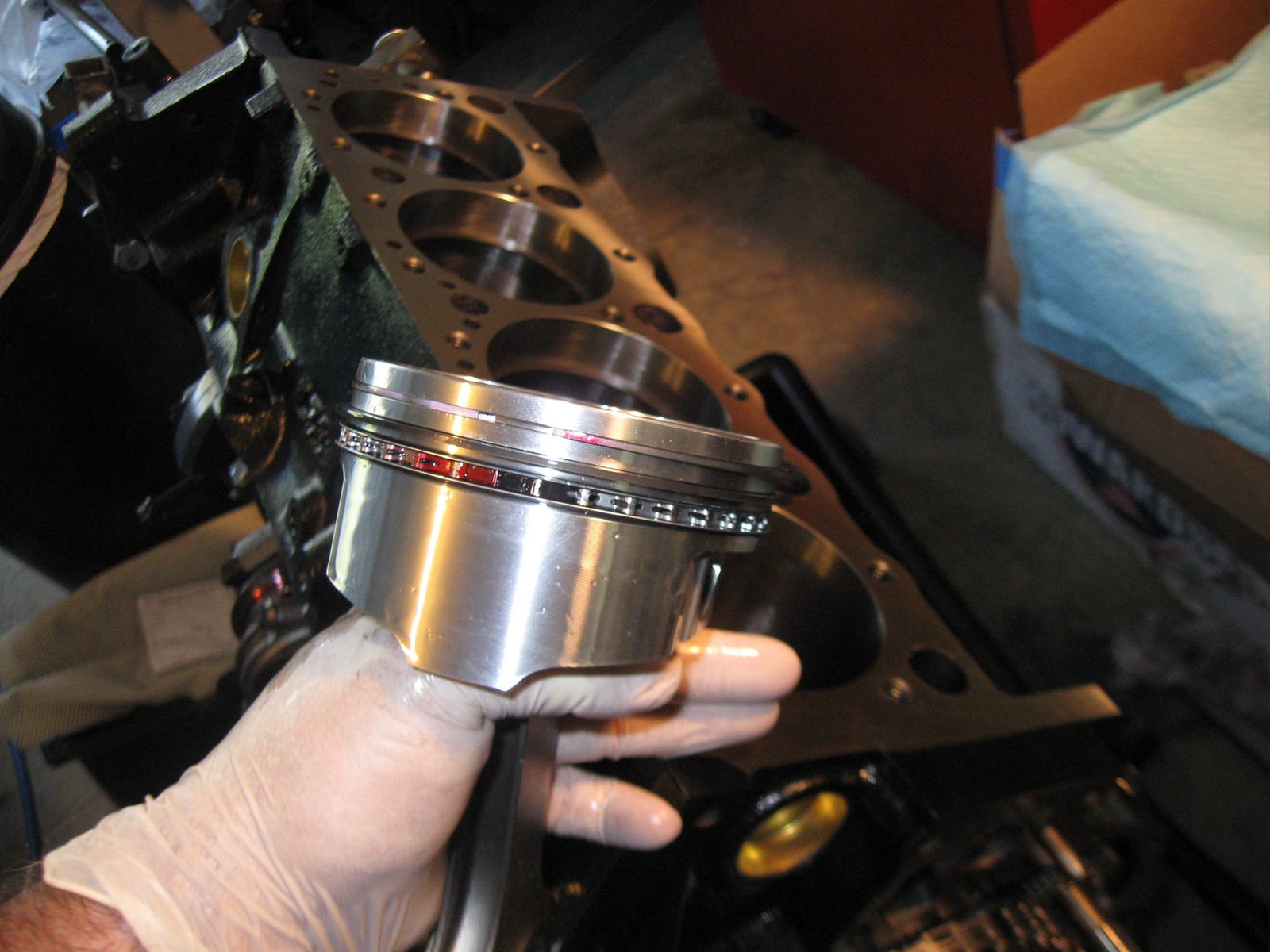

![](f01tn.jpg)
A few shots of the piston.
|

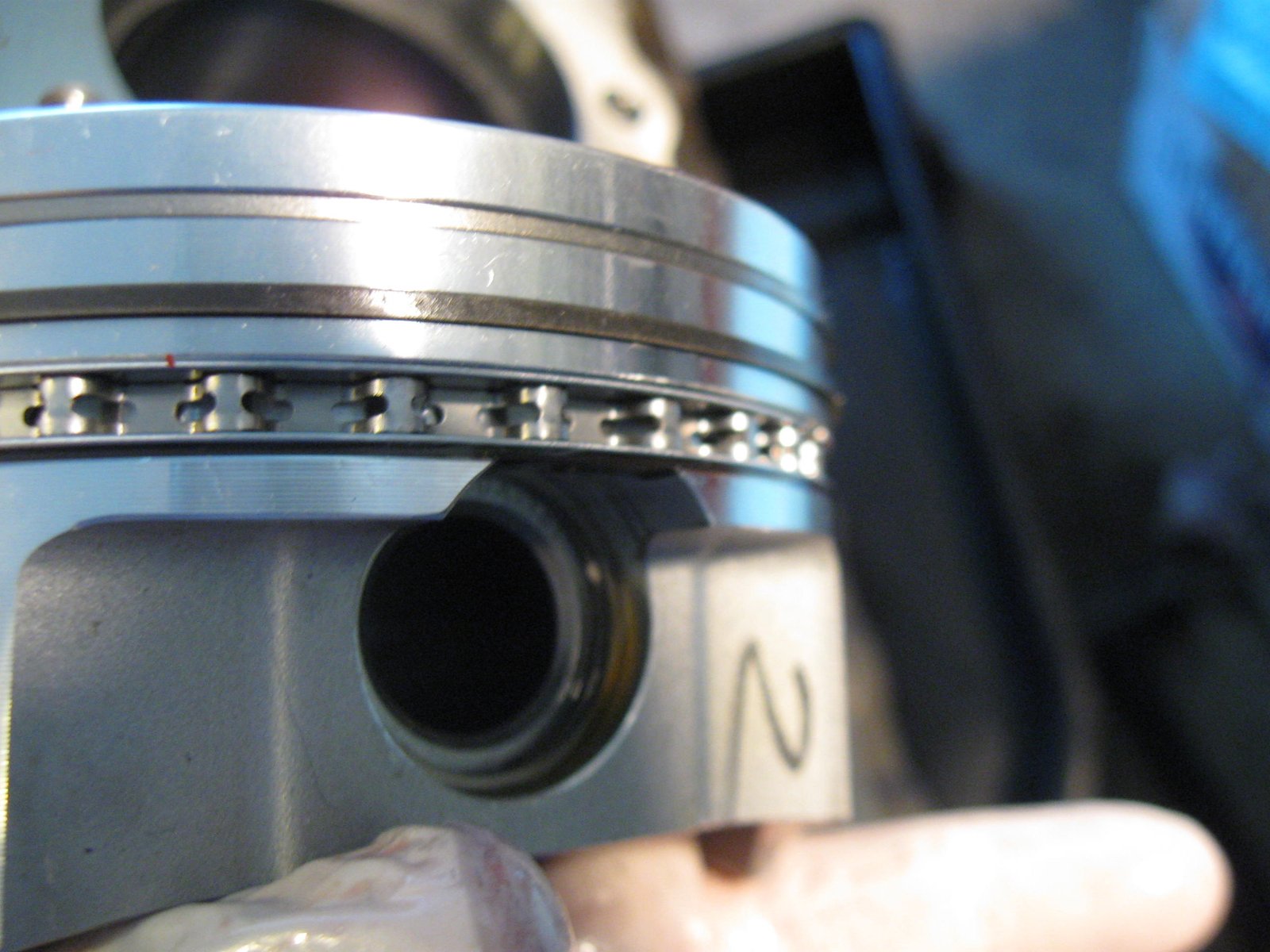

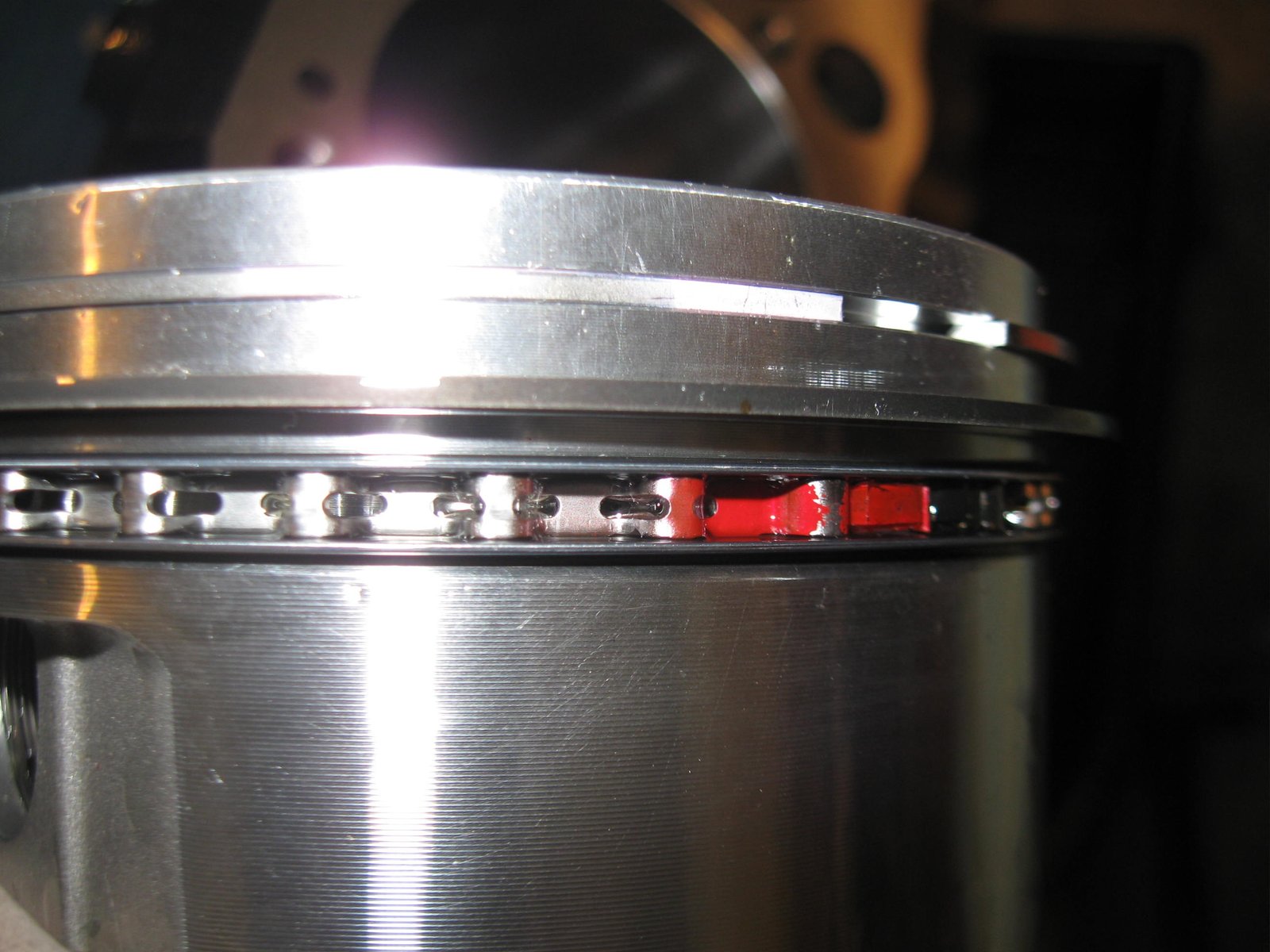

![](f02tn.jpg)
SRP piston with JE rings.
|
|

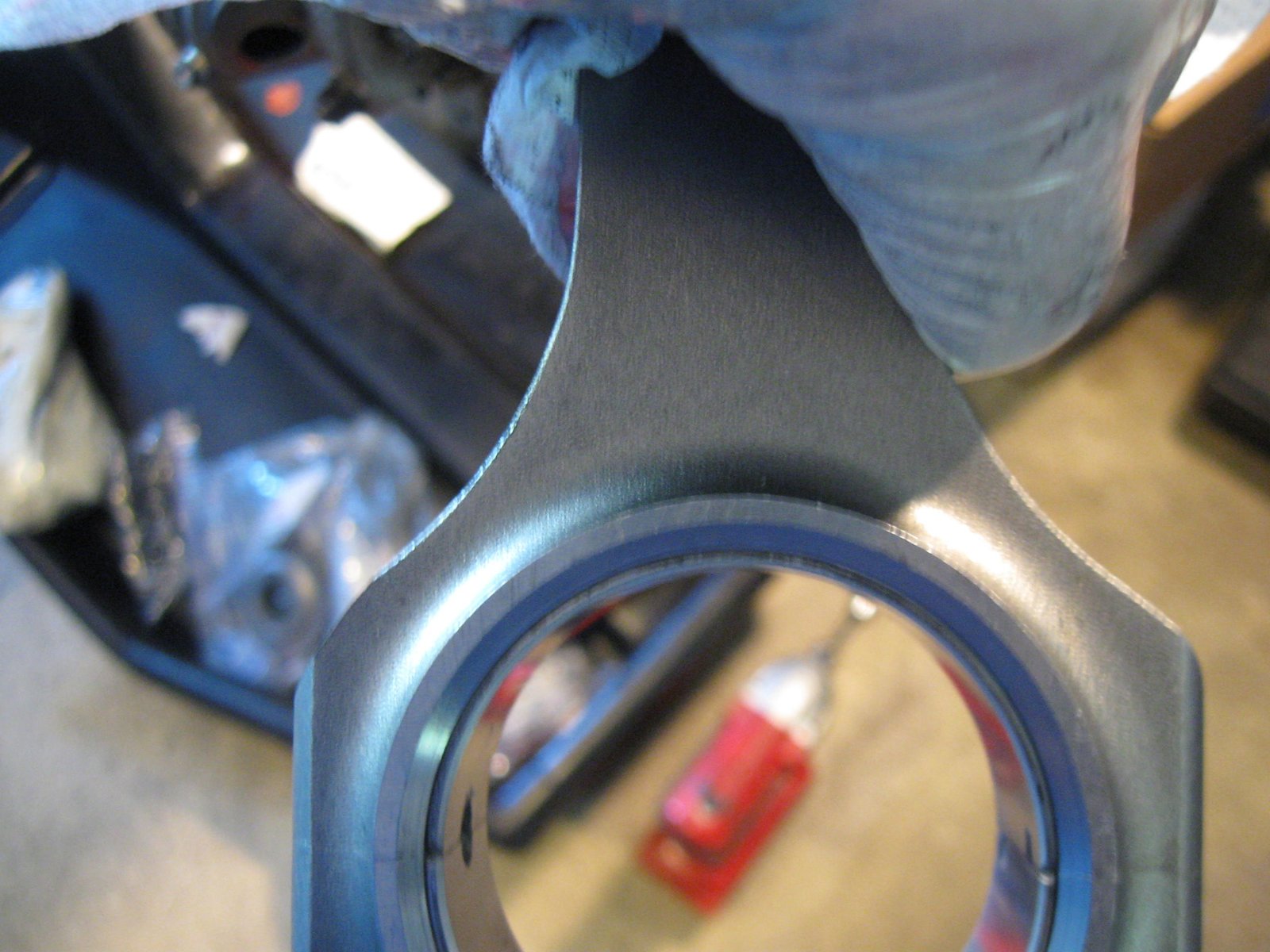

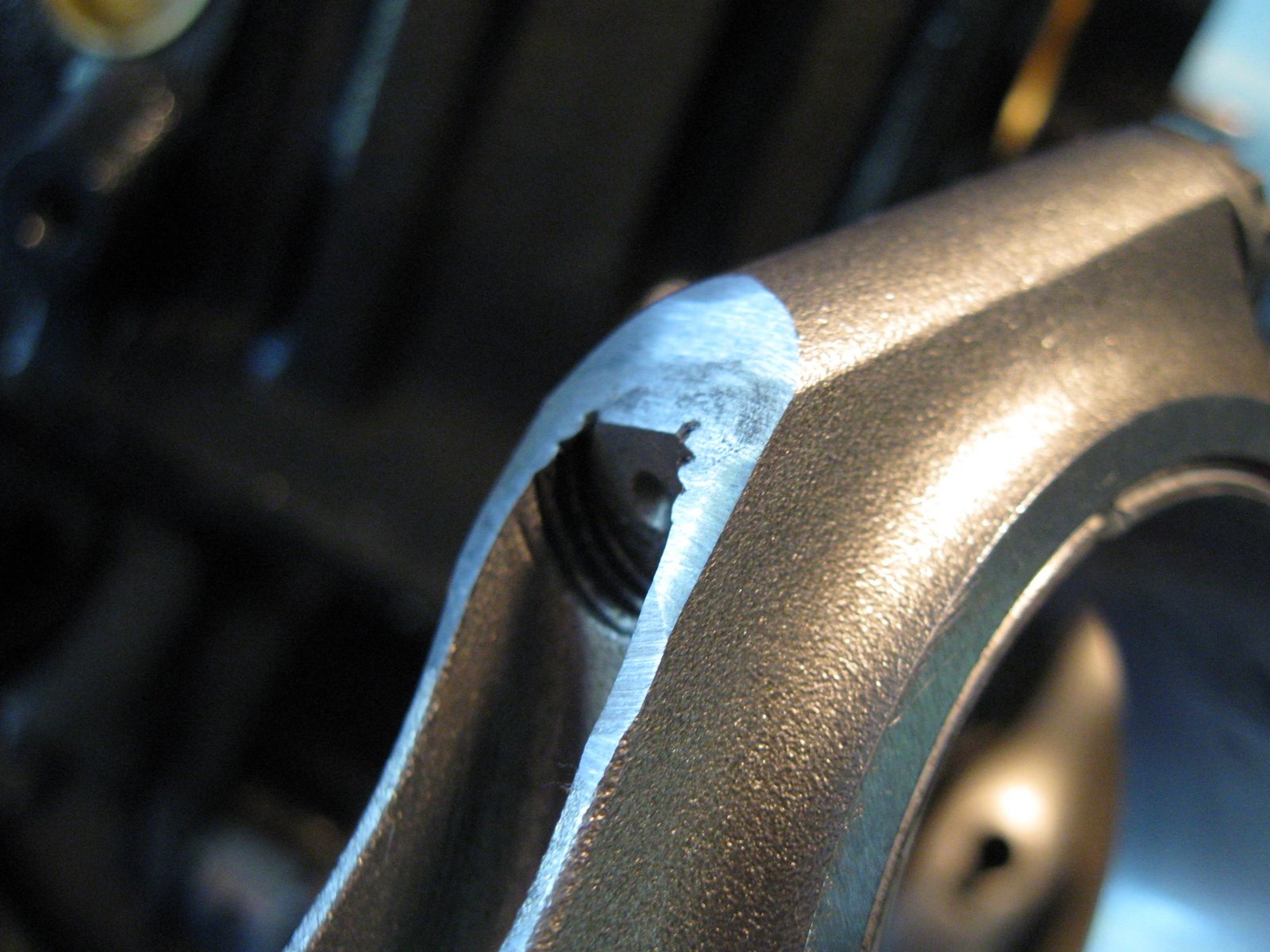

![](f07tn.jpg)
#2 and #6 rods hit the camshaft too. Here is a clear photo of
#2 and where I clearanced it for the cam.
|
![](f08tn.jpg)

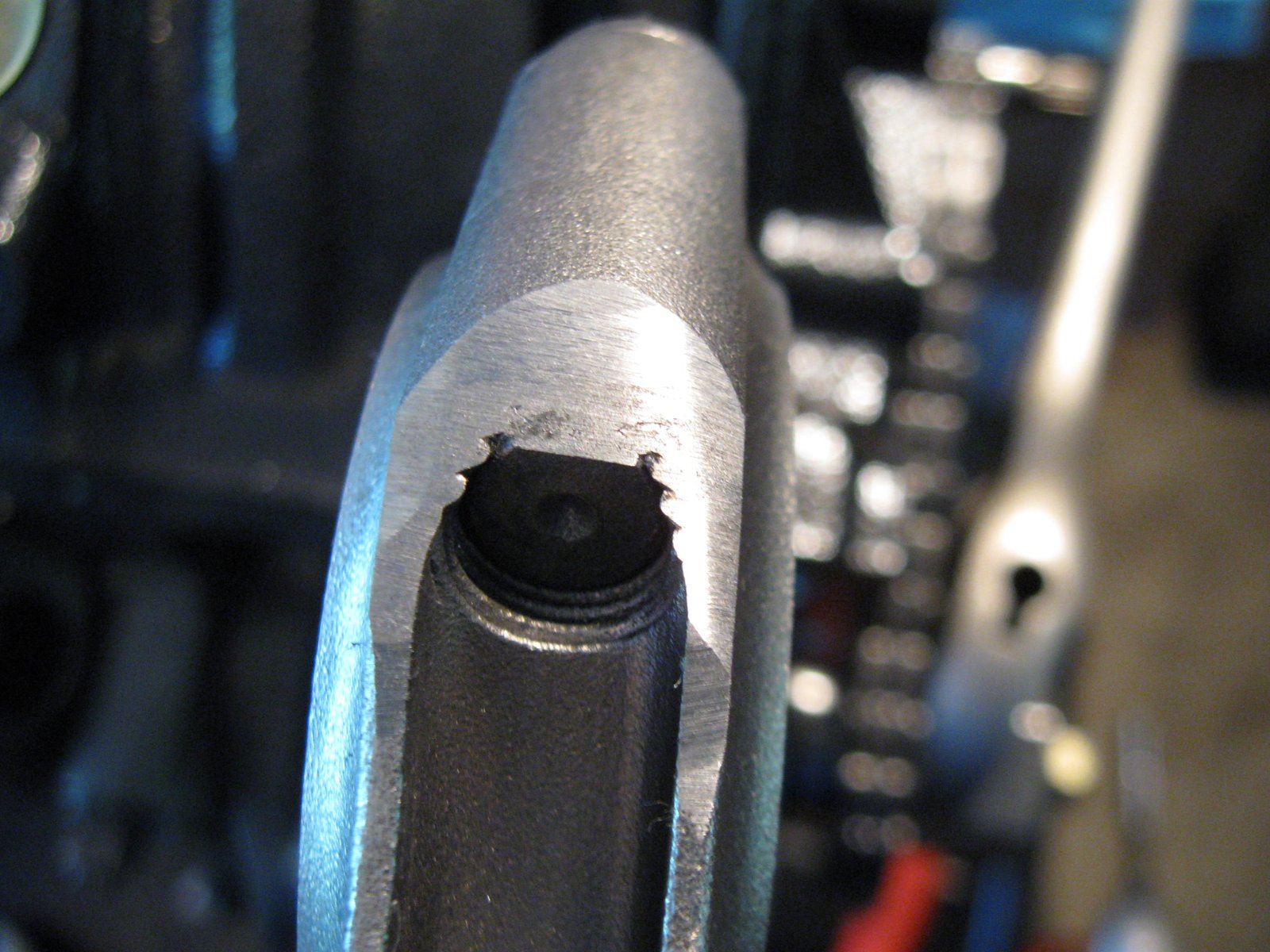

Notice the rod bolt is clearanced too. The bolt needs to be
torqued to spec prior to milling.
|
![](f09tn.jpg)
Cam clearnced on the left...no clearance on the right.
|
![](f10tn.jpg)
After installing all rods/pistons I still had a few spots where the
rods bumped the block. More clearancing needed.
|

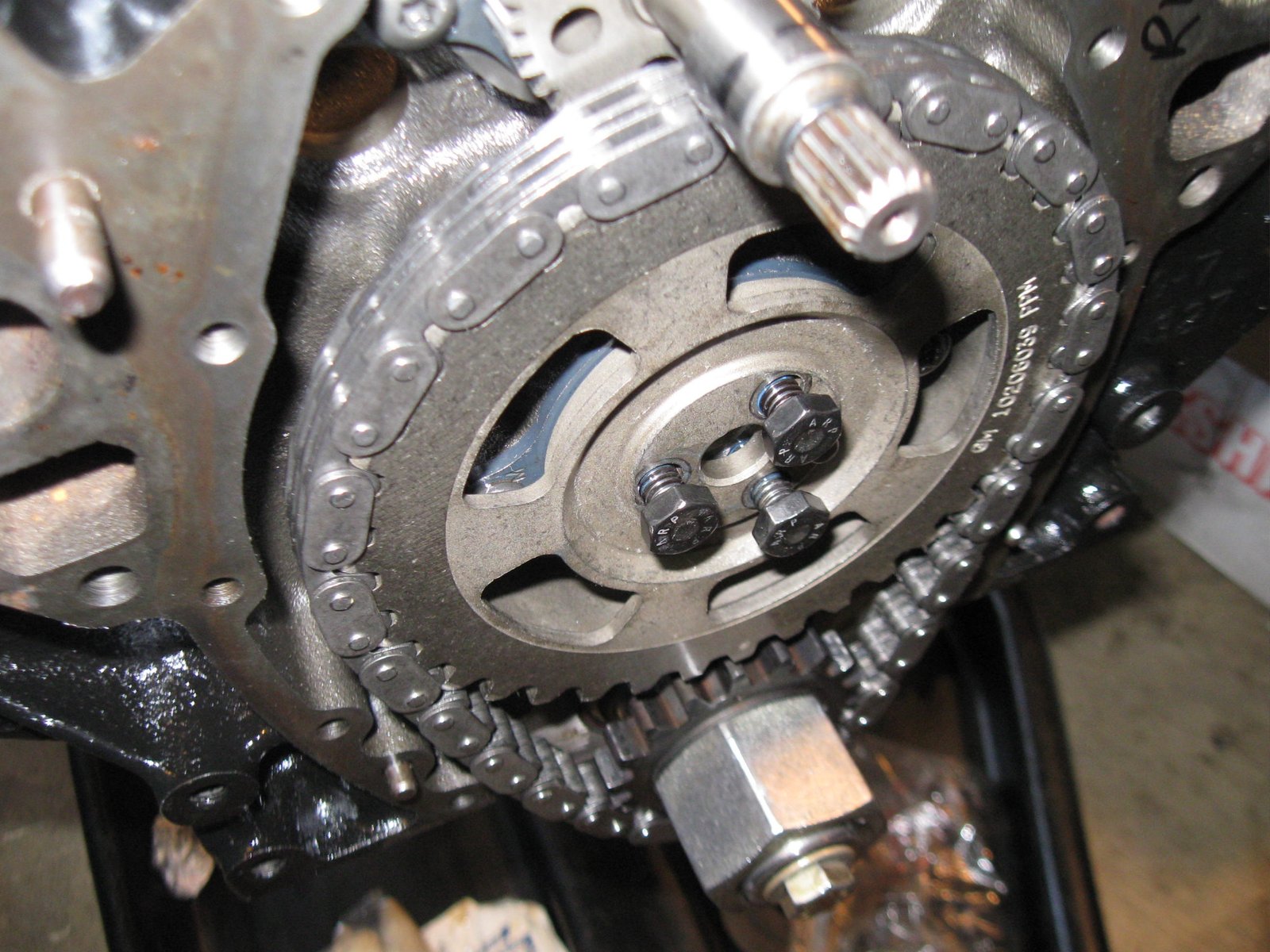

![](f15tn.jpg)
Cam and crank back in after clearancing. Camshaft bolts are
ARP with locktite.
|
![](f17tn.jpg)

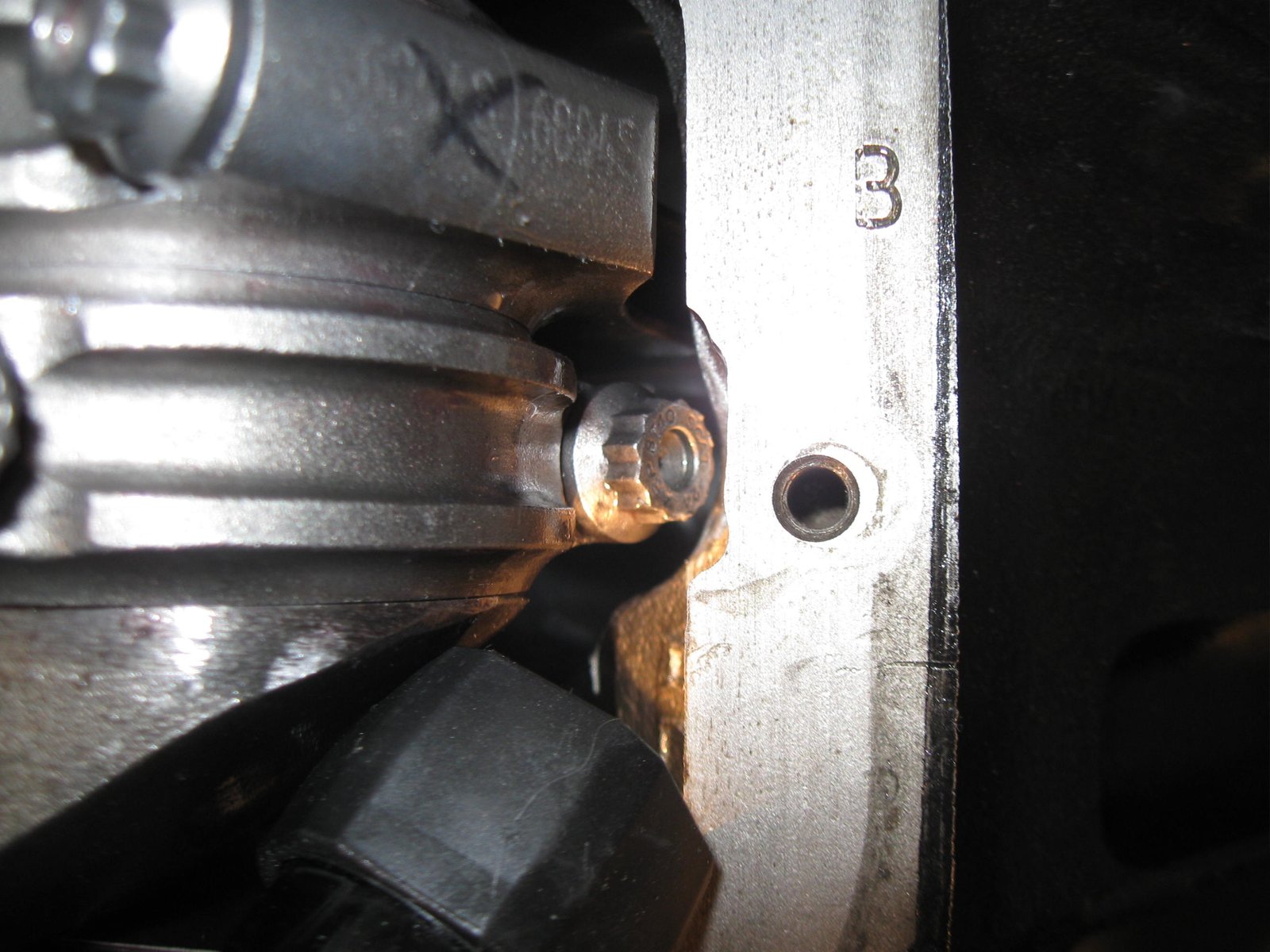

Just enough.
|

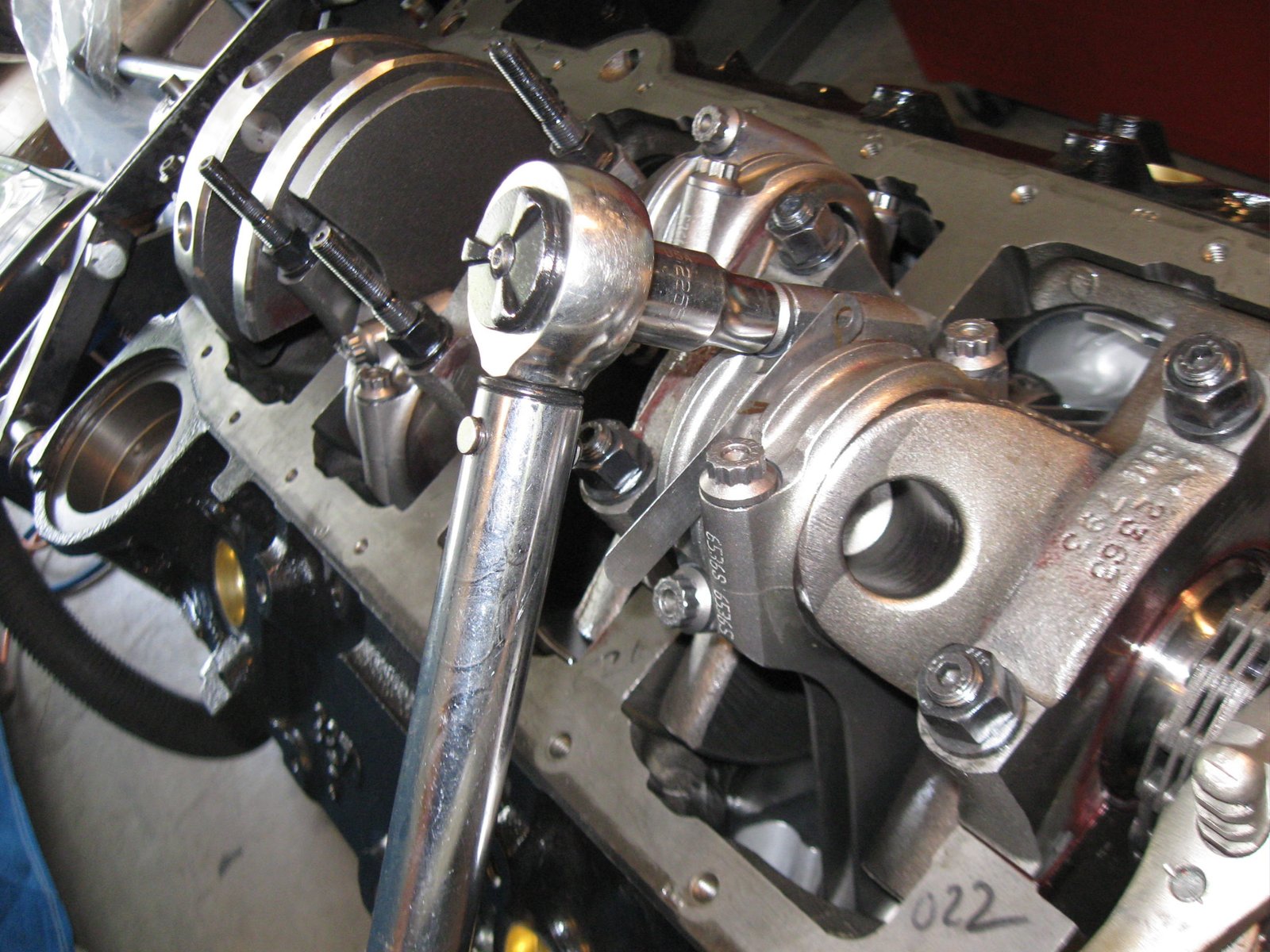

![](f18tn.jpg)
Now all rods being torqued to .005" stretch. .018"
side clearance.
|
![](f19tn.jpg)

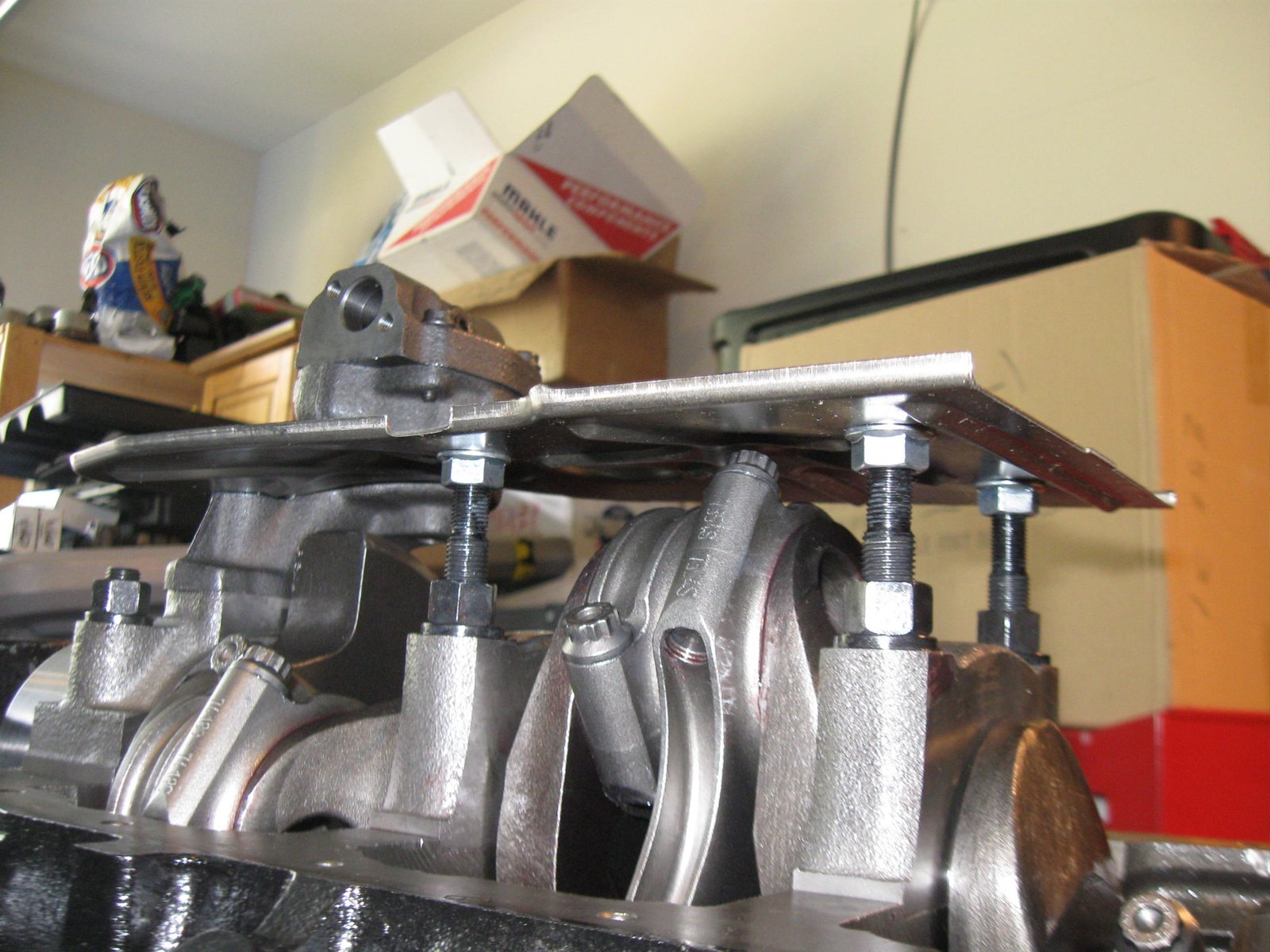

Windage tray bent up to clear #5/6 and #7/8 rods.
|
![](f21tn.jpg)
Melling 10552 oil pump and pickup.
|
![](f22tn.jpg)

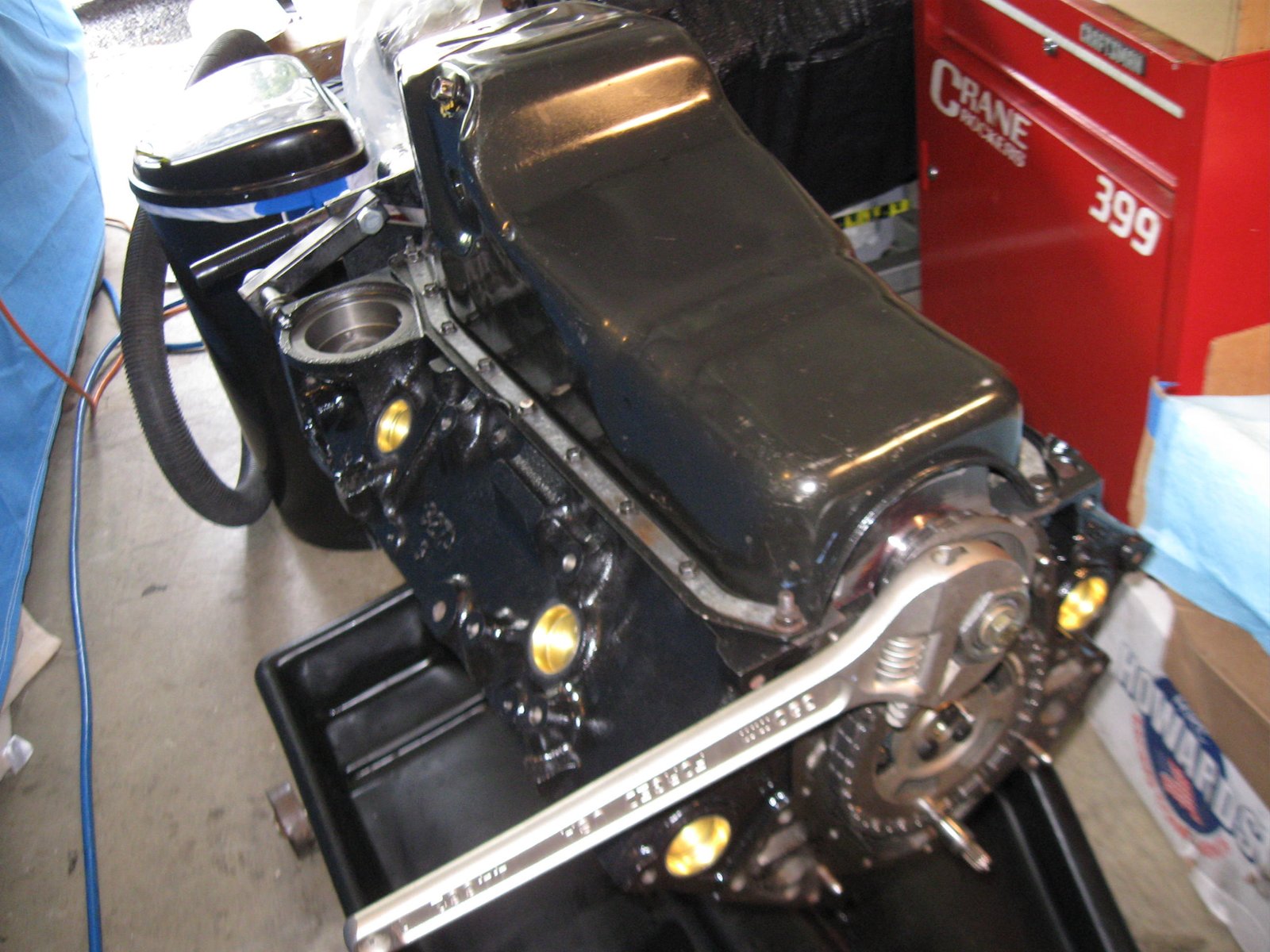

oil pan on with no gasket to check for interference.
|

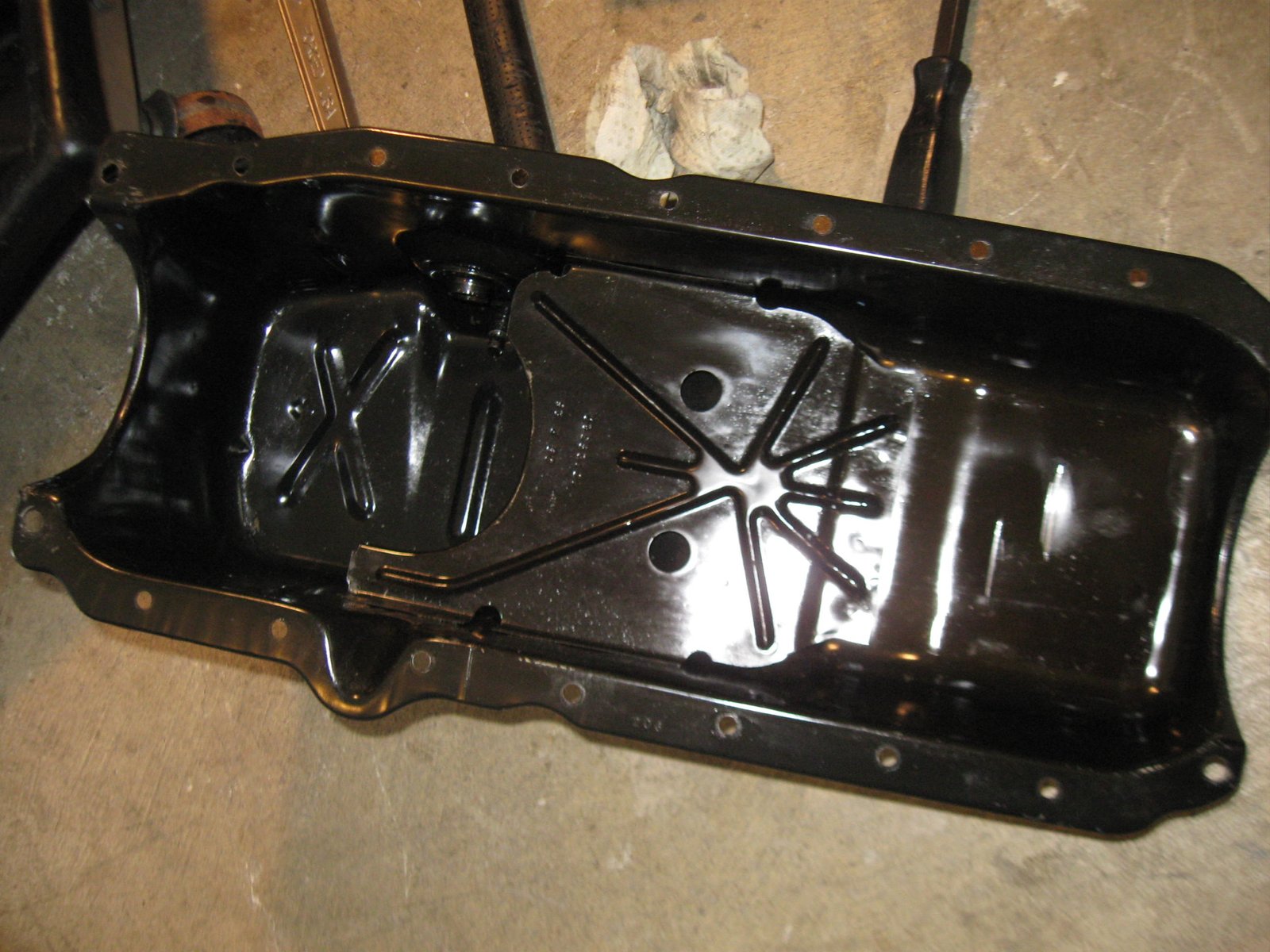

![](f23tn.jpg)
#1/2 rods bump and some spots on the side at the pan rail.
|
![](f24tn.jpg)

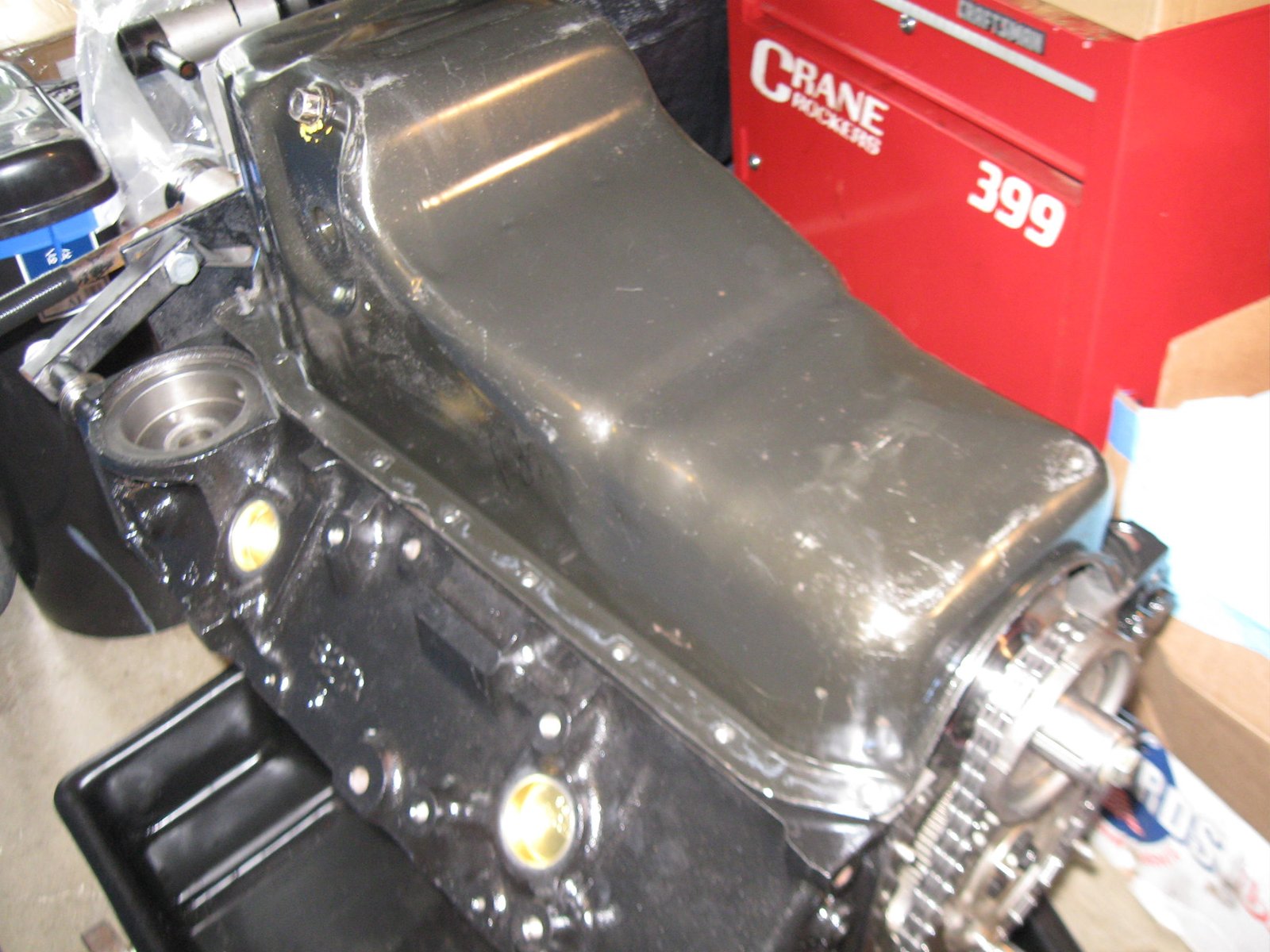

After messaging the oil pan.
|
![](f27tn.jpg)

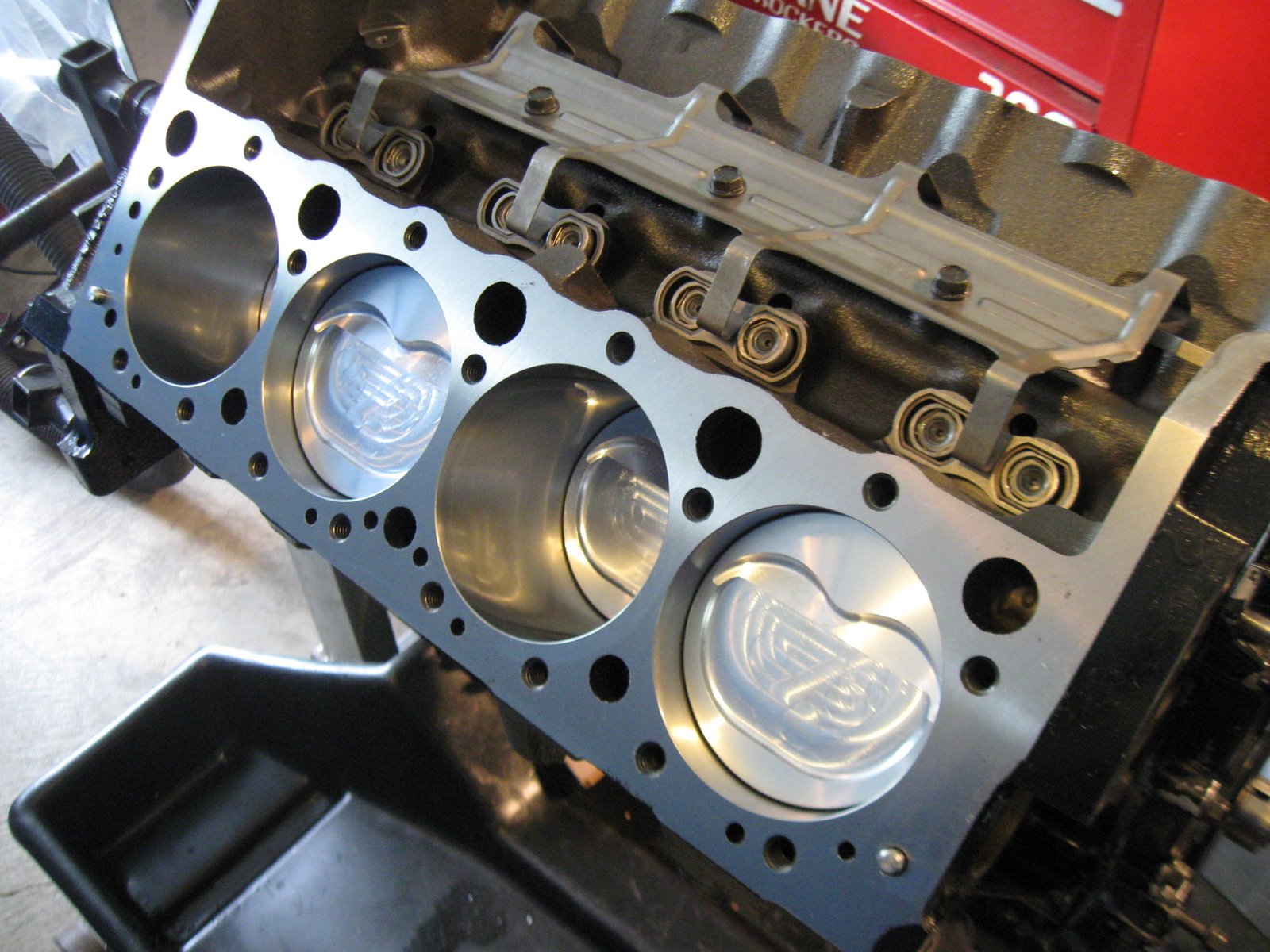

Lifters in.
|

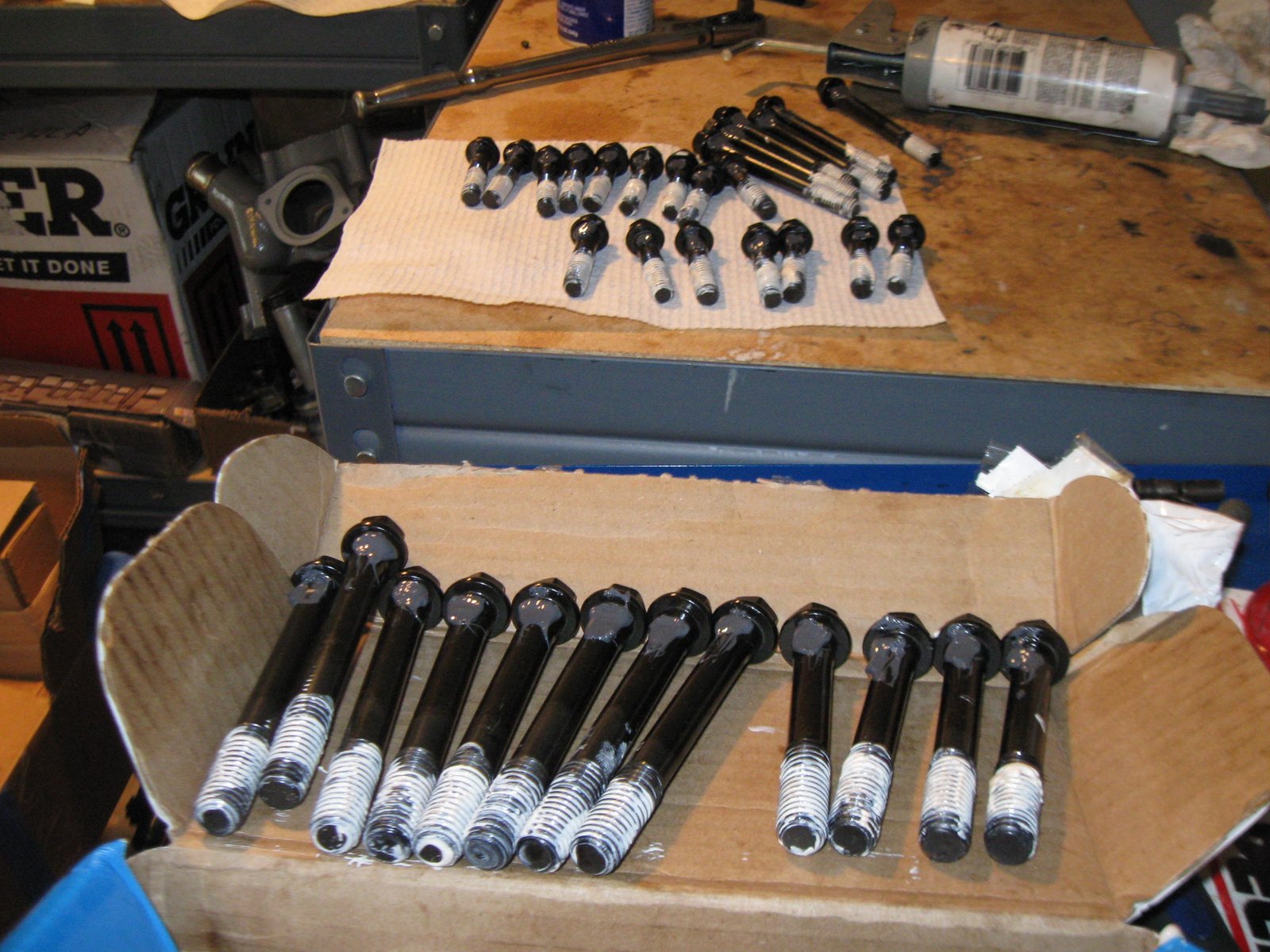

![](f28tn.jpg)
ARP head bolts cleaned and thread-sealant applied.
|
![](f30tn.jpg)

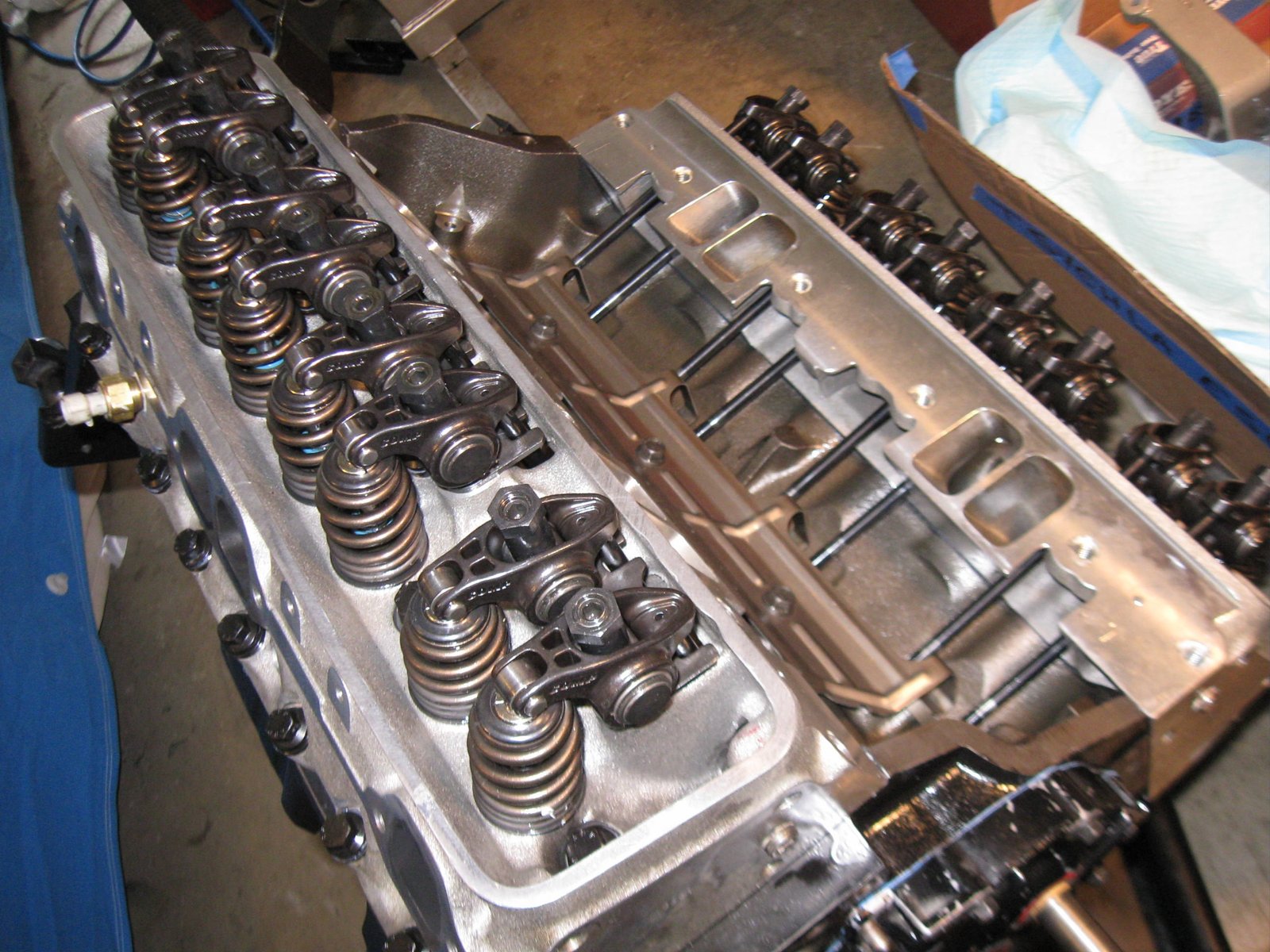

Owner supplied Ai heads, rockers, pushrods. All on and fitting
well.
|

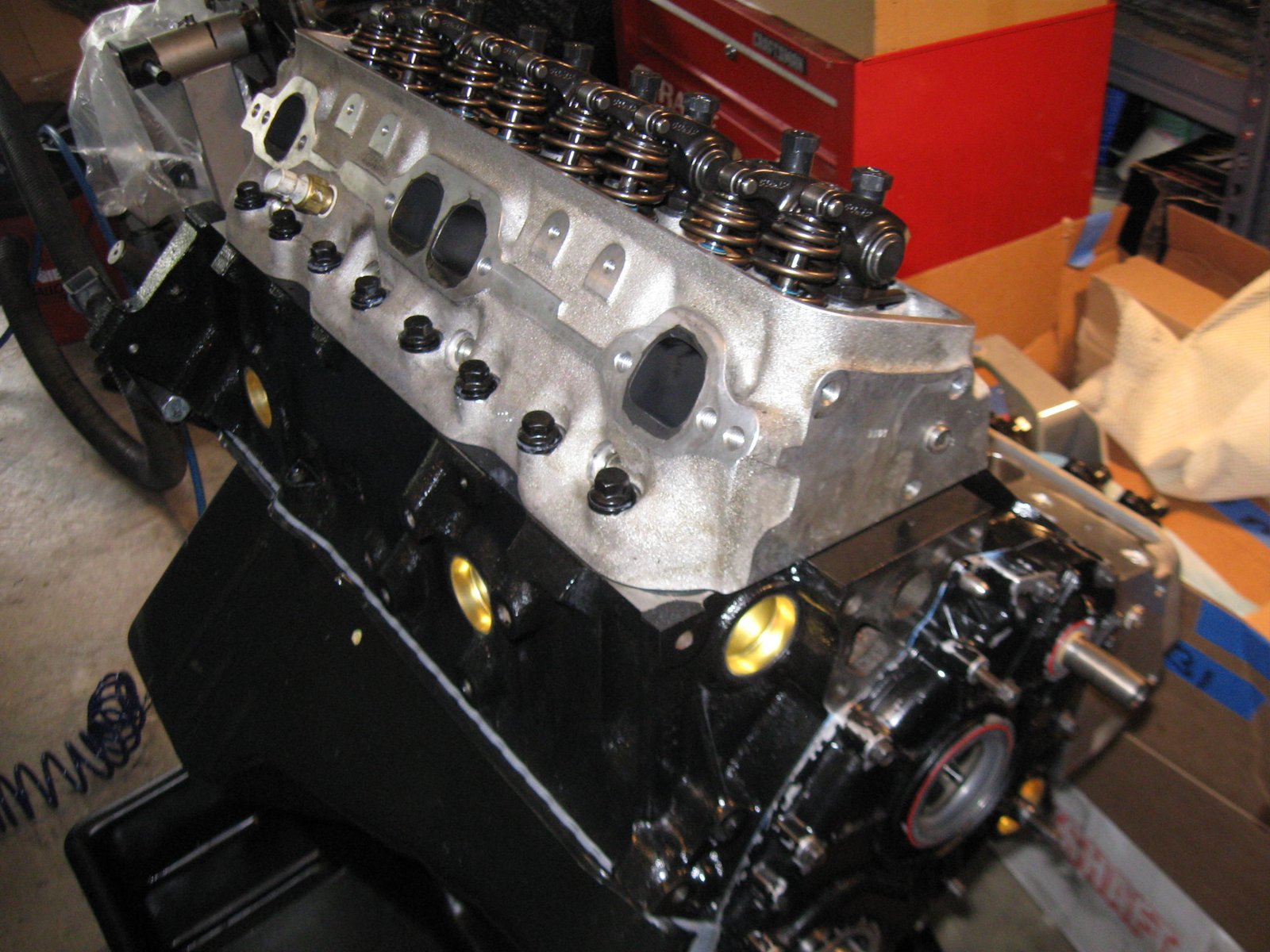

![](f31tn.jpg)
Almost ready for shipping.
|
![](3463tn.jpg)
ATI damper on. Final check of bottom.
|
![](3465tn.jpg)
Owner's supplied oil pump gear drive has a crack on the plastic tab
but it will hold very well even with the crack.
|

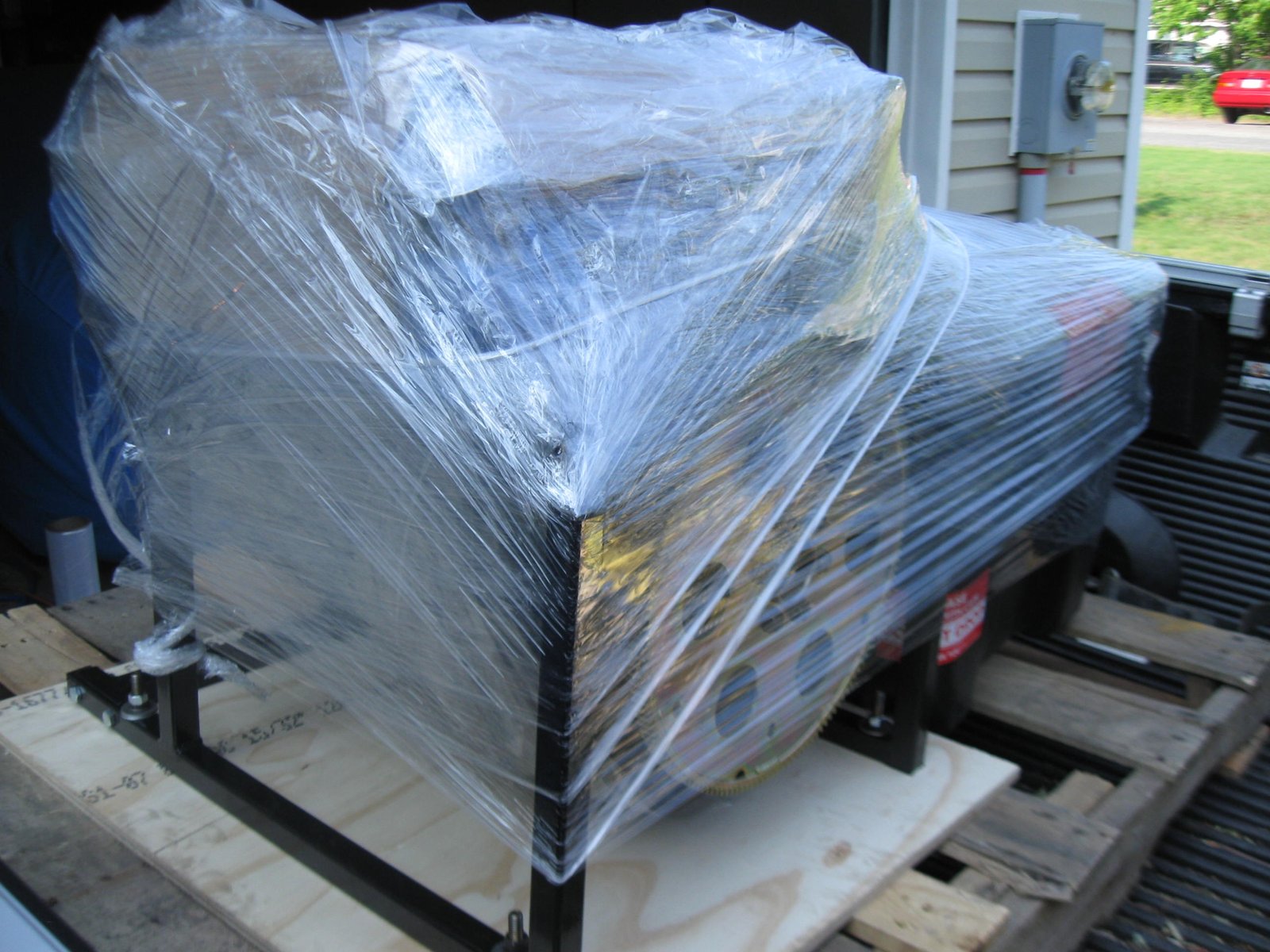

![](3466tn.jpg)
Wrapped up for shipping.
|
|
|
