The car went through a few desert sand storms, thus the dirt and
mud.
|
This looks like the Delteq Northstar set up but it's not. It's
run by a MEFI-4 with crank tone wheel.
|
|
Interesting way to make sure the water temp sender has a ground.
|
Electromotive used to make these reluctor tone wheels.
|
|
|
|
|
|
|
|

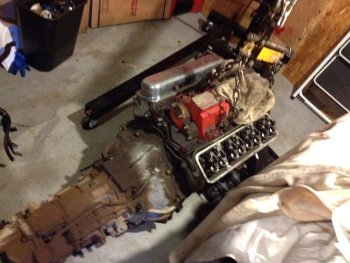

T56 tranny. BBHP #55
|
Nabil Guffey helped me remove the tranny.
|
|
This will go to "The Gear Box" in Mechanicsville Maryland
for refurbishment.
|
Brodix LT1 heads. HA!!!
|
|
The motor is very clean inside.
|
|
|
Very nice bottom.
|
Billet center main caps, Eagle 3.75" crank.
|
|
Manley rods and pistons.
|
LT4 timing set, (the small chain).
|
|
|
|
|
|

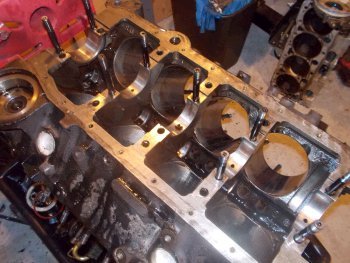

Main bearings not so good looking.
|
|
|
|
|
|
Will take the block to the machine shop for a
cylinder hone. The heads will get a check up too. |
|
Block back from machine shop with a touch up hone. Ring
scratches left as is. Should not be a problem with oil seal.
|
The scratches are at the top of #4, 6, and 8 bores.
|
|

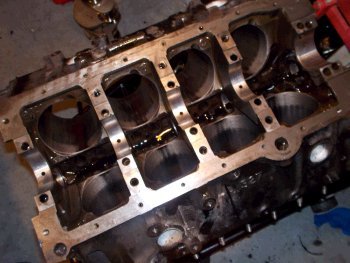

Cleaned up and ready to check main bearing clearance.
|
The crankshaft was reground and polished and also magnafluxed.
The rods and mains are now .010" under.
|
|
|

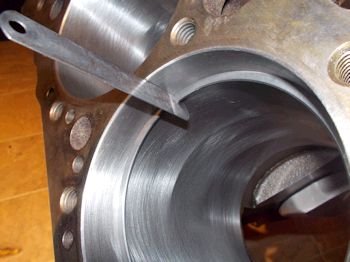

Cylinder #8 has scratches midway down the bore that should not
cause a problem.
|
|
And cylinder #6
|

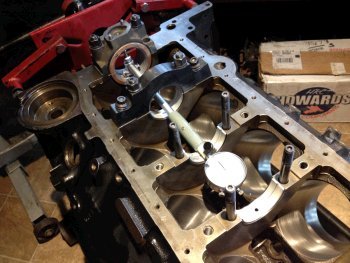

With .010" under bearings in place and the crank main
journals mic'ed...it's time to measure bearing clearance with a
bore-gauge.
|
|
.030", .025", .018", .020", .023" (5 to
1)
|
|
|
Installing camshaft bearings
|
Camshaft from Elliot's Portworks
|
|

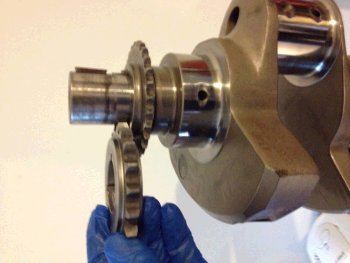

Current timing set is LT4 regular. Here is compared to LT4
extreme.
|
Eagle 3.75" stroke crankshaft
|
|
|
Thrust worked out to be .006"
|
|
Photo of oil galley plug for my records
|
Along with the crankshaft we are re-using the rods and the
Manley pistons. Just gotta clean them up and order new piston
rings.
|
|
Now measuring rod bearing clearance. Here the crank rod
journal is 2.0895"
|
.010" under Mahle rod bearings
|
|

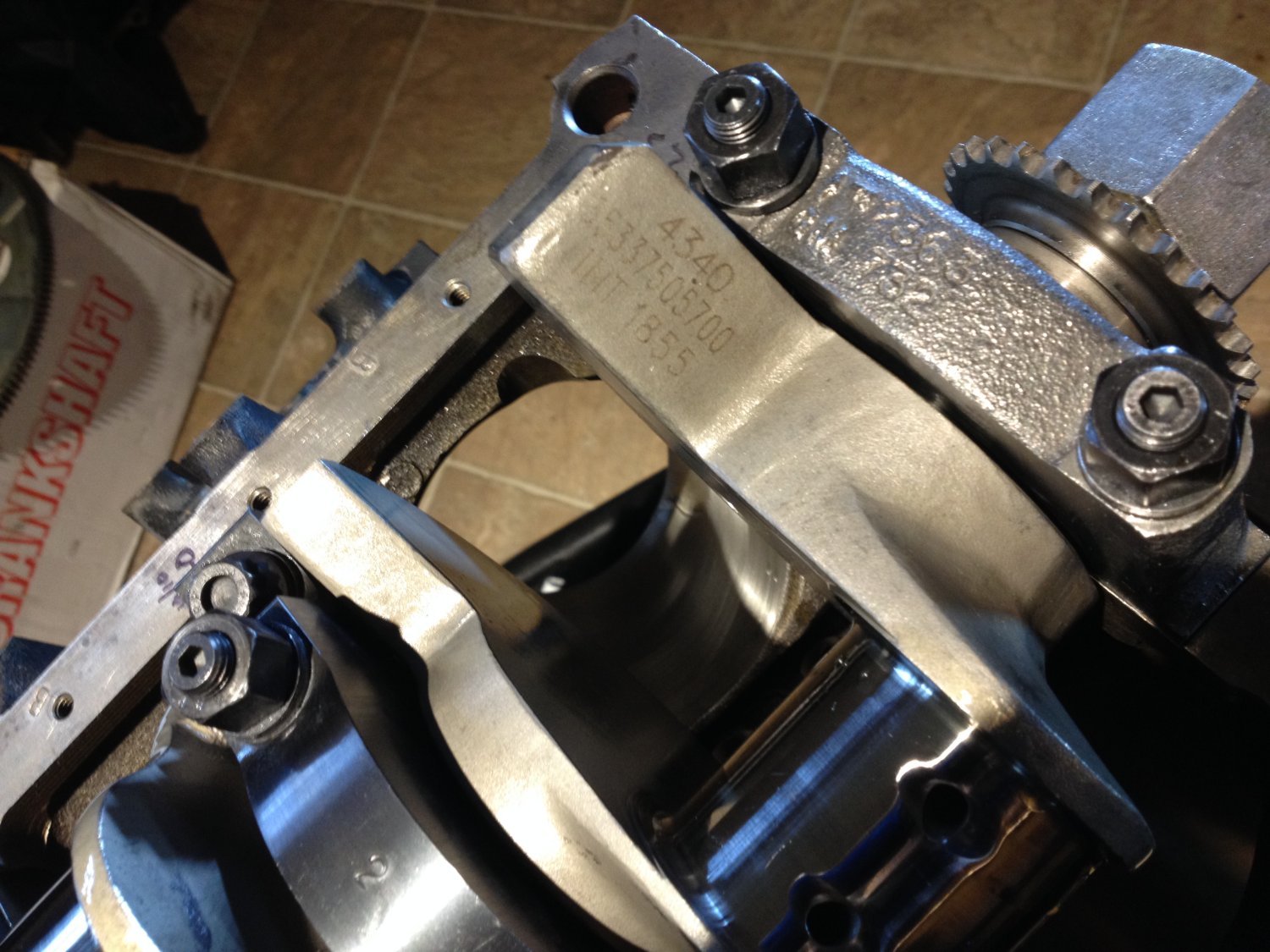

Torque the rod bolts to .004" stretch
|
Most rods measured .0022" clearance.
|
|
|
Decided to go with new pistons. These are Mahle flat top.
|
|

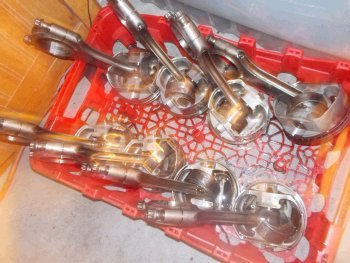

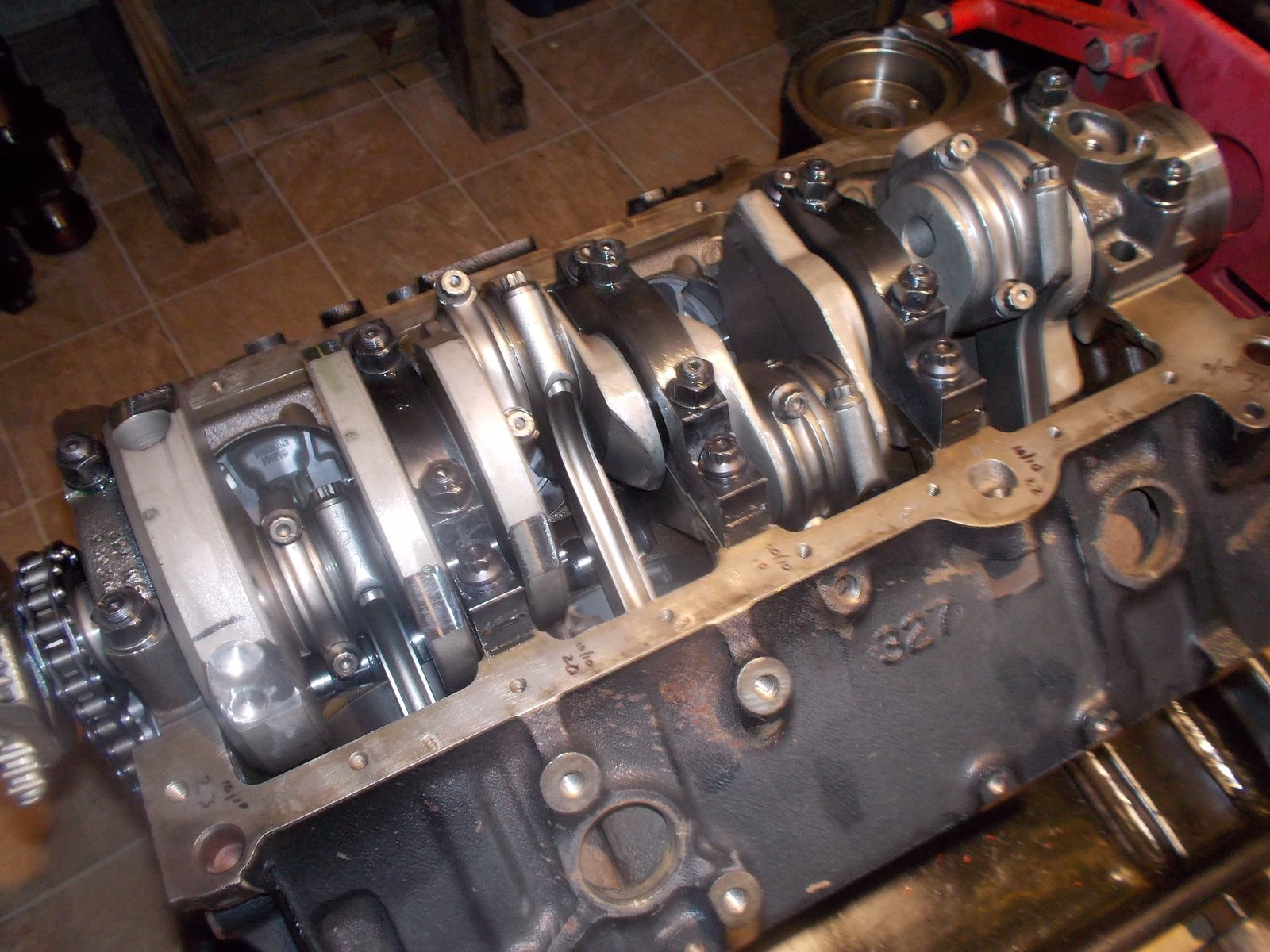

All rods/pistons assembled and now
ready for installation.
|
Now time to file fit the piston rings.
|
|
Top ring at .021 to .022" gap
|
|
|
2nd ring at the same, (.021-.022")
|
Piston to cylinder wall clearance, (.003)
|
|
|
Pistons in and they are .015" in the hole.
|
|
Verified rod bolt stretch at .004" with my torque wrench at
70ft-lb
|
|
|
|
|
|
Cam degree check. LE spec camshaft.
|
Intake centerline 107
|
|
Nice timing set.
|
Cleaned up stock 96impalaSS timing cover.
|
|
GM opti delete plug.
|
Crower hydraulic lifters.
|
|
Lifters installed.
|
Cleaning of oil pan.
|
